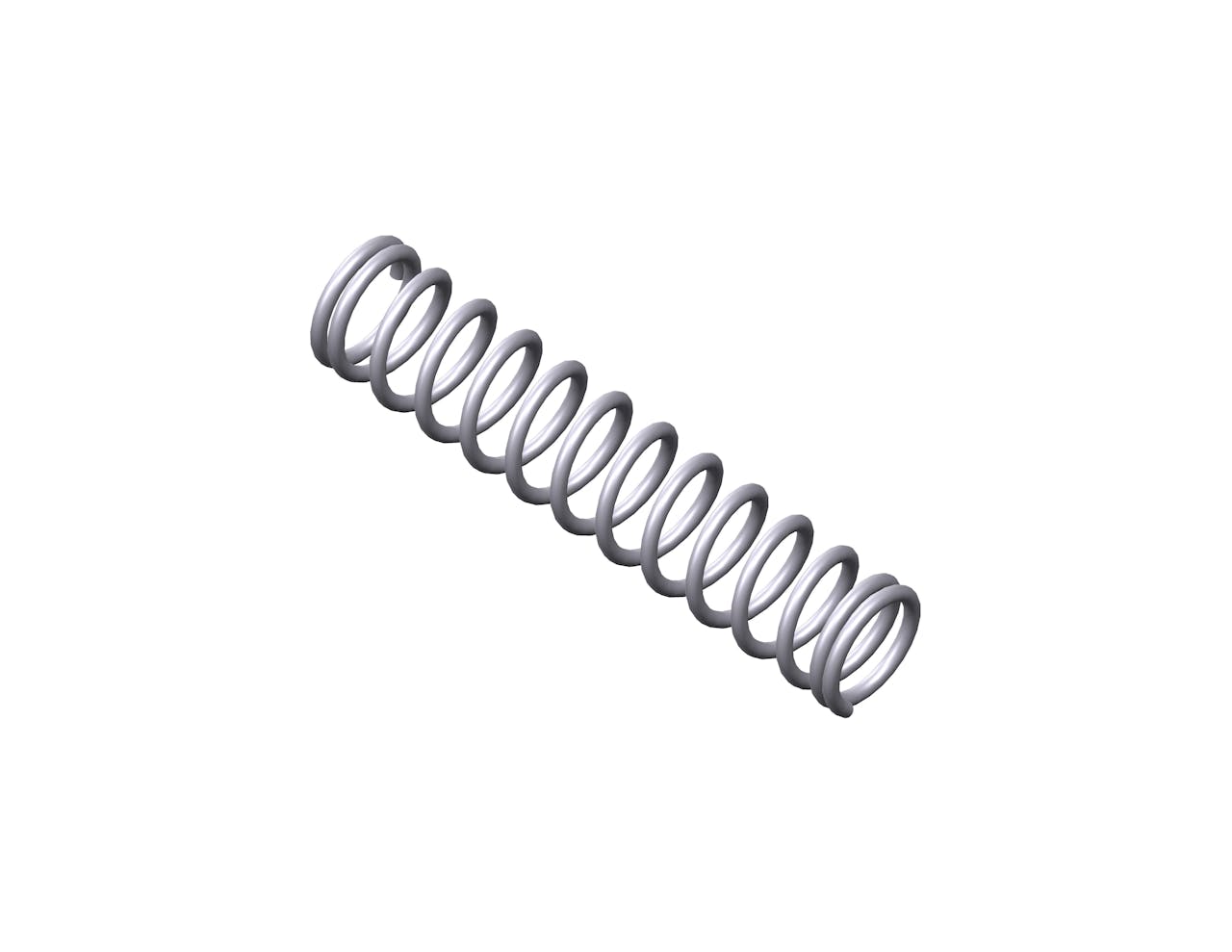

60183SCS - 0.5" 316 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 13.7 coils and closed ends. This spring features an O.D. of 0.102", and an I.D. of 0.078".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60183S
Ends Closed
Finish Passivated
Free Length 0.5 in
Inside Diameter 0.078 in
Material 316 Stainless Steel
Max Deflection 0.162 in
Max Load 0.513 lbf
Measurement Units Standard
Outside Diameter 0.102 in
Rate 3.17 lbs/in
SKU 60183SCS
Solid Length 0.176 in
Total Coils 13.7
Wire Diameter 0.012 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 60183S
Ends Closed
Finish Passivated
Free Length 12.7 mm
Inside Diameter 1.98 mm
Material 316 Stainless Steel
Max Deflection 4.11 mm
Max Load 2.28 N
Measurement Units Standard
Outside Diameter 2.59 mm
Rate 0.56 N-mm
SKU 60183SCS
Solid Length 4.47 mm
Total Coils 13.7
Wire Diameter 0.3 mm
The 60183SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.012" diameter 316 stainless steel, the 60183S spring design exhibits reliable strength across its 13.7 active coils, withstanding repeated compression cycles with a maximum load of 0.513 lbf without succumbing to fatigue.

We manufacture the 60183S design to provide a compression spring that is 0.5" long at rest and provides a consistent rate of 3.17 lbs/in along its recommended maximum of 0.162" deflection. For best results, your application should fully accommodate the inner (0.078") and outer (0.102") diameters of this spring and be designed for its closed end configuration.
