60100SCS - 0.563" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

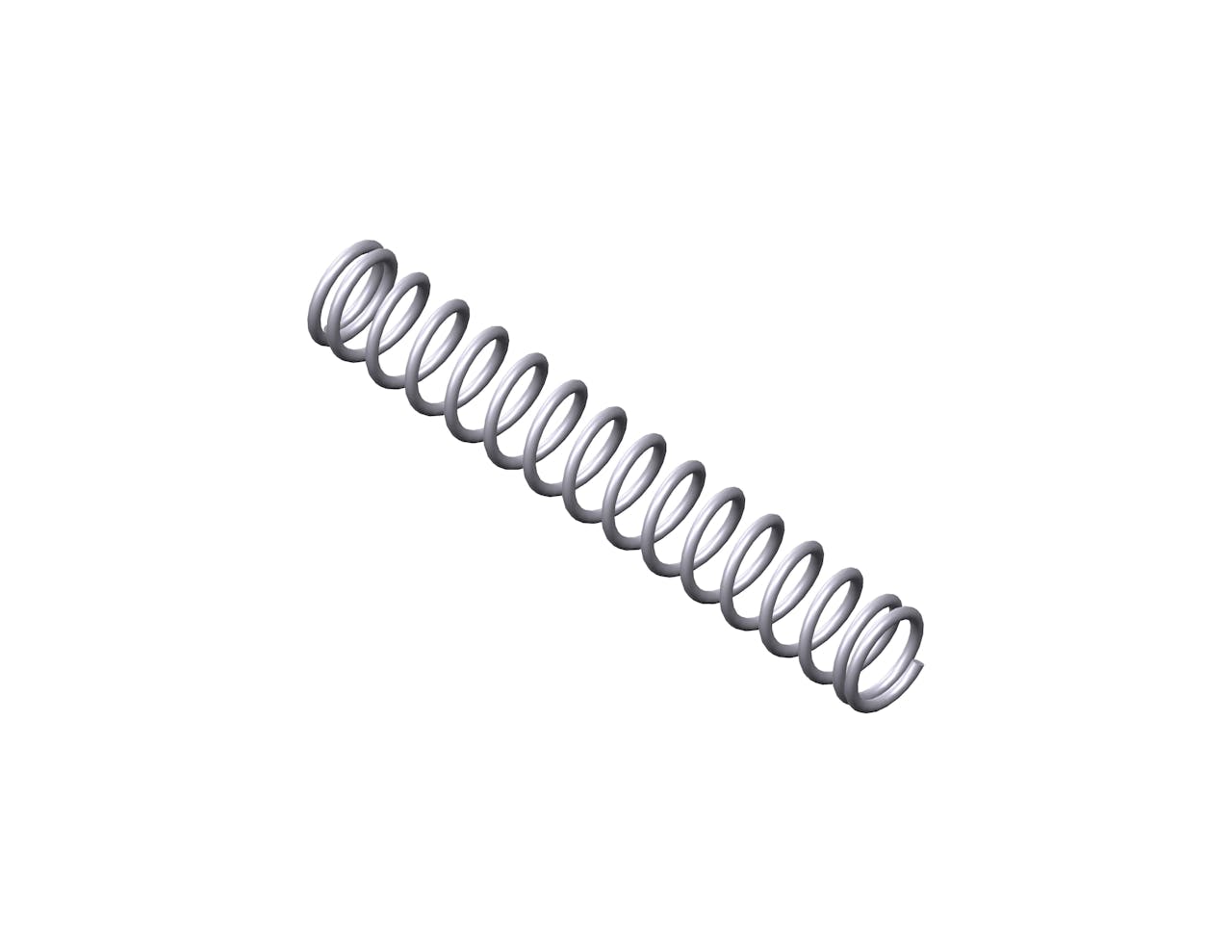

Compression spring manufactured from 316 stainless steel with 16.2 coils and closed ends. This spring features an O.D. of 0.088", and an I.D. of 0.068".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60100S
Ends Closed
Finish Passivated
Free Length 0.563 in
Inside Diameter 0.068 in
Material 316 Stainless Steel
Outside Diameter 0.088 in
Part Type Standard
Rate 1.83 lbs/in
SKU 60100SCS
Solid Length 0.172 in
Suggested Max Deflection 0.189 in
Suggested Max Load 0.346 lbf
Total Coils 16.2
Wire Diameter 0.01 in
The compression spring 60100SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 60100S compression spring design exhibits exceptional tensile strength and resilience.

The 60100S design is manufactured with a free length of 0.563", with an outer diameter of 0.088", an inner diameter of 0.068", and a total of 16.2 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.83 lbs/in.

The 60100SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 60100S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
