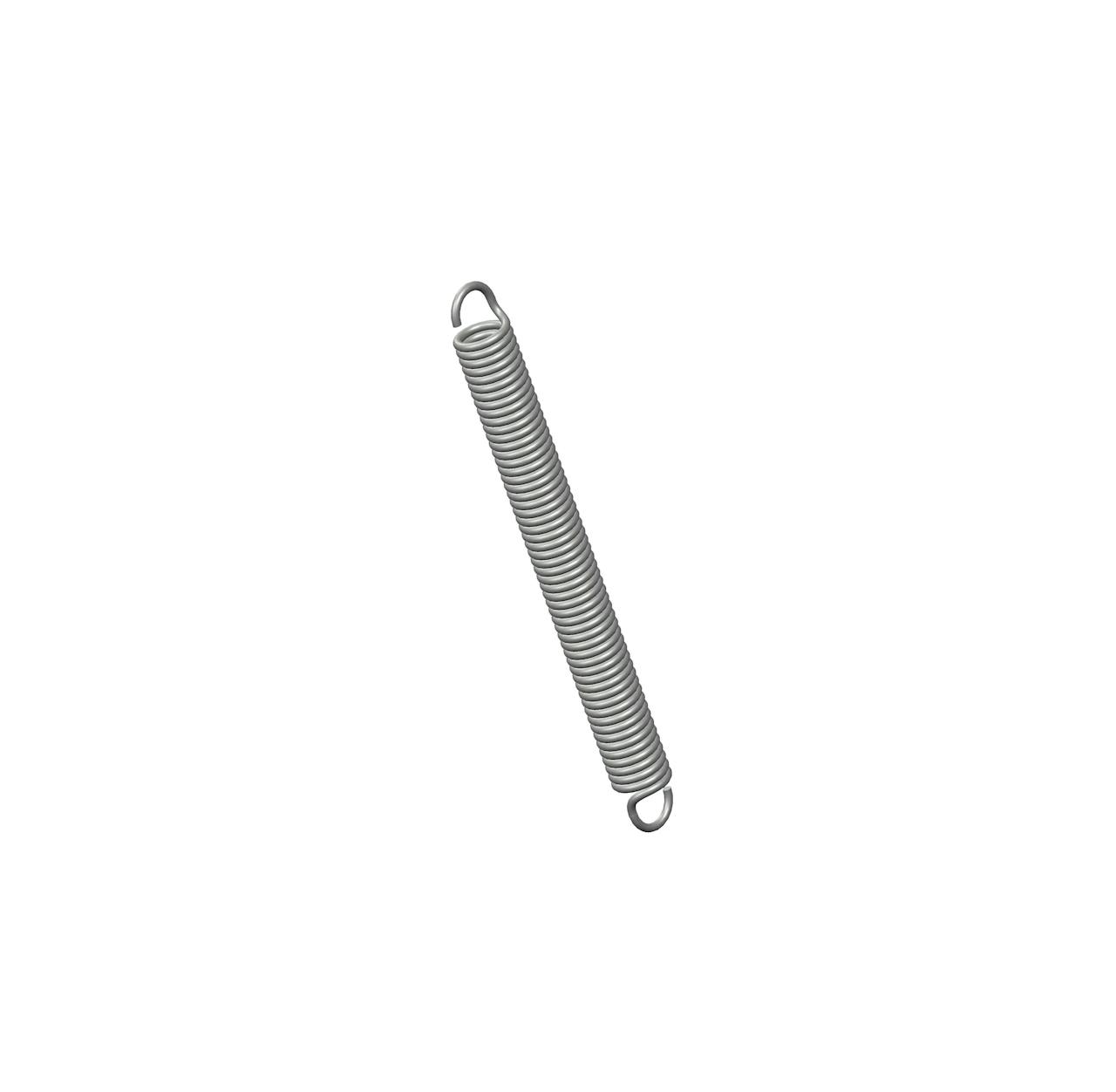

600CS - 9 Inch High Carbon Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in High Carbon Steel. This spring features an O.D. of 0.875 Inch and an initial tension of 24.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 600
Ends Machine Hook
Finish Zinc
Initial Tension 24.6 lb
Length 9 in
Material High Carbon Steel
Outside Diameter 0.875 in
Part Type Standard
Rate 20 lbs/in
SKU 600CS
Sugg Max Deflection 3.2 in
Sugg Max Load 87 lbf
Wire Diameter 0.135 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 600
Ends Machine Hook
Finish Zinc
Initial Tension 11.16 kg
Length 228.6 mm
Material High Carbon Steel
Outside Diameter 22.23 mm
Part Type Standard
Rate 3.5 N/mm
SKU 600CS
Sugg Max Deflection 81.28 mm
Sugg Max Load 386.98 N
Wire Diameter 3.43 mm
