Century Spring

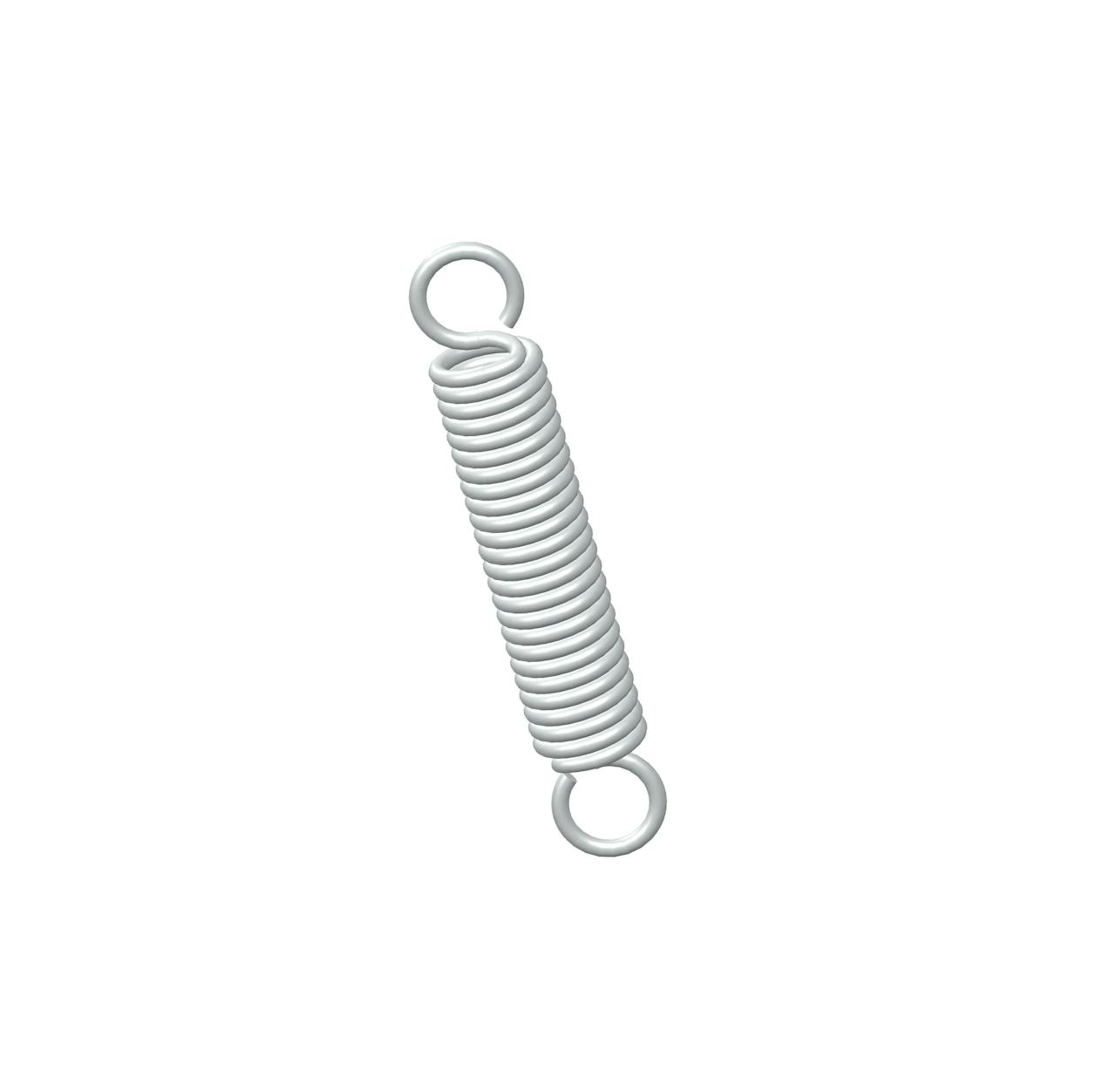

6001CS - 2 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 6001
Ends Full Loop
Finish None
Initial Tension 4 lb
Length 2 in
Material 302/304 Stainless Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 14 lbs/in
SKU 6001CS
Sugg Max Deflection 0.83 in
Sugg Max Load 15 lbf
Wind Direction Left
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 6001
Ends Full Loop
Finish None
Initial Tension 1.81 kg
Length 50.8 mm
Material 302/304 Stainless Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 2.45 N/mm
SKU 6001CS
Sugg Max Deflection 21.08 mm
Sugg Max Load 66.72 N
Wind Direction Left
Wire Diameter 1.4 mm
