Century Spring

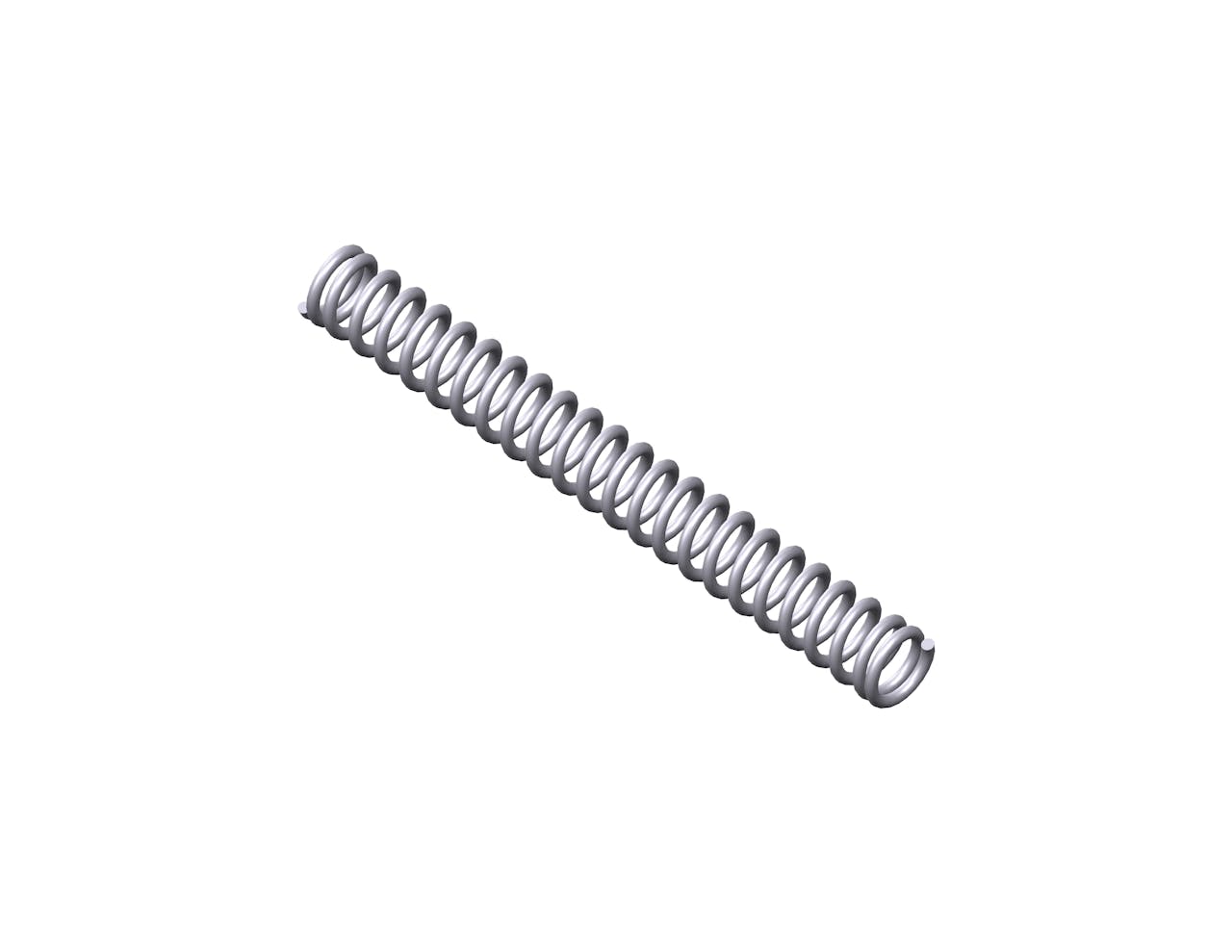

60006SCS - 0.35" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 24.5 coils and closed ends. This spring features an O.D. of 0.04", and an I.D. of 0.028".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60006S
Ends Closed
Finish Passivated
Free Length 0.35 in
Inside Diameter 0.028 in
Material 316 Stainless Steel
Outside Diameter 0.04 in
Part Type Standard
Rate 1.83 lbs/in
SKU 60006SCS
Solid Length 0.153 in
Suggested Max Deflection 0.089 in
Suggested Max Load 0.162 lbf
Total Coils 24.5
Wire Diameter 0.006 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 60006S
Ends Closed
Finish Passivated
Free Length 8.89 mm
Inside Diameter 0.71 mm
Material 316 Stainless Steel
Outside Diameter 1.02 mm
Part Type Standard
Rate 0.32 N/mm
SKU 60006SCS
Solid Length 3.89 mm
Suggested Max Deflection 2.26 mm
Suggested Max Load 0.72 N
Total Coils 24.5
Wire Diameter 0.15 mm
The 60006SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.006" diameter 316 stainless steel, the 60006S spring design exhibits reliable strength across its 24.5 active coils, withstanding repeated compression cycles with a maximum load of 0.162 lbf without succumbing to fatigue.

We manufacture the 60006S design to provide a compression spring that is 0.35" long at rest and provides a consistent rate of 1.83 lbs/in along its recommended maximum of 0.089" deflection. For best results, your application should fully accommodate the inner (0.028") and outer (0.04") diameters of this spring and be designed for its closed end configuration.
