Century Spring

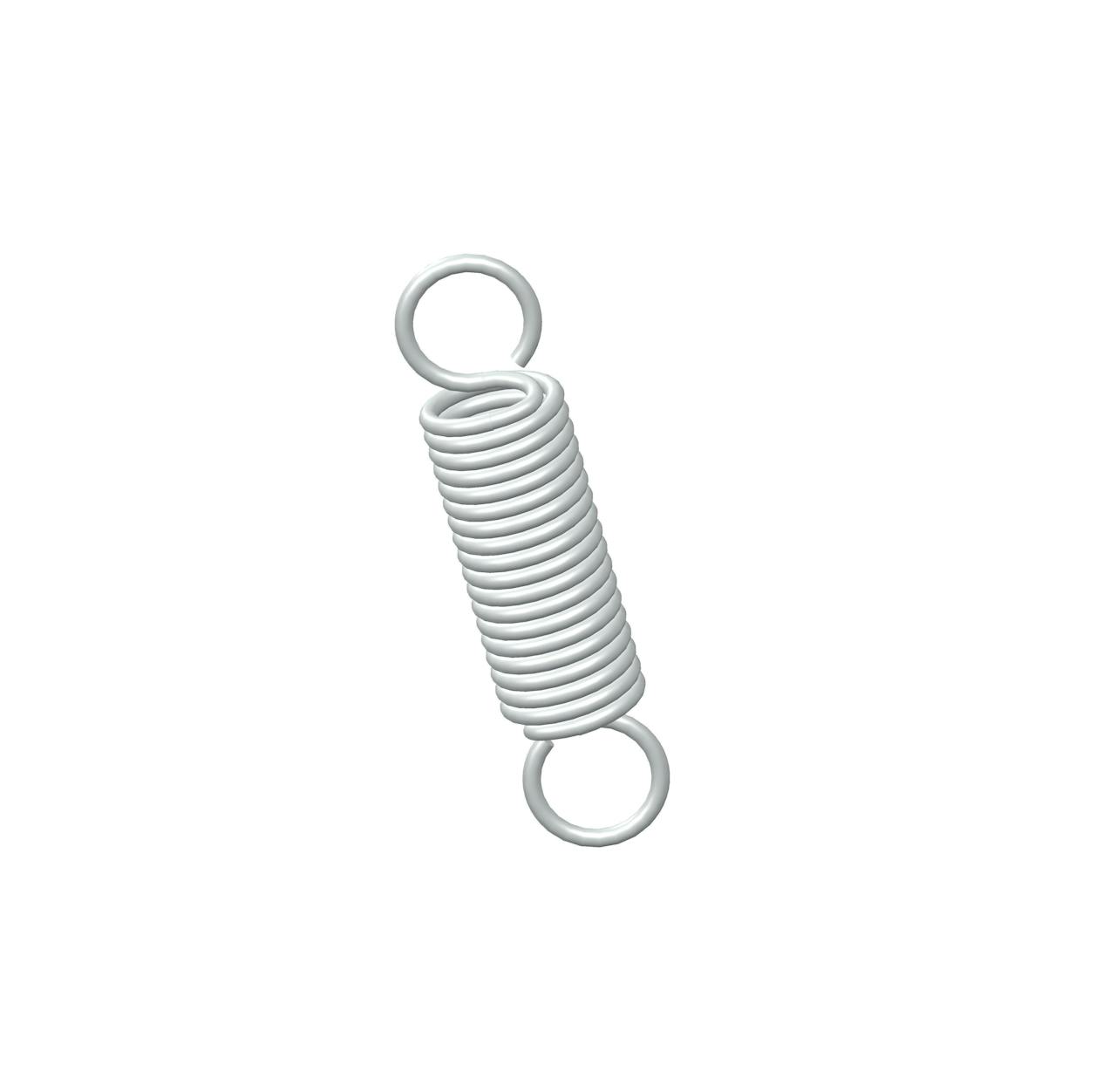

5994CS - 1.5 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5994
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 1.5 in
Material 302/304 Stainless Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 6.8 lbs/in
SKU 5994CS
Sugg Max Deflection 1 in
Sugg Max Load 8.7 lbf
Wind Direction Left
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5994
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 38.1 mm
Material 302/304 Stainless Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 1.19 N/mm
SKU 5994CS
Sugg Max Deflection 25.4 mm
Sugg Max Load 38.7 N
Wind Direction Left
Wire Diameter 1.14 mm
