Shop Online > Springs > Extension > Regular

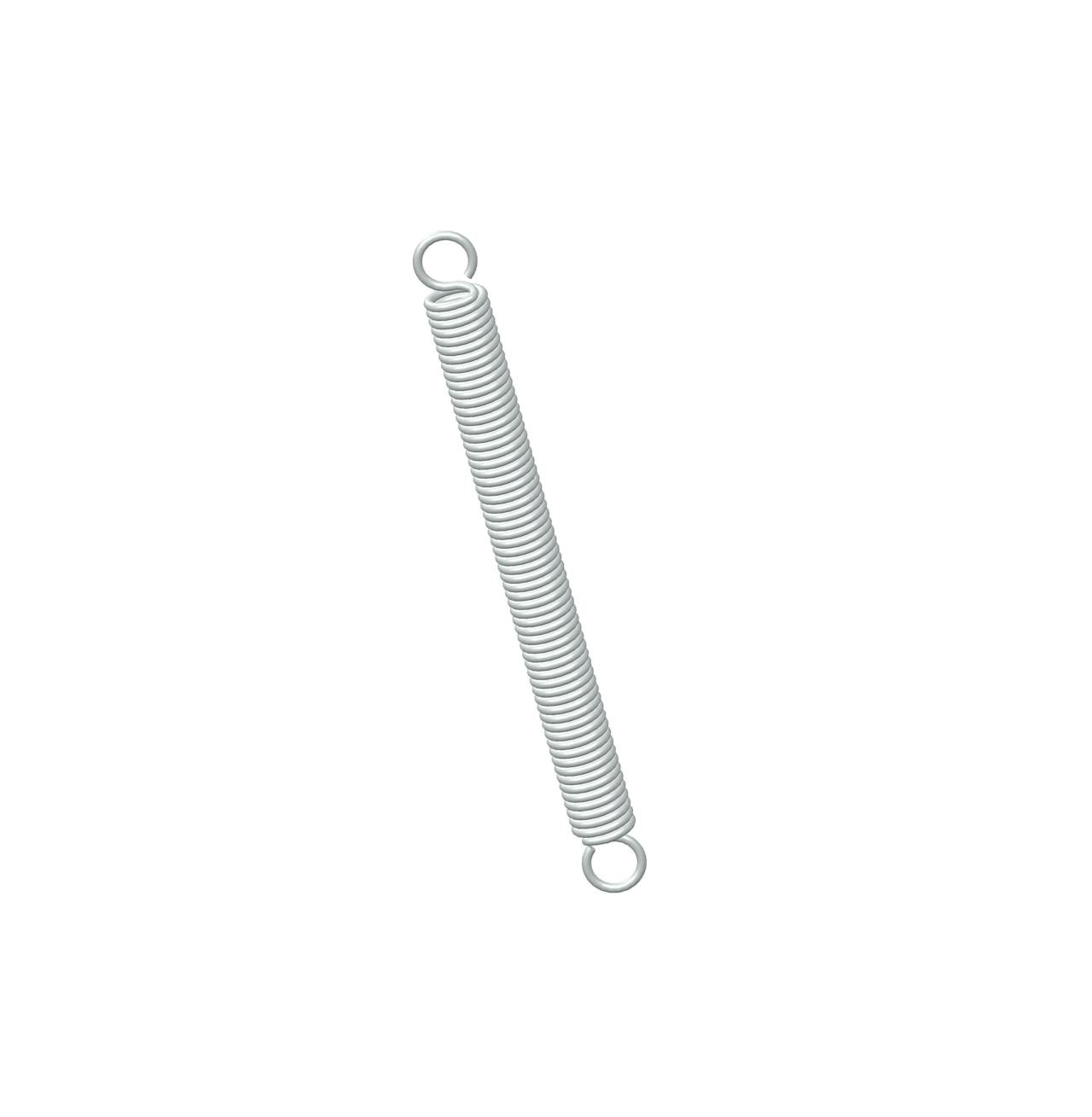

5968CS - 2.75 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 2 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 5968 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 2 lb |
| Length | 2.75 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 3.7 lbs/in |
| SKU | 5968CS |
| Sugg Max Deflection | 1.5 in |
| Sugg Max Load | 7 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.037 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 5968 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.91 kg |
| Length | 69.85 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 0.65 N/mm |
| SKU | 5968CS |
| Sugg Max Deflection | 38.1 mm |
| Sugg Max Load | 31.14 N |
| Wind Direction | Left |
| Wire Diameter | 0.94 mm |
