Accurate Screw Machine

596 - M5 x 0.8 Thread Spring-Loaded Captive Panel Fasteners

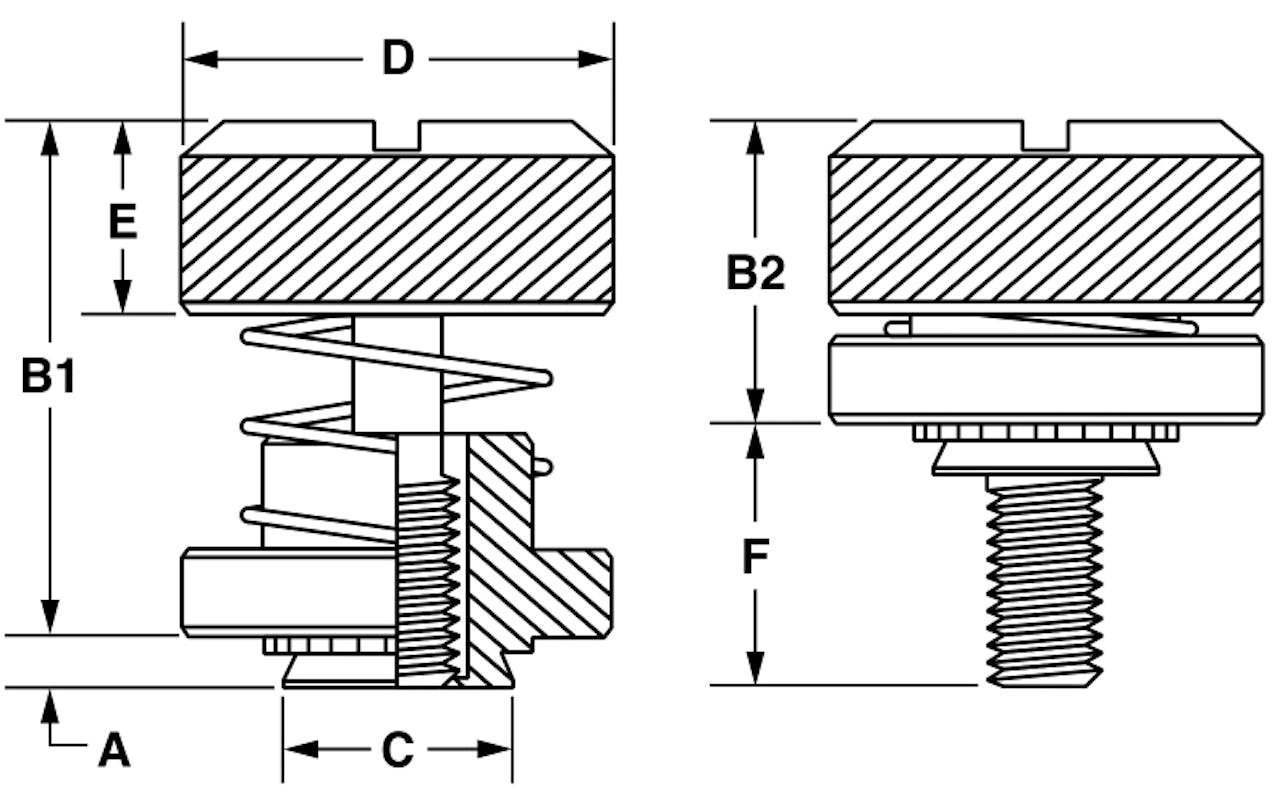

M5 x 0.8 low profile spring-loaded captive panel fastener manufactured for applications with a sheet thickness of 1.5 Millimeter.

Unit System
Specs (in standard)
Label Value
B1
(Nom) 		0.6051 in
B2
(Max) 		0.335 in
Brand Accurate Screw
C
(Max) 		0.3142 in
Display Name 596
F
(+/- .015) 		0.3 in
Head Diameter (D)
(+/- .010) 		0.5299 in
Head Height (E)
(+/- .005) 		0.2201 in
Measurement Units Metric
Shank Length (A)
(Max) 		0.0583 in
Sheet Thickness
(Min) 		0.0591 in
Thread Size M5 x 0.8
Specs (in metric)
Label Value
B1
(Nom) 		15.37 mm
B2
(Max) 		8.51 mm
Brand Accurate Screw
C
(Max) 		7.98 mm
Display Name 596
F
(+/- .015) 		7.62 mm
Head Diameter (D)
(+/- .010) 		13.46 mm
Head Height (E)
(+/- .005) 		5.59 mm
Measurement Units Metric
Shank Length (A)
(Max) 		1.48 mm
Sheet Thickness
(Min) 		1.5 mm
Thread Size M5 x 0.8
