Century Spring

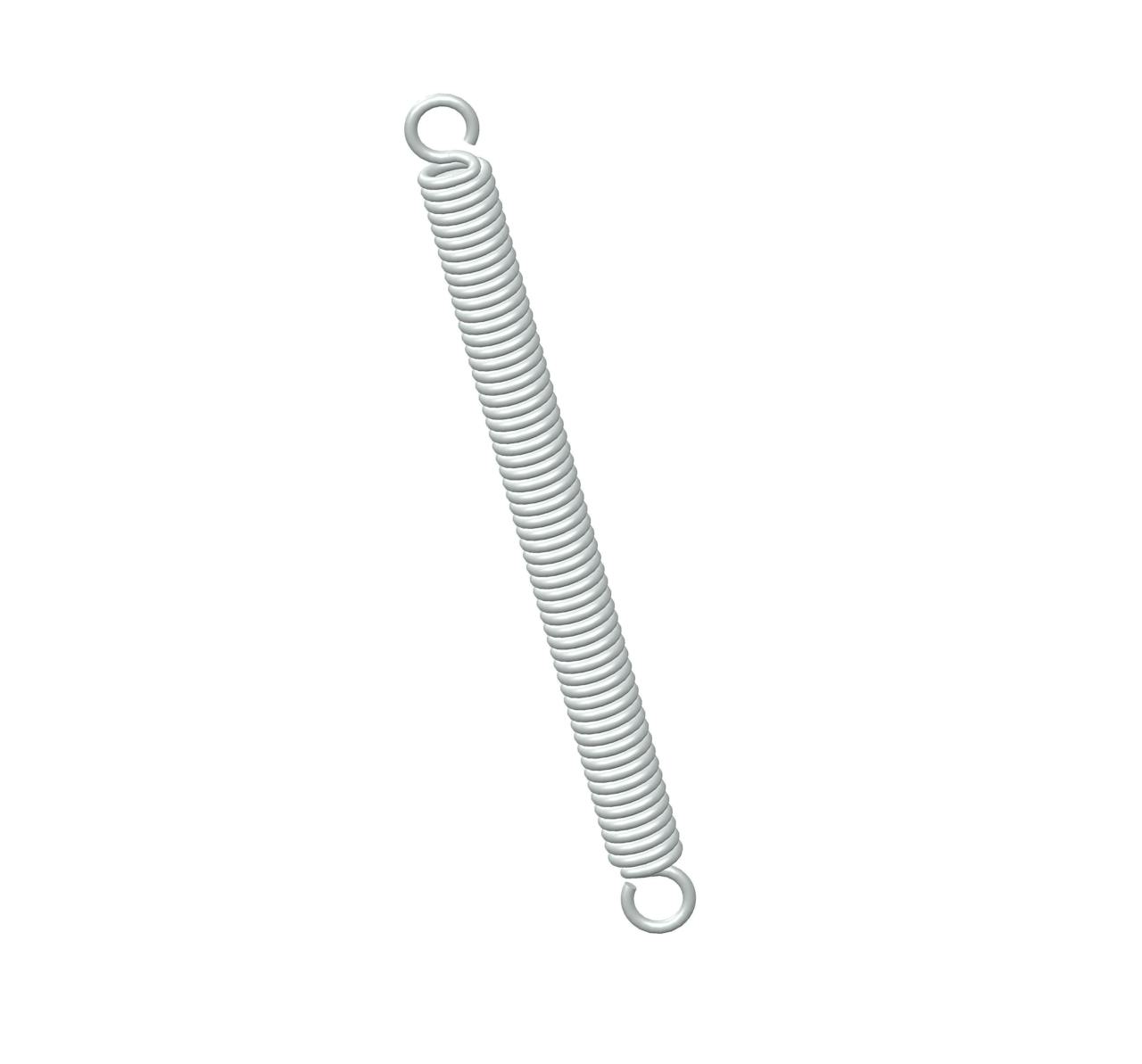

5955CS - 1.5 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.125 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5955
Ends Full Loop
Finish None
Initial Tension 0.8 lb
Length 1.5 in
Material 302/304 Stainless Steel
Outside Diameter 0.125 in
Part Type Standard
Rate 4.4 lbs/in
SKU 5955CS
Sugg Max Deflection 0.57 in
Sugg Max Load 3.3 lbf
Wind Direction Left
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5955
Ends Full Loop
Finish None
Initial Tension 0.36 kg
Length 38.1 mm
Material 302/304 Stainless Steel
Outside Diameter 3.18 mm
Part Type Standard
Rate 0.77 N/mm
SKU 5955CS
Sugg Max Deflection 14.48 mm
Sugg Max Load 14.68 N
Wind Direction Left
Wire Diameter 0.56 mm
