Century Spring

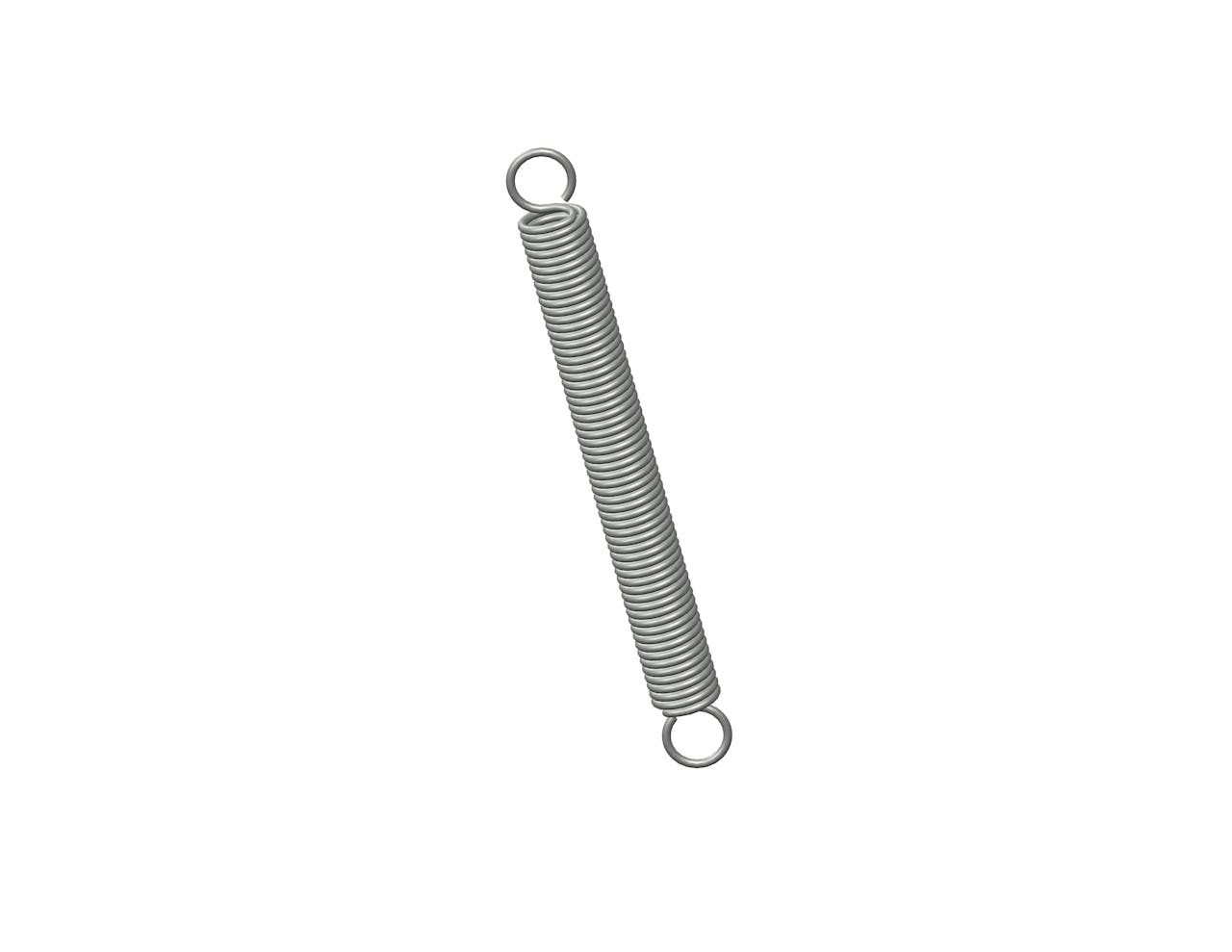

5938CS - 4.75 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5938
Ends Full Loop
Finish Zinc
Initial Tension 3 lb
Length 4.75 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 4.4 lbs/in
SKU 5938CS
Sugg Max Deflection 3.3 in
Sugg Max Load 18 lbf
Wind Direction Left
Wire Diameter 0.064 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5938
Ends Full Loop
Finish Zinc
Initial Tension 1.36 kg
Length 120.65 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.77 N/mm
SKU 5938CS
Sugg Max Deflection 83.82 mm
Sugg Max Load 80.06 N
Wind Direction Left
Wire Diameter 1.63 mm
