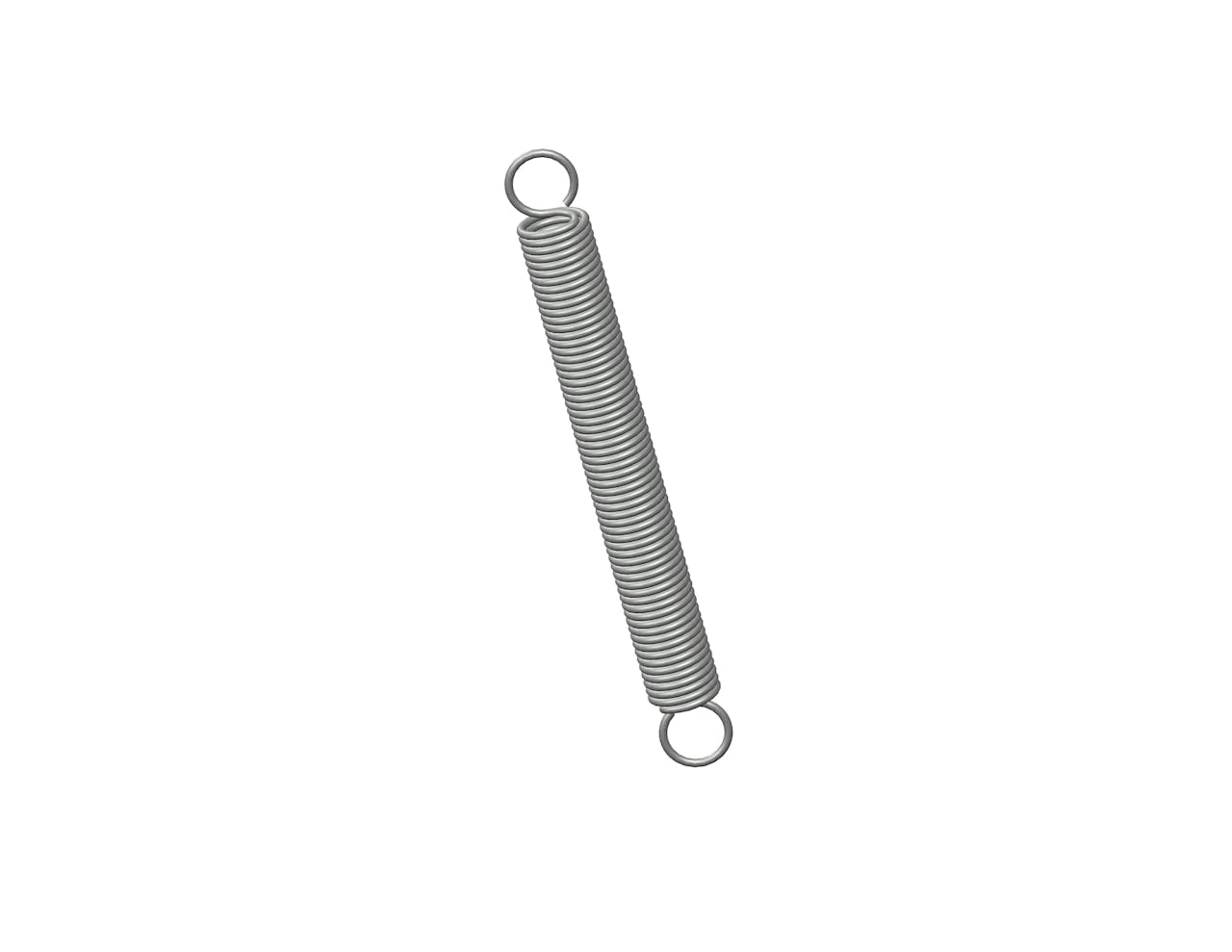

5935CS - 4.5 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 2.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5935
Ends Full Loop
Finish Zinc
Initial Tension 2.6 lb
Length 4.5 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 2.8 lbs/in
SKU 5935CS
Sugg Max Deflection 3.9 in
Sugg Max Load 13 lbf
Wire Diameter 0.058 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5935
Ends Full Loop
Finish Zinc
Initial Tension 1.18 kg
Length 114.3 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.49 N/mm
SKU 5935CS
Sugg Max Deflection 99.06 mm
Sugg Max Load 57.82 N
Wire Diameter 1.47 mm
