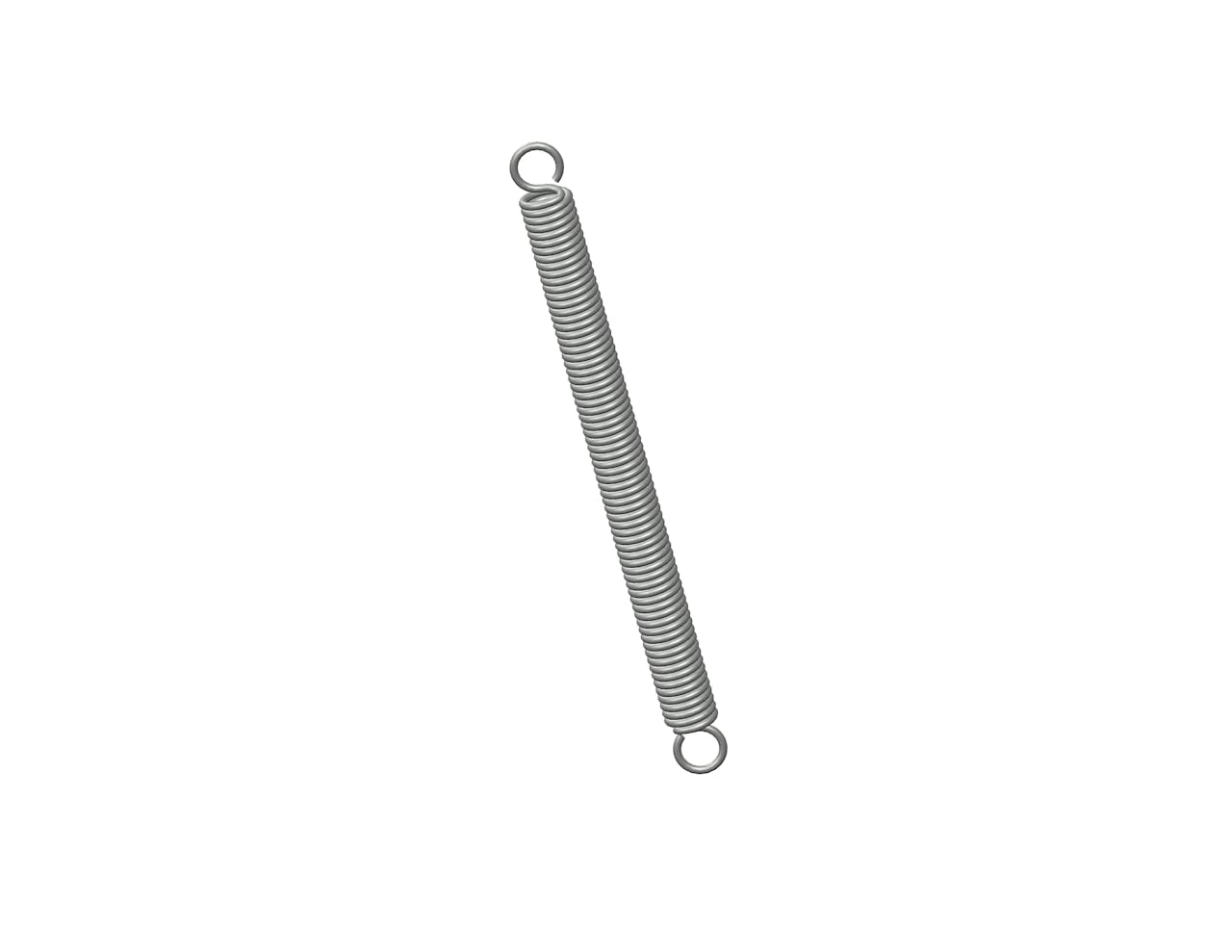

5927CS - 4.5 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5927
Ends Full Loop
Finish Zinc
Initial Tension 4 lb
Length 4.5 in
Material Spring Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 6.2 lbs/in
SKU 5927CS
Sugg Max Deflection 2 in
Sugg Max Load 16 lbf
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5927
Ends Full Loop
Finish Zinc
Initial Tension 1.81 kg
Length 114.3 mm
Material Spring Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 1.09 N/mm
SKU 5927CS
Sugg Max Deflection 50.8 mm
Sugg Max Load 71.17 N
Wire Diameter 1.4 mm
