Century Spring

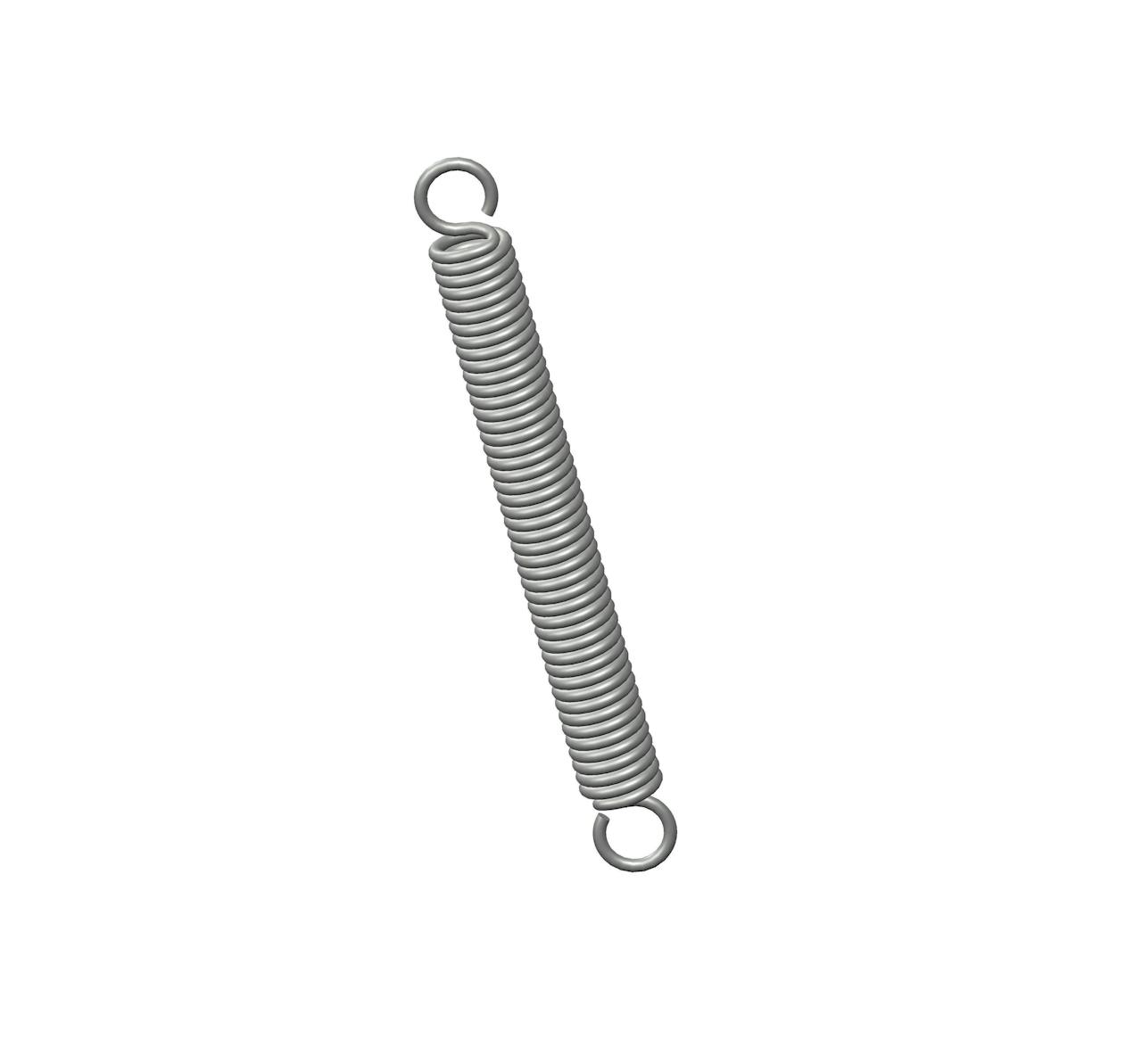

5908CS - 1.13 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.125 Inch and an initial tension of 0.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5908
Ends Full Loop
Finish Zinc
Initial Tension 0.6 lb
Length 1.13 in
Material Music Wire
Outside Diameter 0.125 in
Part Type Standard
Rate 4 lbs/in
SKU 5908CS
Sugg Max Deflection 0.73 in
Sugg Max Load 3.5 lbf
Wind Direction Left
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5908
Ends Full Loop
Finish Zinc
Initial Tension 0.27 kg
Length 28.7 mm
Material Music Wire
Outside Diameter 3.18 mm
Part Type Standard
Rate 0.7 N/mm
SKU 5908CS
Sugg Max Deflection 18.54 mm
Sugg Max Load 15.57 N
Wind Direction Left
Wire Diameter 0.51 mm
