Century Spring

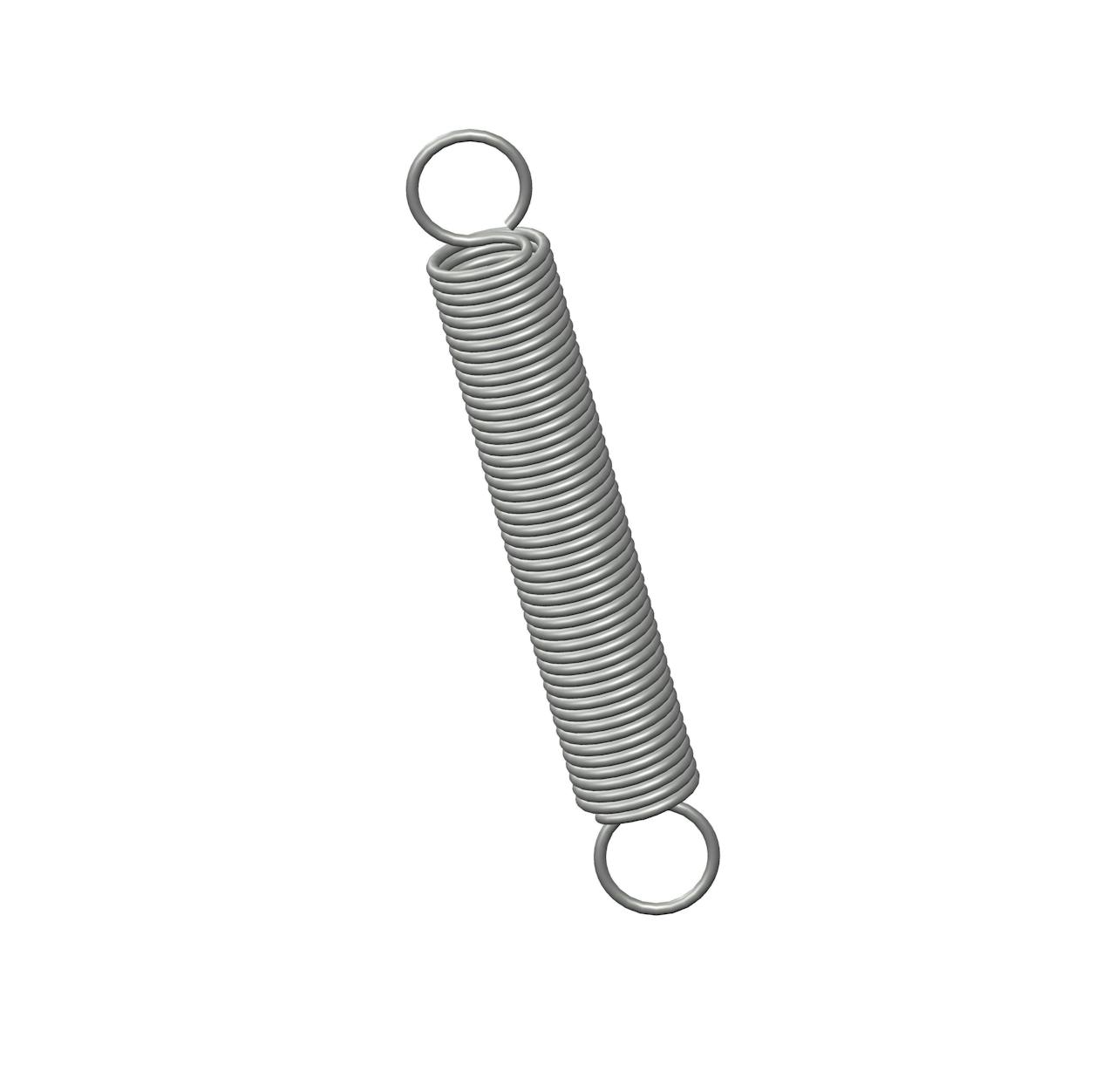

5893CS - 5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5893
Ends Full Loop
Finish Zinc
Initial Tension 3 lb
Length 5 in
Material Spring Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 2.7 lbs/in
SKU 5893CS
Sugg Max Deflection 5.6 in
Sugg Max Load 18 lbf
Wind Direction Left
Wire Diameter 0.075 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5893
Ends Full Loop
Finish Zinc
Initial Tension 1.36 kg
Length 127 mm
Material Spring Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 0.47 N/mm
SKU 5893CS
Sugg Max Deflection 142.24 mm
Sugg Max Load 80.06 N
Wind Direction Left
Wire Diameter 1.91 mm
