Shop Online > Springs > Extension > Regular

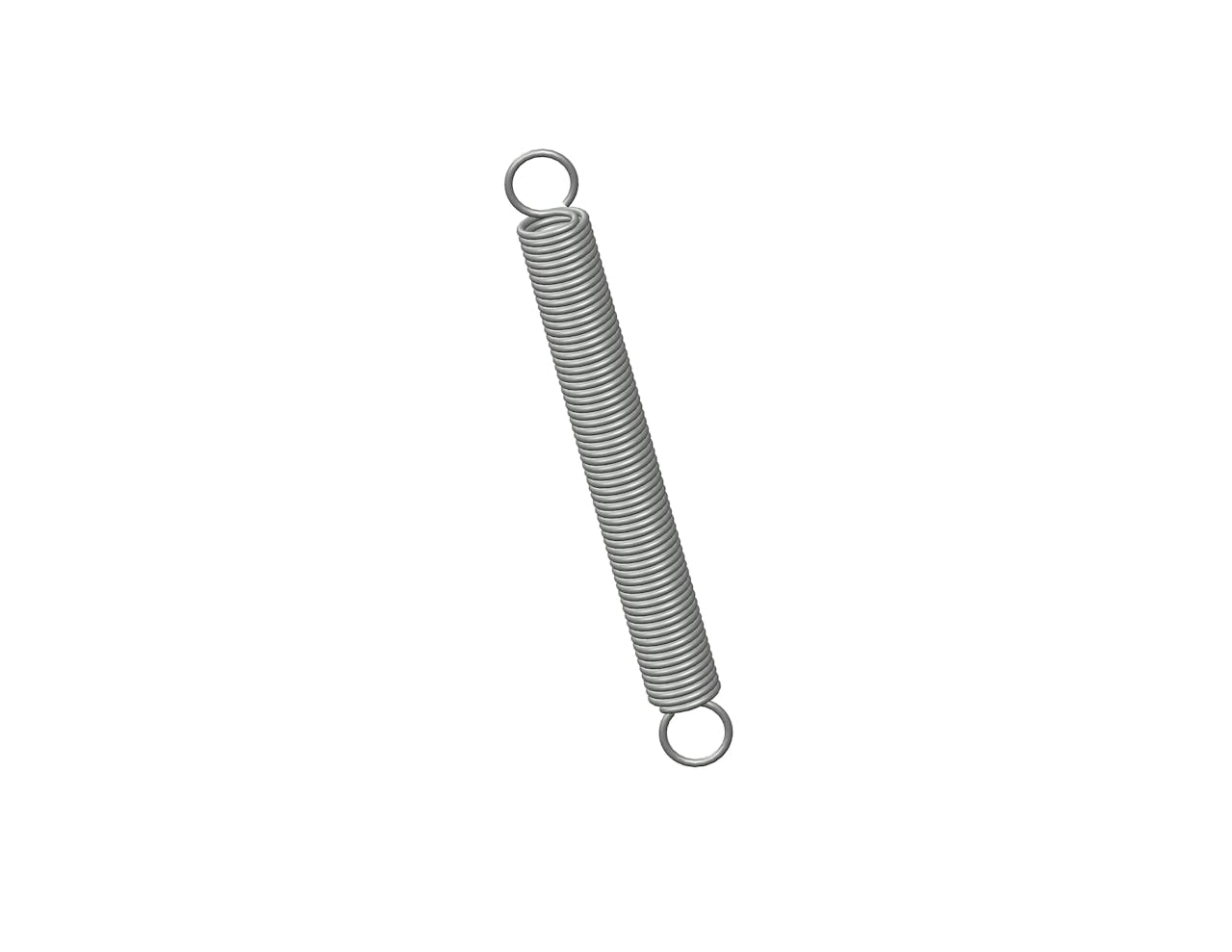

5878CS - 4.5 Inch Spring Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 2 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 5878 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 2 lb |
| Length | 4.5 in |
| Material | Spring Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 2.3 lbs/in |
| SKU | 5878CS |
| Sugg Max Deflection | 4.3 in |
| Sugg Max Load | 12 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.056 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 5878 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.91 kg |
| Length | 114.3 mm |
| Material | Spring Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 0.4 N/mm |
| SKU | 5878CS |
| Sugg Max Deflection | 109.22 mm |
| Sugg Max Load | 53.38 N |
| Wind Direction | Left |
| Wire Diameter | 1.42 mm |
