Century Spring

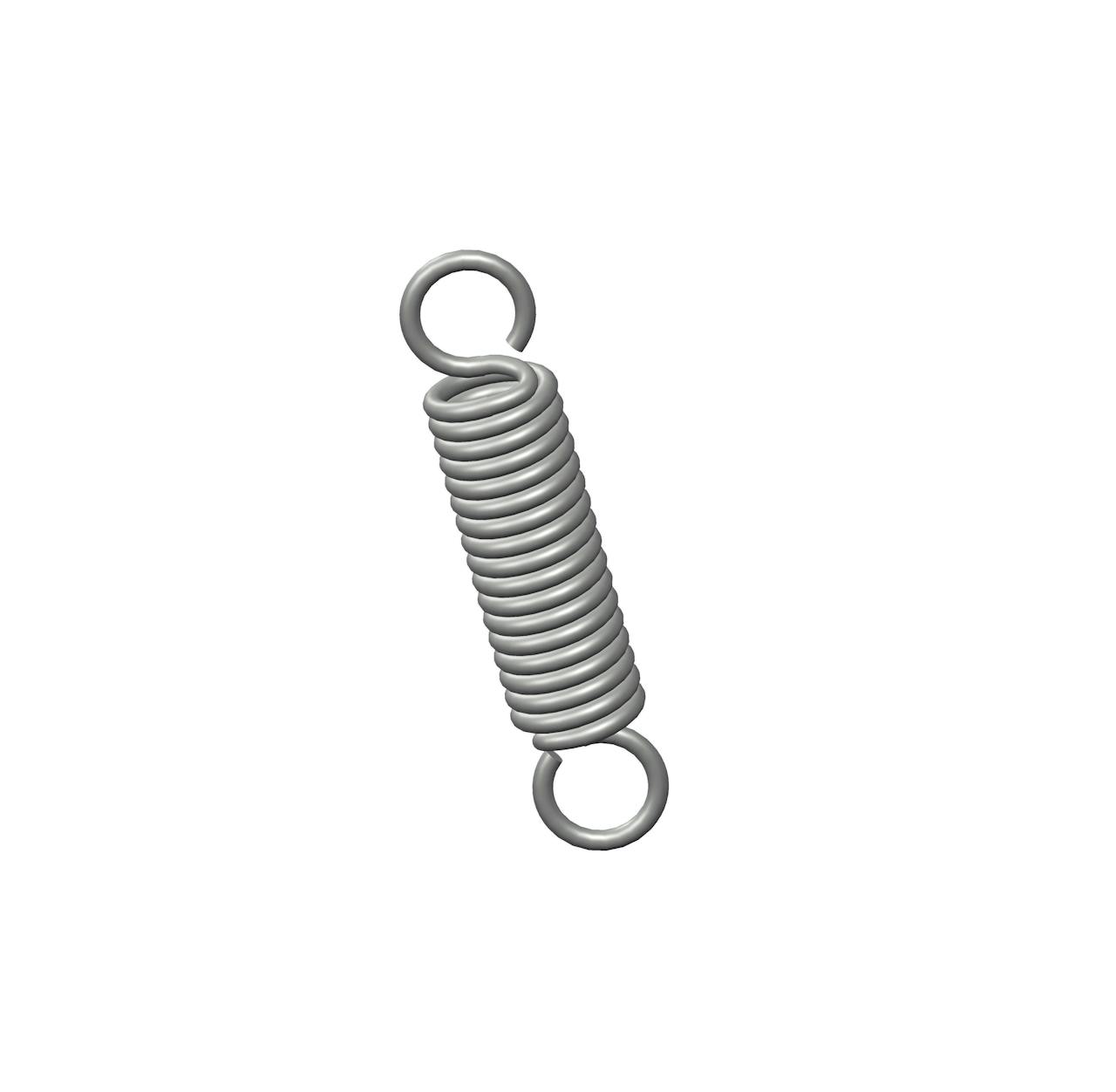

5862CS - 1.63 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5862
Ends Full Loop
Finish Zinc
Initial Tension 4 lb
Length 1.63 in
Material Spring Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 21 lbs/in
SKU 5862CS
Sugg Max Deflection 0.6 in
Sugg Max Load 16 lbf
Wind Direction Left
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5862
Ends Full Loop
Finish Zinc
Initial Tension 1.81 kg
Length 41.4 mm
Material Spring Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 3.68 N/mm
SKU 5862CS
Sugg Max Deflection 15.24 mm
Sugg Max Load 71.17 N
Wind Direction Left
Wire Diameter 1.4 mm
