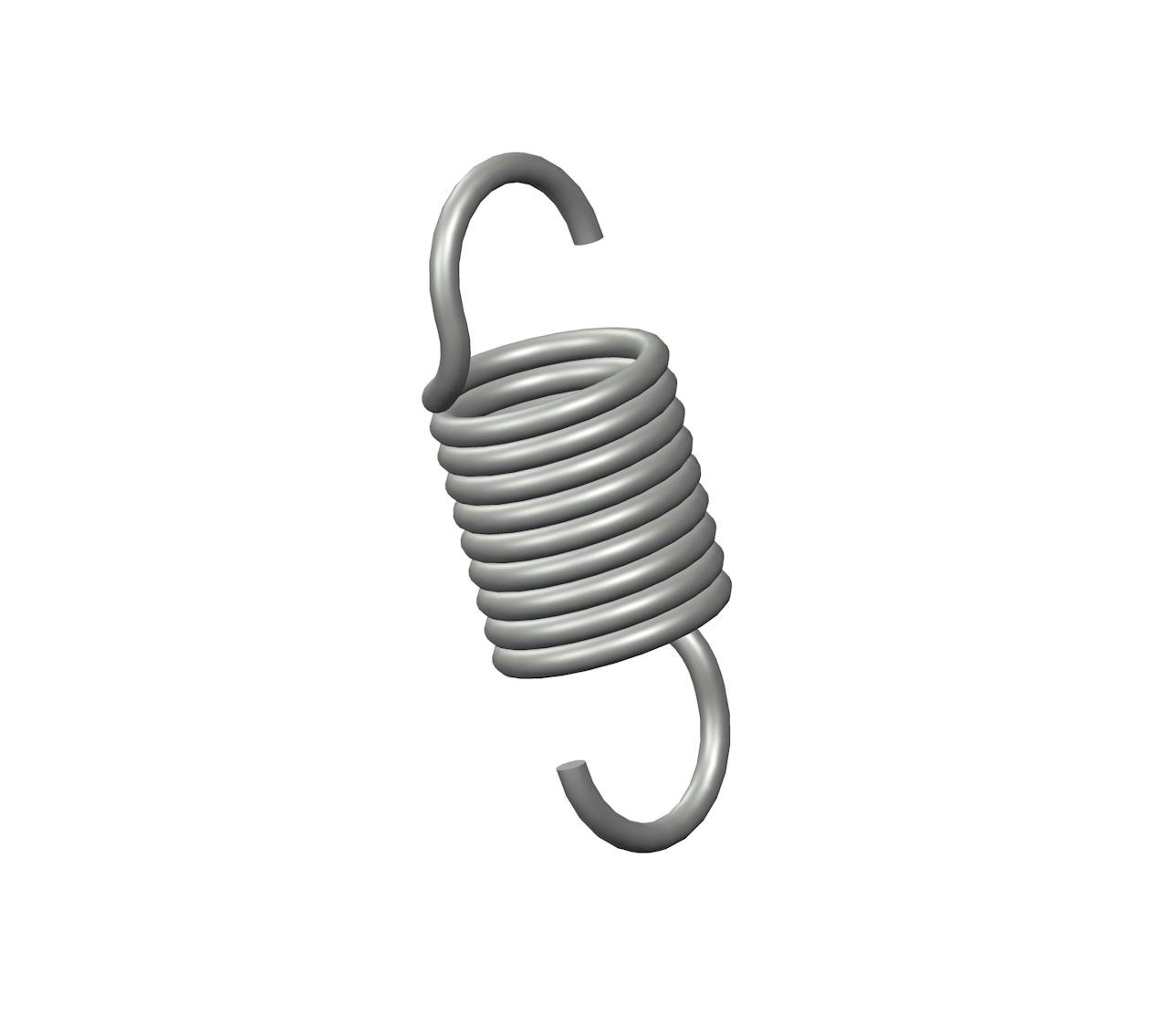

5842CS - 1.38 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.718 Inch and an initial tension of 6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5842
Ends Machine Hook
Finish Zinc
Initial Tension 6 lb
Length 1.38 in
Material Spring Steel
Outside Diameter 0.718 in
Part Type Standard
Rate 44 lbs/in
SKU 5842CS
Sugg Max Deflection 0.55 in
Sugg Max Load 30 lbf
Wire Diameter 0.087 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5842
Ends Machine Hook
Finish Zinc
Initial Tension 2.72 kg
Length 35.05 mm
Material Spring Steel
Outside Diameter 18.24 mm
Part Type Standard
Rate 7.7 N/mm
SKU 5842CS
Sugg Max Deflection 13.97 mm
Sugg Max Load 133.44 N
Wire Diameter 2.21 mm
