Century Spring

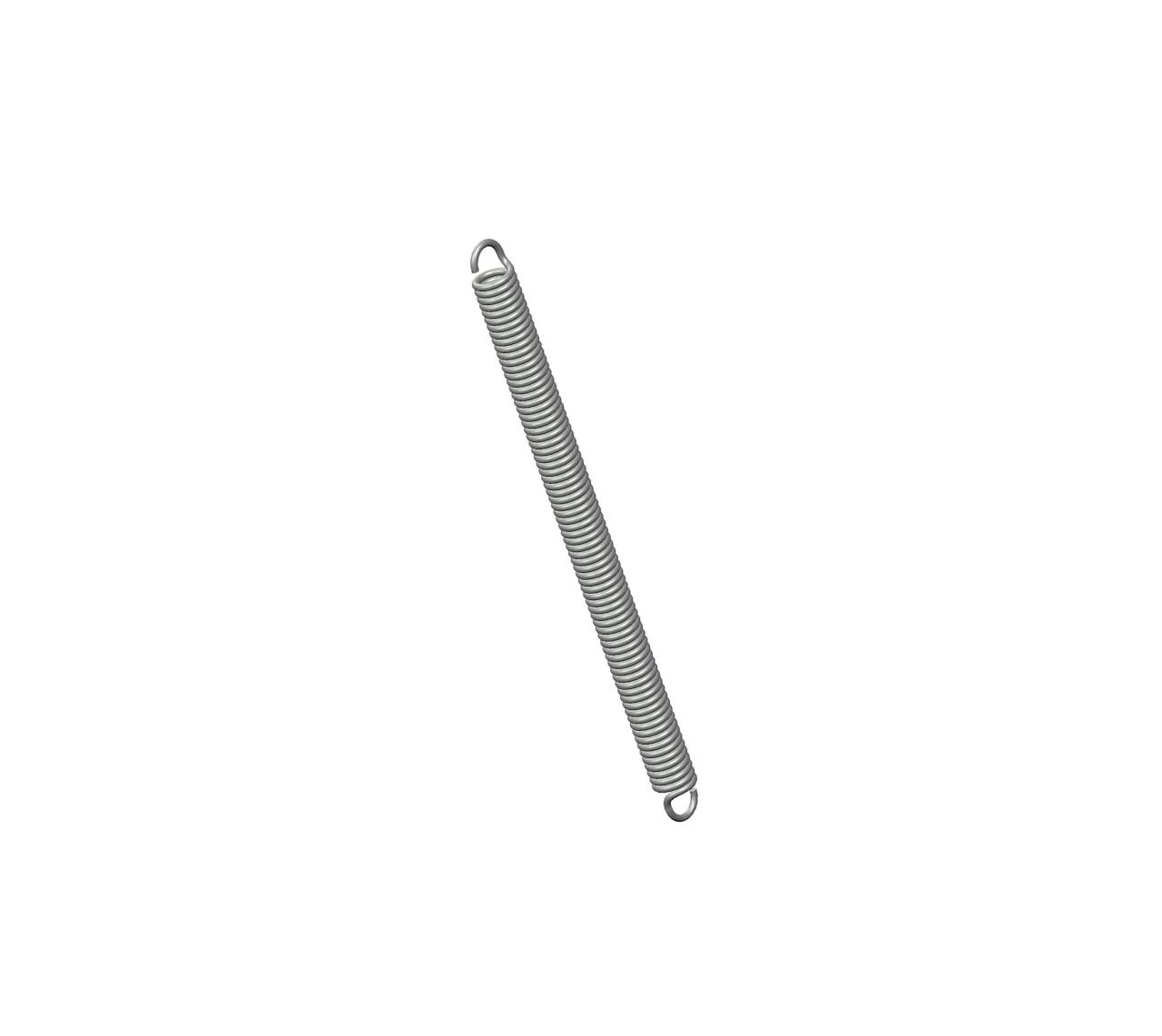

5822CS - 5.5 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.375 Inch and an initial tension of 7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5822
Ends Machine Hook
Finish Zinc
Initial Tension 7 lb
Length 5.5 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 11 lbs/in
SKU 5822CS
Sugg Max Deflection 1.7 in
Sugg Max Load 26 lbf
Wind Direction Left
Wire Diameter 0.065 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5822
Ends Machine Hook
Finish Zinc
Initial Tension 3.17 kg
Length 139.7 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 1.93 N/mm
SKU 5822CS
Sugg Max Deflection 43.18 mm
Sugg Max Load 115.65 N
Wind Direction Left
Wire Diameter 1.65 mm
