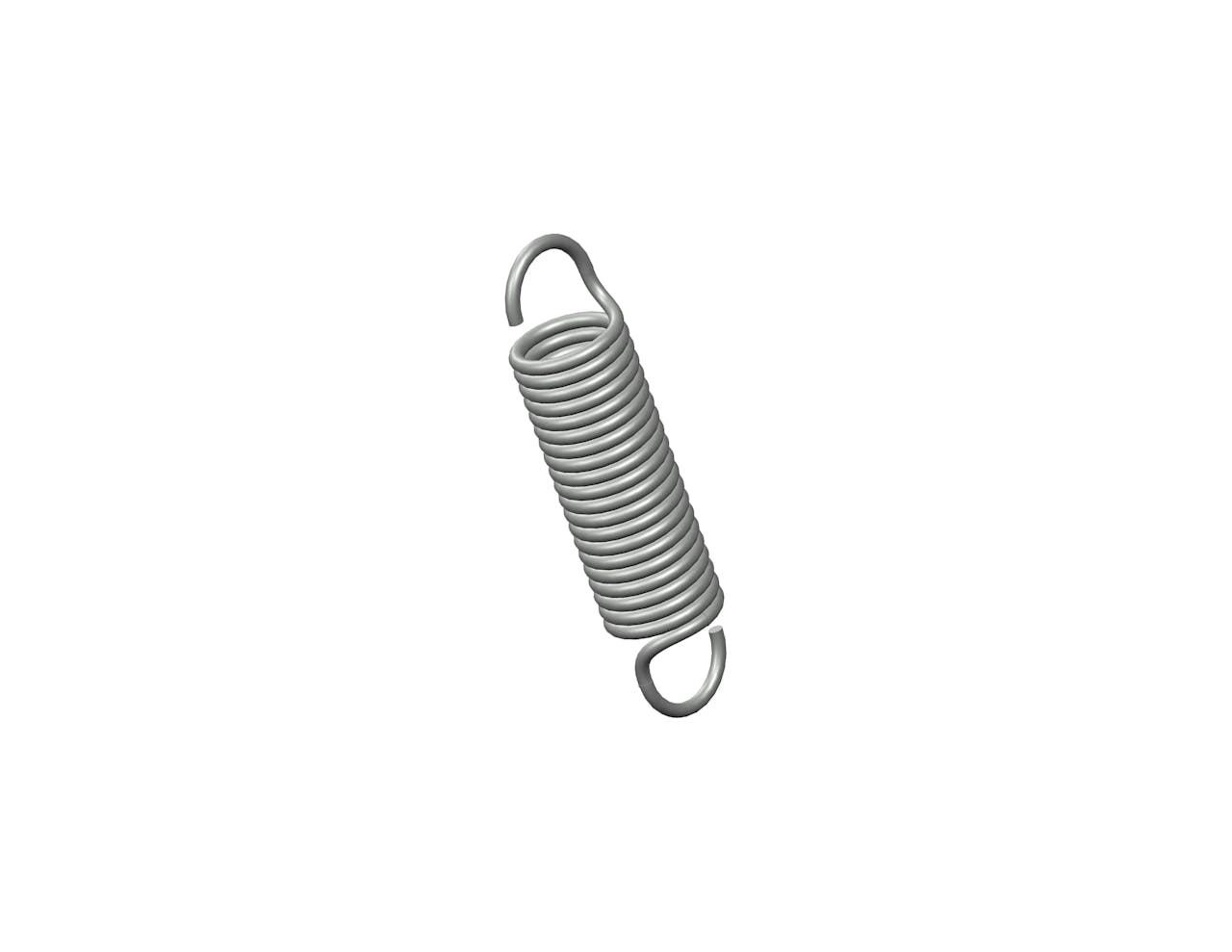

5698CS - 5.19 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 1.156 Inch and an initial tension of 19 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5698
Ends Machine Hook
Finish None
Initial Tension 19 lb
Length 5.19 in
Material Spring Steel
Outside Diameter 1.156 in
Part Type Standard
Rate 30 lbs/in
SKU 5698CS
Sugg Max Deflection 2.2 in
Sugg Max Load 84 lbf
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5698
Ends Machine Hook
Finish None
Initial Tension 8.62 kg
Length 131.83 mm
Material Spring Steel
Outside Diameter 29.36 mm
Part Type Standard
Rate 5.25 N/mm
SKU 5698CS
Sugg Max Deflection 55.88 mm
Sugg Max Load 373.63 N
Wire Diameter 3.76 mm
