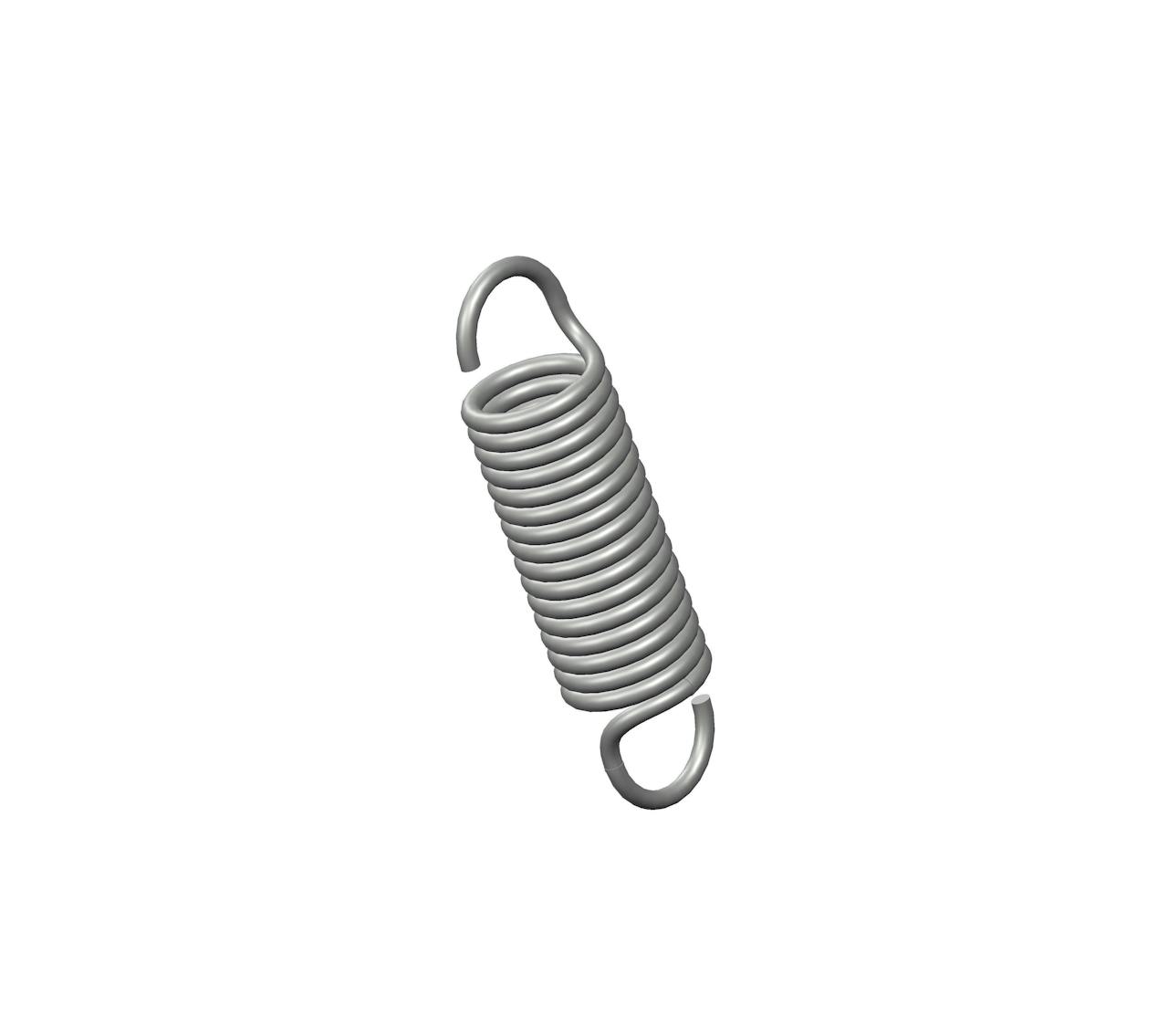

5696CS - 2.94 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.718 Inch and an initial tension of 9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5696
Ends Machine Hook
Finish None
Initial Tension 9 lb
Length 2.94 in
Material Spring Steel
Outside Diameter 0.718 in
Part Type Standard
Rate 28 lbs/in
SKU 5696CS
Sugg Max Deflection 1.2 in
Sugg Max Load 42 lbf
Wind Direction Left
Wire Diameter 0.098 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5696
Ends Machine Hook
Finish None
Initial Tension 4.08 kg
Length 74.68 mm
Material Spring Steel
Outside Diameter 18.24 mm
Part Type Standard
Rate 4.9 N/mm
SKU 5696CS
Sugg Max Deflection 30.48 mm
Sugg Max Load 186.82 N
Wind Direction Left
Wire Diameter 2.49 mm
