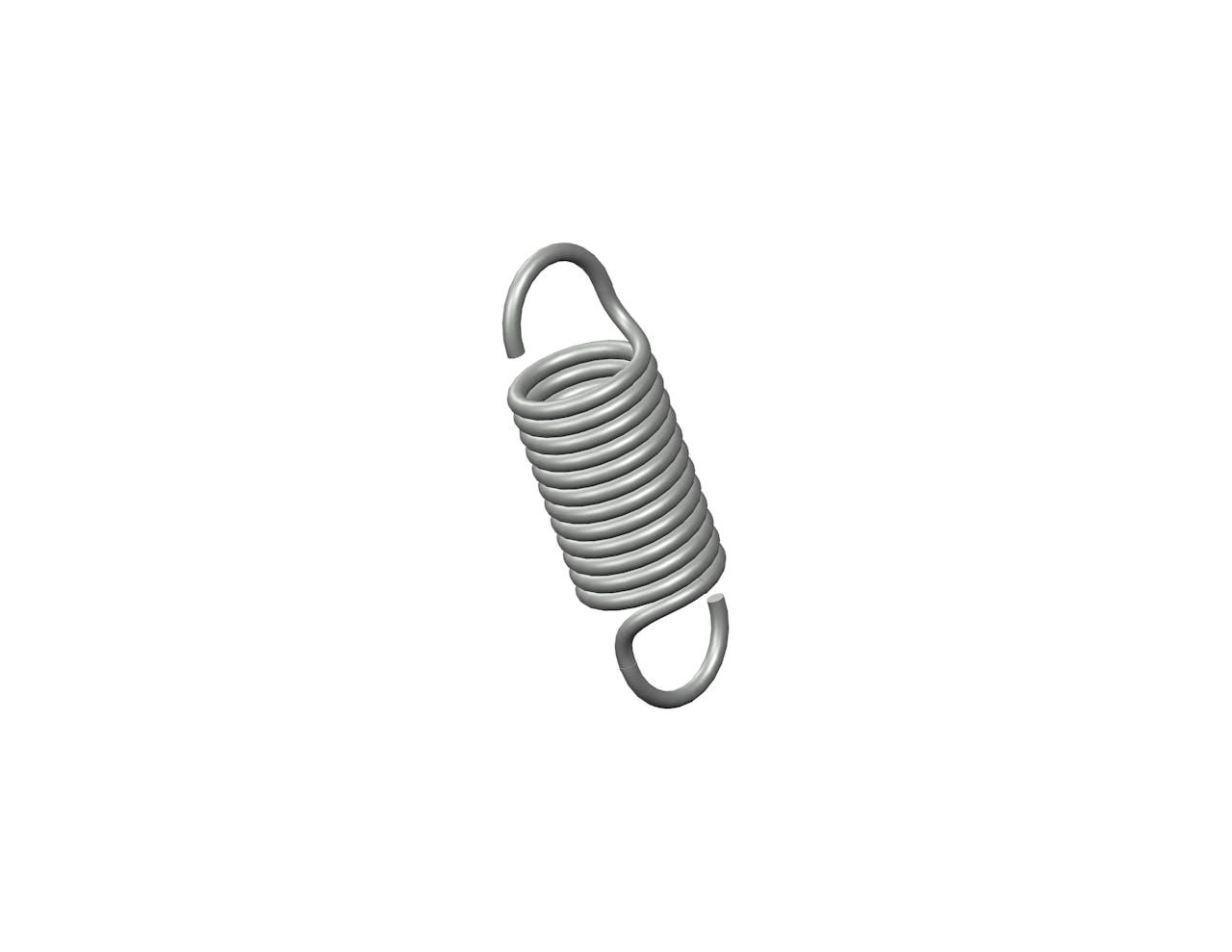

5694CS - 6.25 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 1.812 Inch and an initial tension of 40 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5694
Ends Machine Hook
Finish None
Initial Tension 40 lb
Length 6.25 in
Material Spring Steel
Outside Diameter 1.812 in
Part Type Standard
Rate 51 lbs/in
SKU 5694CS
Sugg Max Deflection 2.6 in
Sugg Max Load 171 lbf
Wire Diameter 0.225 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5694
Ends Machine Hook
Finish None
Initial Tension 18.14 kg
Length 158.75 mm
Material Spring Steel
Outside Diameter 46.02 mm
Part Type Standard
Rate 8.93 N/mm
SKU 5694CS
Sugg Max Deflection 66.04 mm
Sugg Max Load 760.61 N
Wire Diameter 5.72 mm
