Century Spring

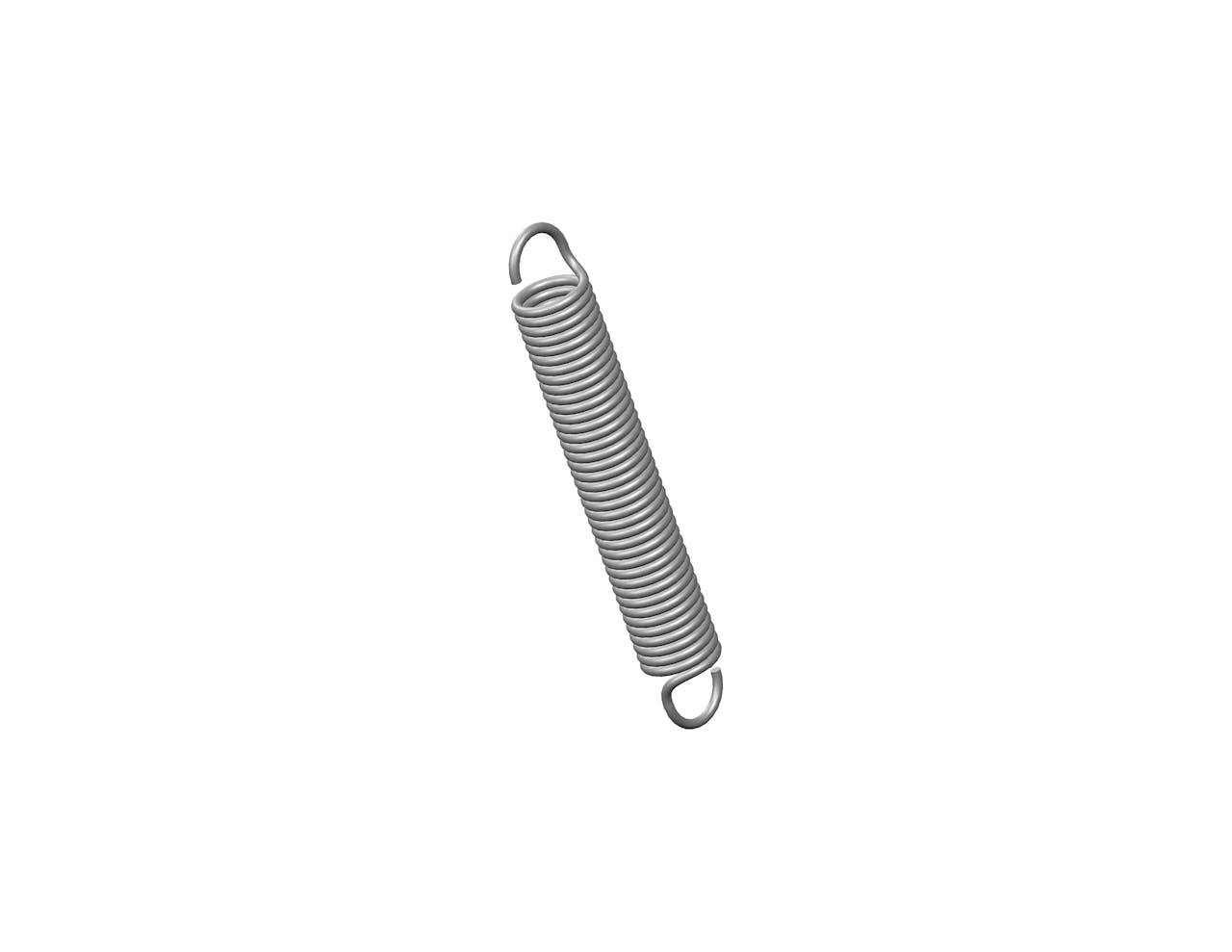

5692CS - 7.88 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 1.125 Inch and an initial tension of 22 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5692
Ends Machine Hook
Finish Zinc
Initial Tension 22 lb
Length 7.88 in
Material Spring Steel
Outside Diameter 1.125 in
Part Type Standard
Rate 19 lbs/in
SKU 5692CS
Sugg Max Deflection 3.6 in
Sugg Max Load 91 lbf
Wind Direction Left
Wire Diameter 0.151 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5692
Ends Machine Hook
Finish Zinc
Initial Tension 9.98 kg
Length 200.15 mm
Material Spring Steel
Outside Diameter 28.58 mm
Part Type Standard
Rate 3.33 N/mm
SKU 5692CS
Sugg Max Deflection 91.44 mm
Sugg Max Load 404.77 N
Wind Direction Left
Wire Diameter 3.84 mm
