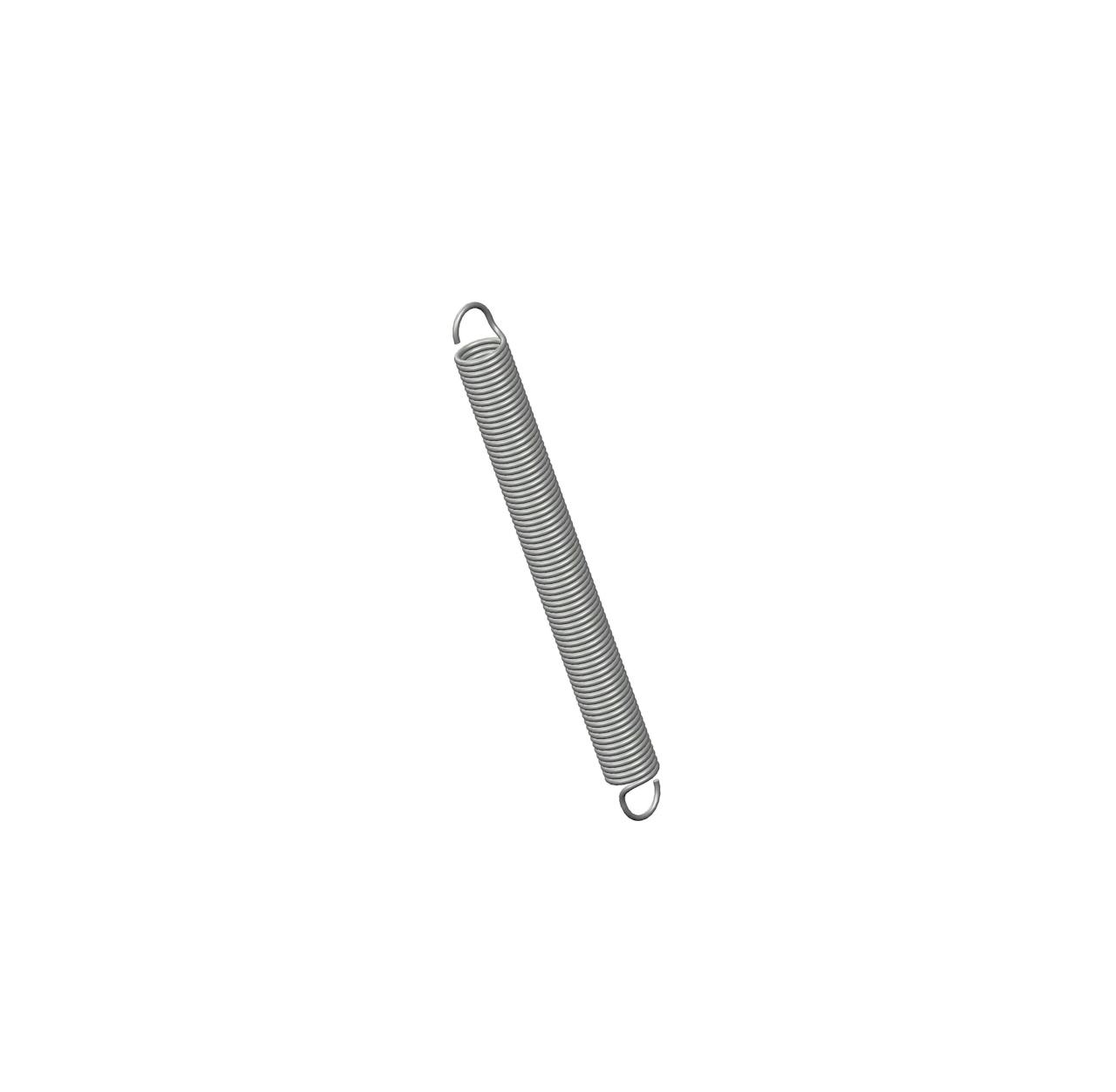

5684CS - 2 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.188 Inch and an initial tension of 0.3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5684
Ends Machine Hook
Finish Zinc
Initial Tension 0.3 lb
Length 2 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 0.94 lbs/in
SKU 5684CS
Sugg Max Deflection 2.8 in
Sugg Max Load 3 lbf
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5684
Ends Machine Hook
Finish Zinc
Initial Tension 0.14 kg
Length 50.8 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.16 N/mm
SKU 5684CS
Sugg Max Deflection 71.12 mm
Sugg Max Load 13.34 N
Wire Diameter 0.56 mm
