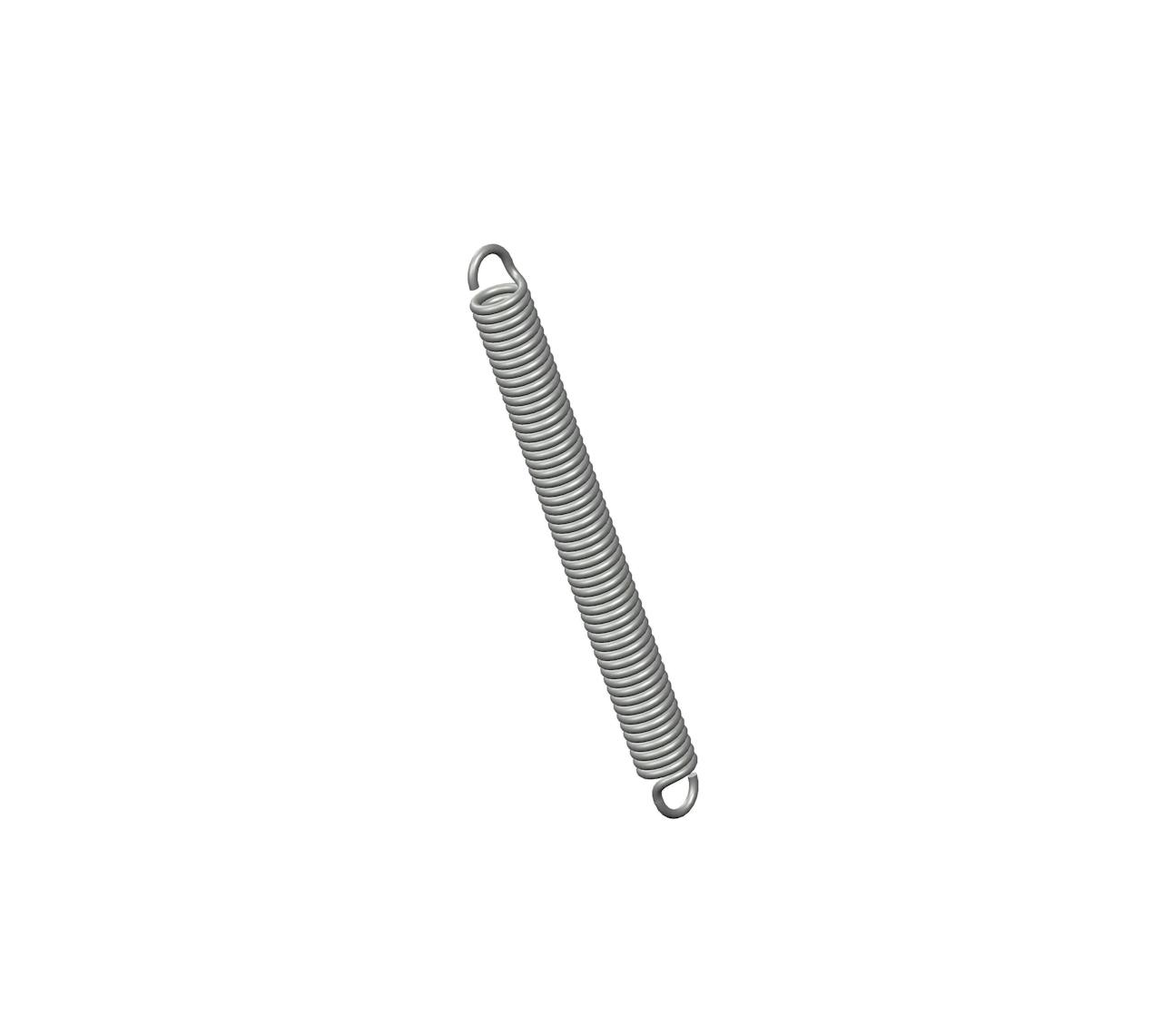

5680CS - 4 Inch Spring Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Spring Steel. This spring features an O.D. of 0.375 Inch and an initial tension of 6 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 5680 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 6 lb |
| Length | 4 in |
| Material | Spring Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 14 lbs/in |
| SKU | 5680CS |
| Sugg Max Deflection | 1.3 in |
| Sugg Max Load | 24 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 5680 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 2.72 kg |
| Length | 101.6 mm |
| Material | Spring Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 2.45 N/mm |
| SKU | 5680CS |
| Sugg Max Deflection | 33.02 mm |
| Sugg Max Load | 106.75 N |
| Wind Direction | Left |
| Wire Diameter | 1.59 mm |
