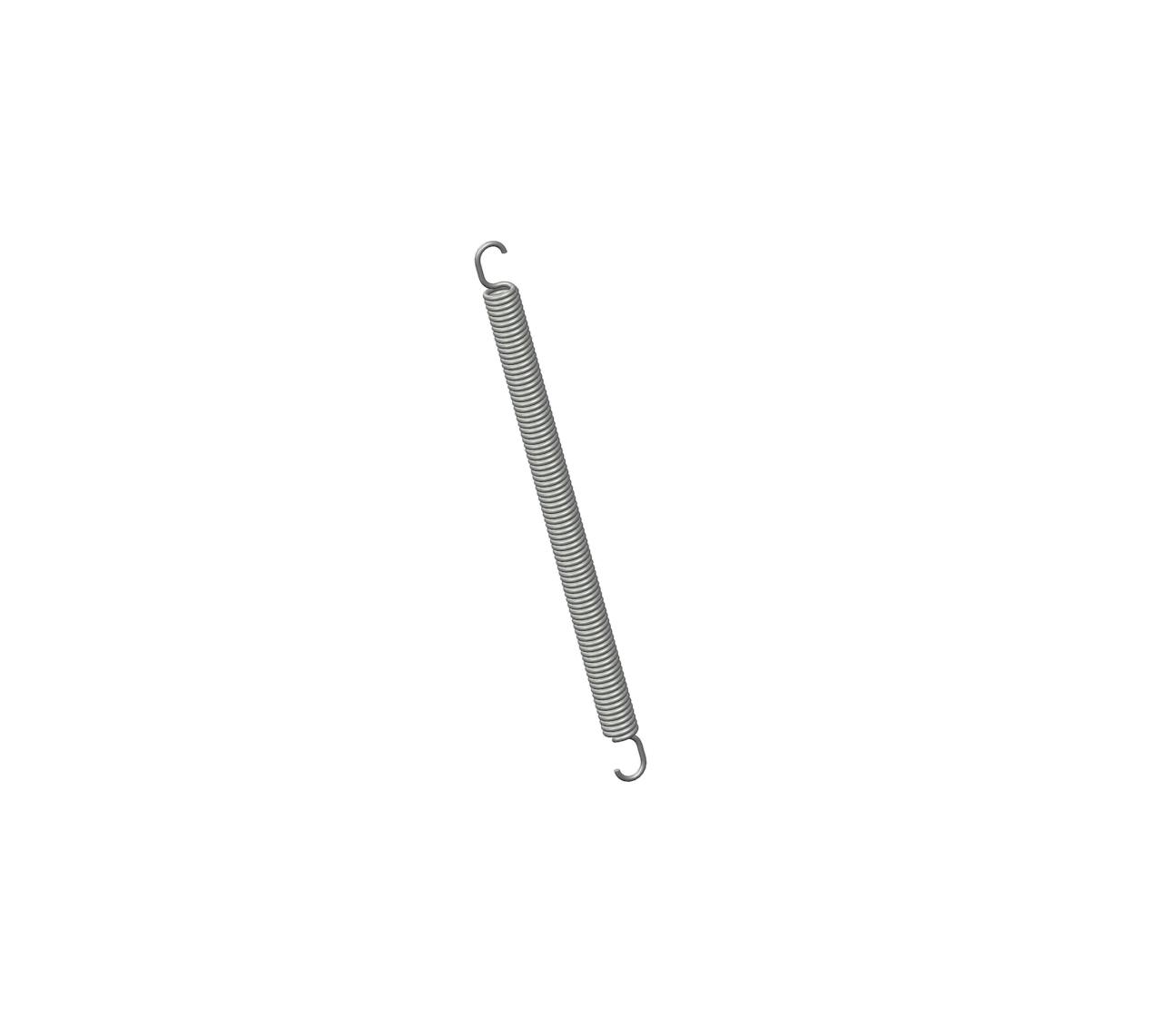

5678CS - 8.75 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.562 Inch and an initial tension of 13 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5678
Ends Extended Hook
Finish Zinc
Initial Tension 13 lb
Length 8.75 in
Material Spring Steel
Outside Diameter 0.562 in
Part Type Standard
Rate 15 lbs/in
SKU 5678CS
Sugg Max Deflection 2.1 in
Sugg Max Load 46 lbf
Wire Diameter 0.092 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5678
Ends Extended Hook
Finish Zinc
Initial Tension 5.9 kg
Length 222.25 mm
Material Spring Steel
Outside Diameter 14.27 mm
Part Type Standard
Rate 2.63 N/mm
SKU 5678CS
Sugg Max Deflection 53.34 mm
Sugg Max Load 204.61 N
Wire Diameter 2.34 mm
