Century Spring

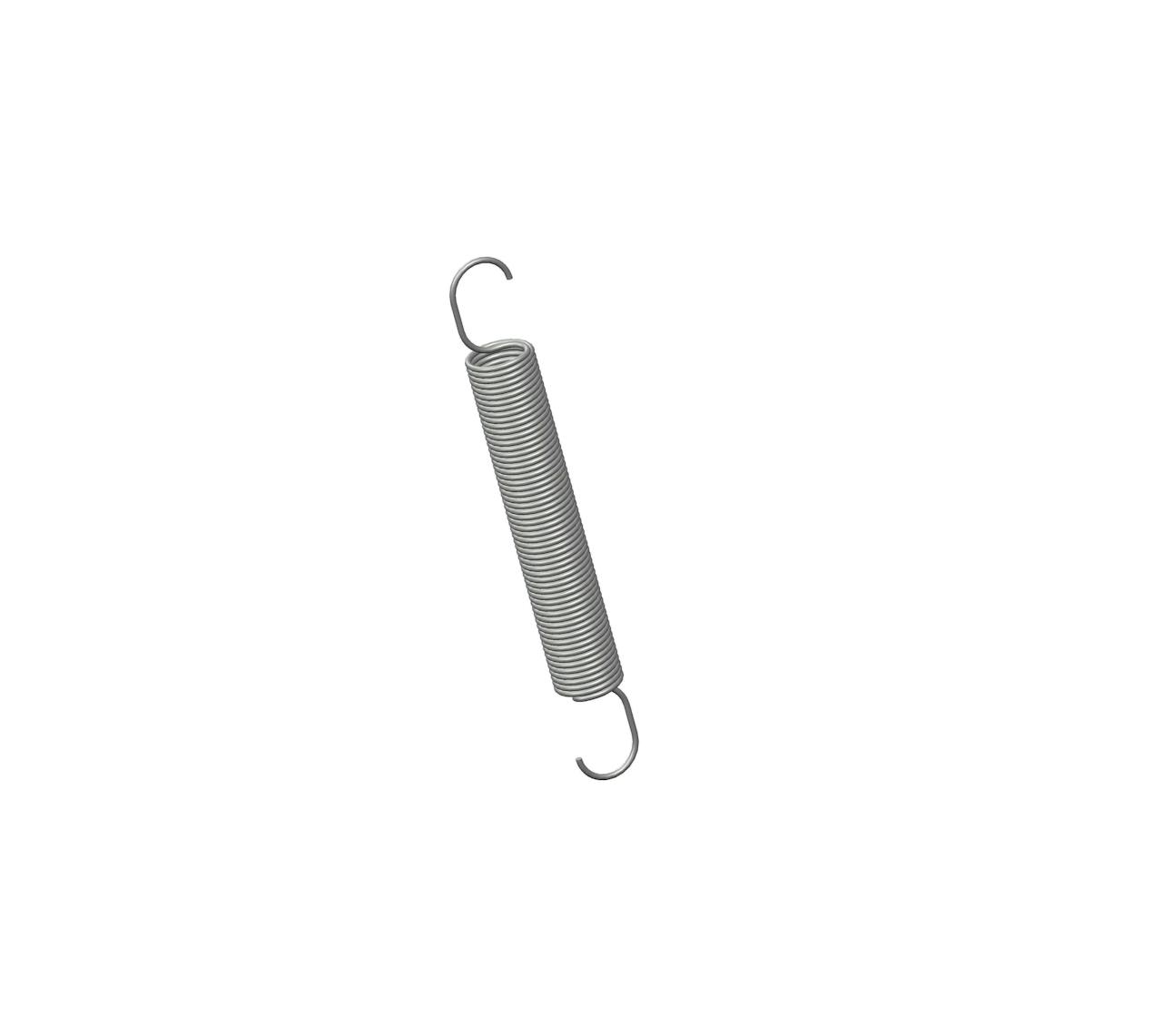

5631CS - 3.25 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.453 Inch and an initial tension of 0.7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5631
Ends Extended Hook
Finish Zinc
Initial Tension 0.7 lb
Length 3.25 in
Material Spring Steel
Outside Diameter 0.453 in
Part Type Standard
Rate 2.6 lbs/in
SKU 5631CS
Sugg Max Deflection 1.8 in
Sugg Max Load 5.4 lbf
Wind Direction Left
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5631
Ends Extended Hook
Finish Zinc
Initial Tension 0.32 kg
Length 82.55 mm
Material Spring Steel
Outside Diameter 11.51 mm
Part Type Standard
Rate 0.46 N/mm
SKU 5631CS
Sugg Max Deflection 45.72 mm
Sugg Max Load 24.02 N
Wind Direction Left
Wire Diameter 1.04 mm
