Century Spring

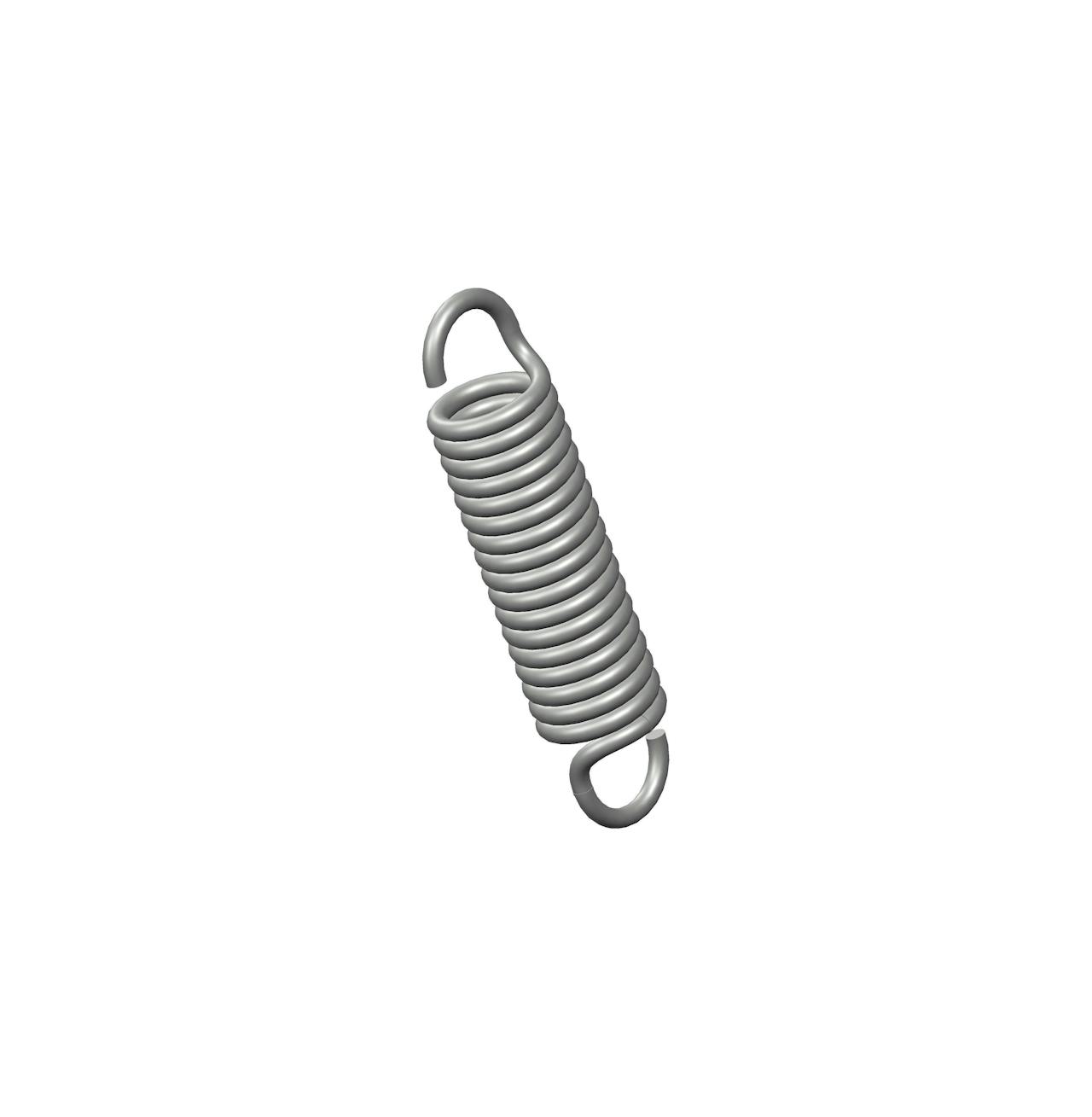

5625CS - 1.16 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 2.5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5625
Ends Machine Hook
Finish Zinc
Initial Tension 2.5 lb
Length 1.16 in
Material Spring Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 23 lbs/in
SKU 5625CS
Sugg Max Deflection 0.34 in
Sugg Max Load 10 lbf
Wind Direction Left
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5625
Ends Machine Hook
Finish Zinc
Initial Tension 1.13 kg
Length 29.46 mm
Material Spring Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 4.03 N/mm
SKU 5625CS
Sugg Max Deflection 8.64 mm
Sugg Max Load 44.48 N
Wind Direction Left
Wire Diameter 1.04 mm
