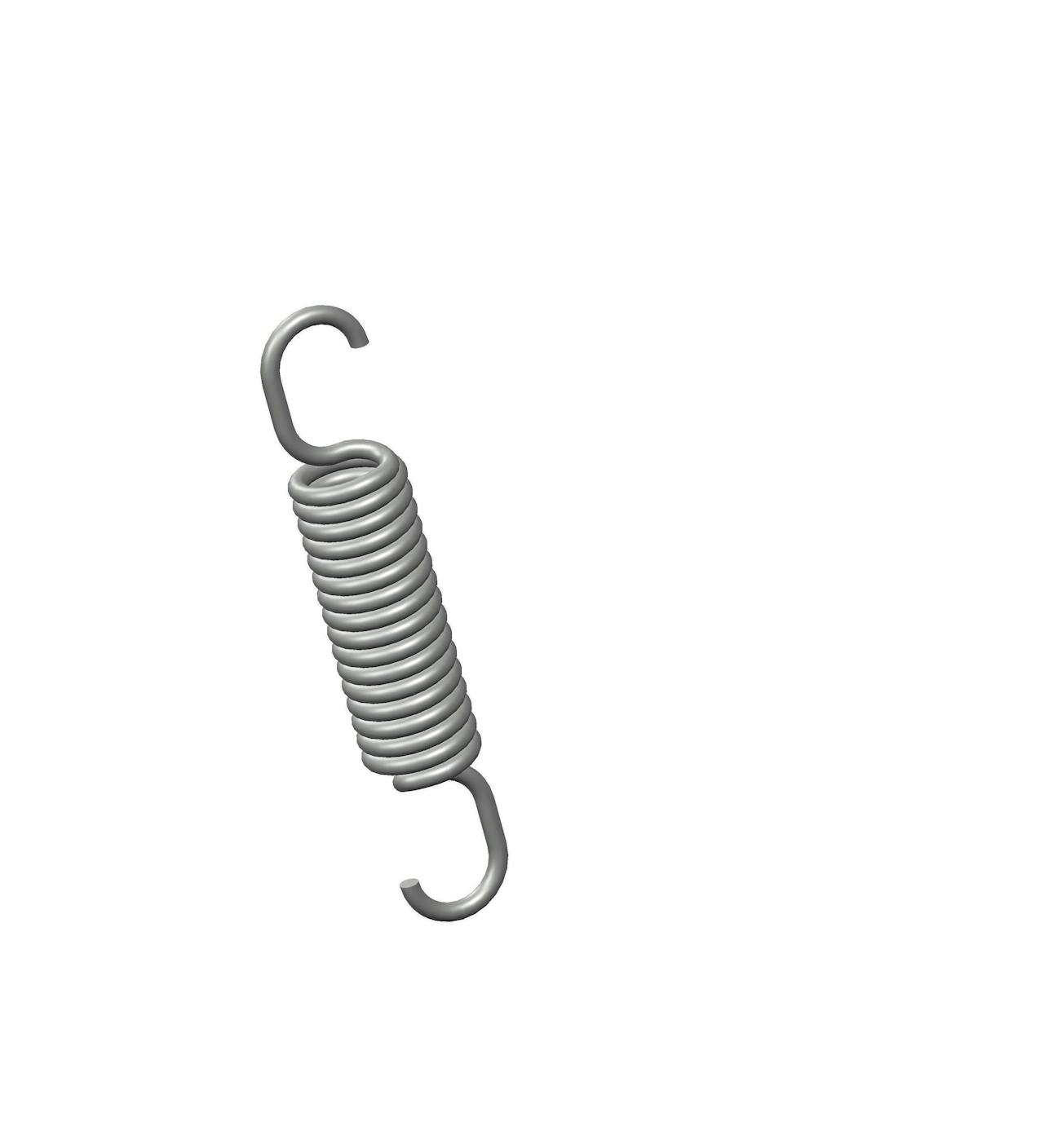

5623CS - 0.78 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.172 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5623
Ends Extended Hook
Finish Zinc
Initial Tension 1 lb
Length 0.78 in
Material Music Wire
Outside Diameter 0.172 in
Part Type Standard
Rate 18 lbs/in
SKU 5623CS
Sugg Max Deflection 0.29 in
Sugg Max Load 6.6 lbf
Wire Diameter 0.028 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5623
Ends Extended Hook
Finish Zinc
Initial Tension 0.45 kg
Length 19.81 mm
Material Music Wire
Outside Diameter 4.37 mm
Part Type Standard
Rate 3.15 N/mm
SKU 5623CS
Sugg Max Deflection 7.37 mm
Sugg Max Load 29.36 N
Wire Diameter 0.71 mm
