Century Spring

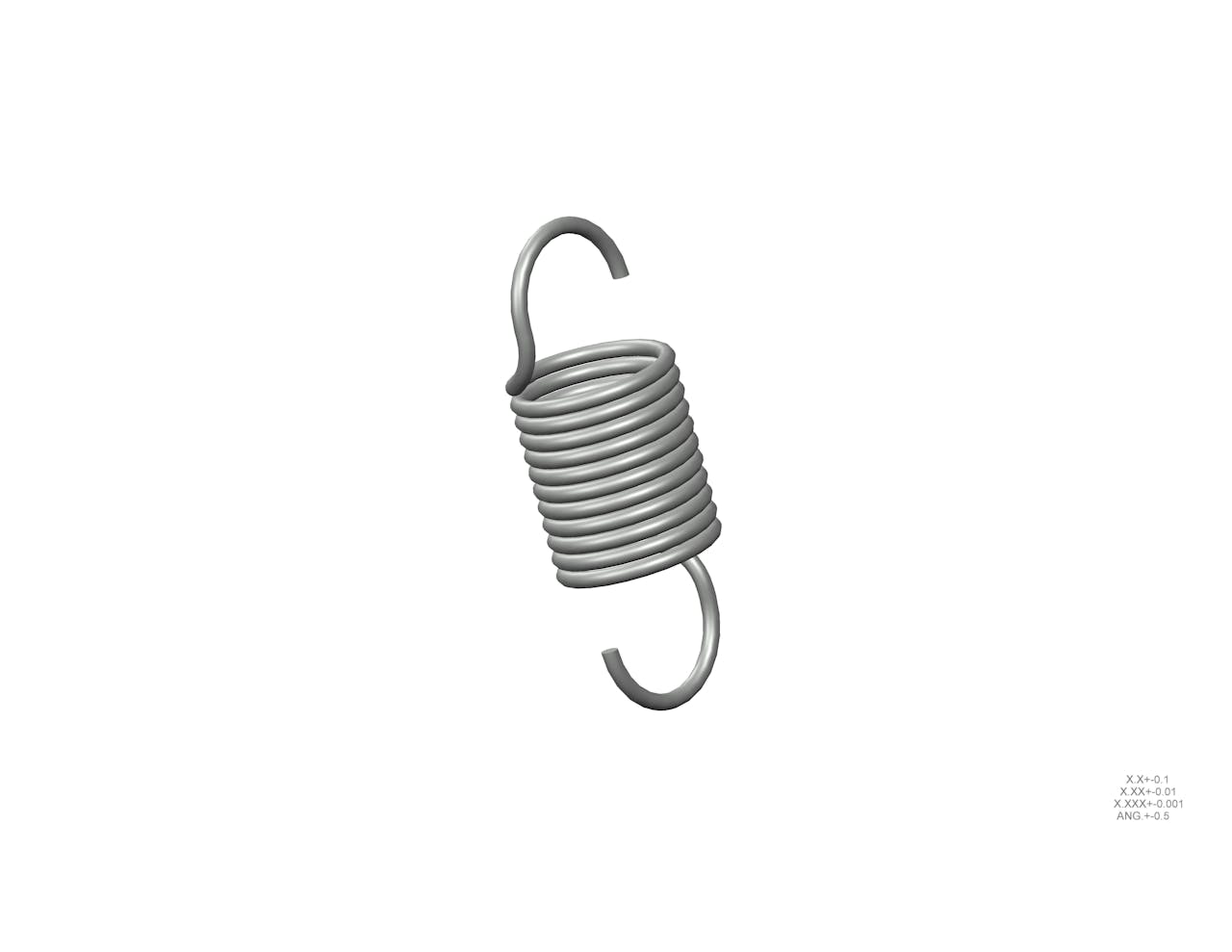

5617CS - 2.19 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 1.109 Inch and an initial tension of 6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5617
Ends Machine Hook
Finish None
Initial Tension 6 lb
Length 2.19 in
Material Spring Steel
Outside Diameter 1.109 in
Part Type Standard
Rate 33 lbs/in
SKU 5617CS
Sugg Max Deflection 0.85 in
Sugg Max Load 34.2 lbf
Wind Direction Left
Wire Diameter 0.11 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5617
Ends Machine Hook
Finish None
Initial Tension 2.72 kg
Length 55.63 mm
Material Spring Steel
Outside Diameter 28.17 mm
Part Type Standard
Rate 5.78 N/mm
SKU 5617CS
Sugg Max Deflection 21.59 mm
Sugg Max Load 152.12 N
Wind Direction Left
Wire Diameter 2.79 mm
