Century Spring

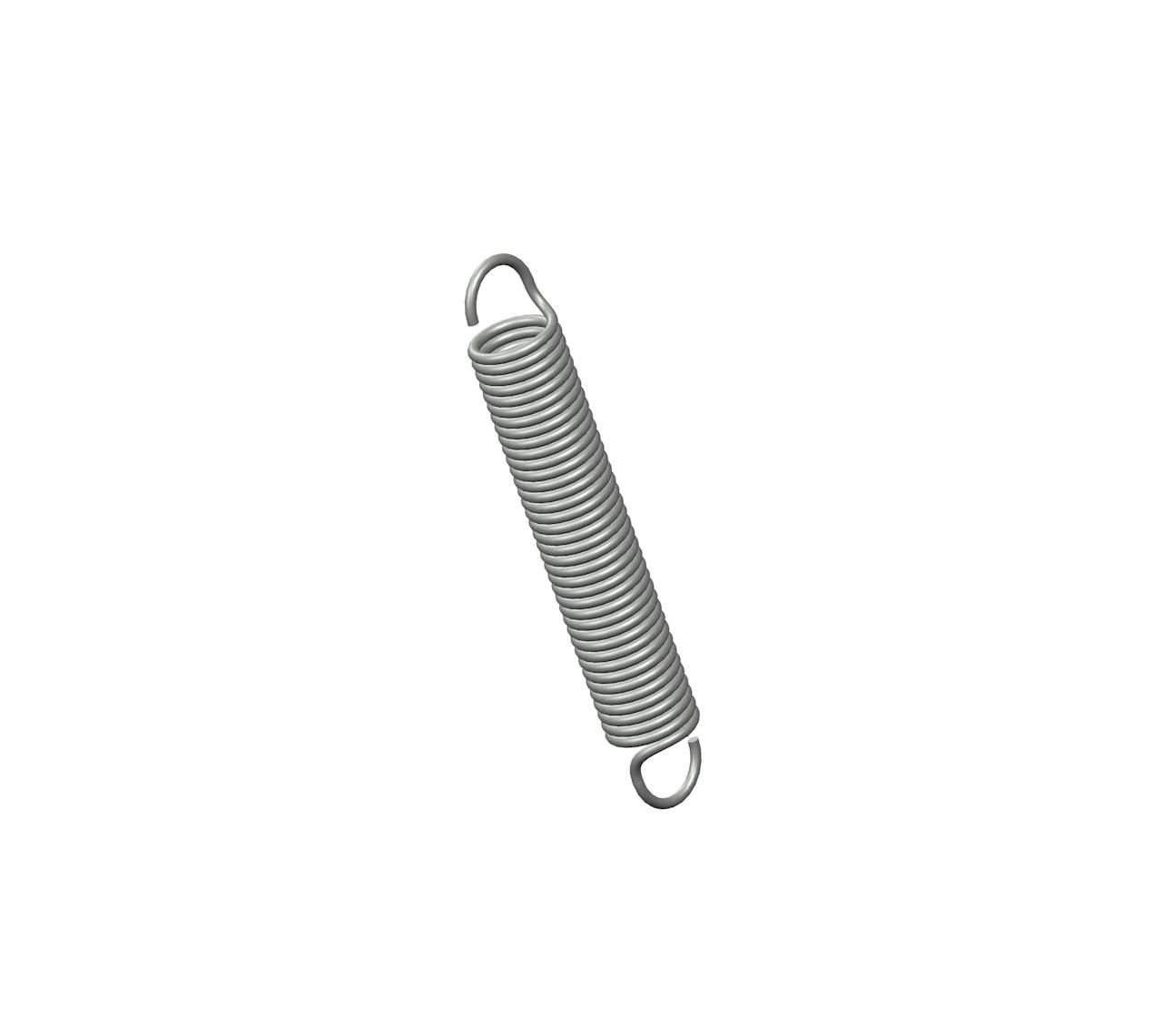

5580CS - 3.81 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.578 Inch and an initial tension of 4.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5580
Ends Full Loop
Finish Zinc
Initial Tension 4.6 lb
Length 3.81 in
Material Spring Steel
Outside Diameter 0.578 in
Part Type Standard
Rate 7.4 lbs/in
SKU 5580CS
Sugg Max Deflection 2.3 in
Sugg Max Load 21 lbf
Wind Direction Left
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5580
Ends Full Loop
Finish Zinc
Initial Tension 2.09 kg
Length 96.77 mm
Material Spring Steel
Outside Diameter 14.68 mm
Part Type Standard
Rate 1.3 N/mm
SKU 5580CS
Sugg Max Deflection 58.42 mm
Sugg Max Load 93.41 N
Wind Direction Left
Wire Diameter 1.83 mm
