Century Spring

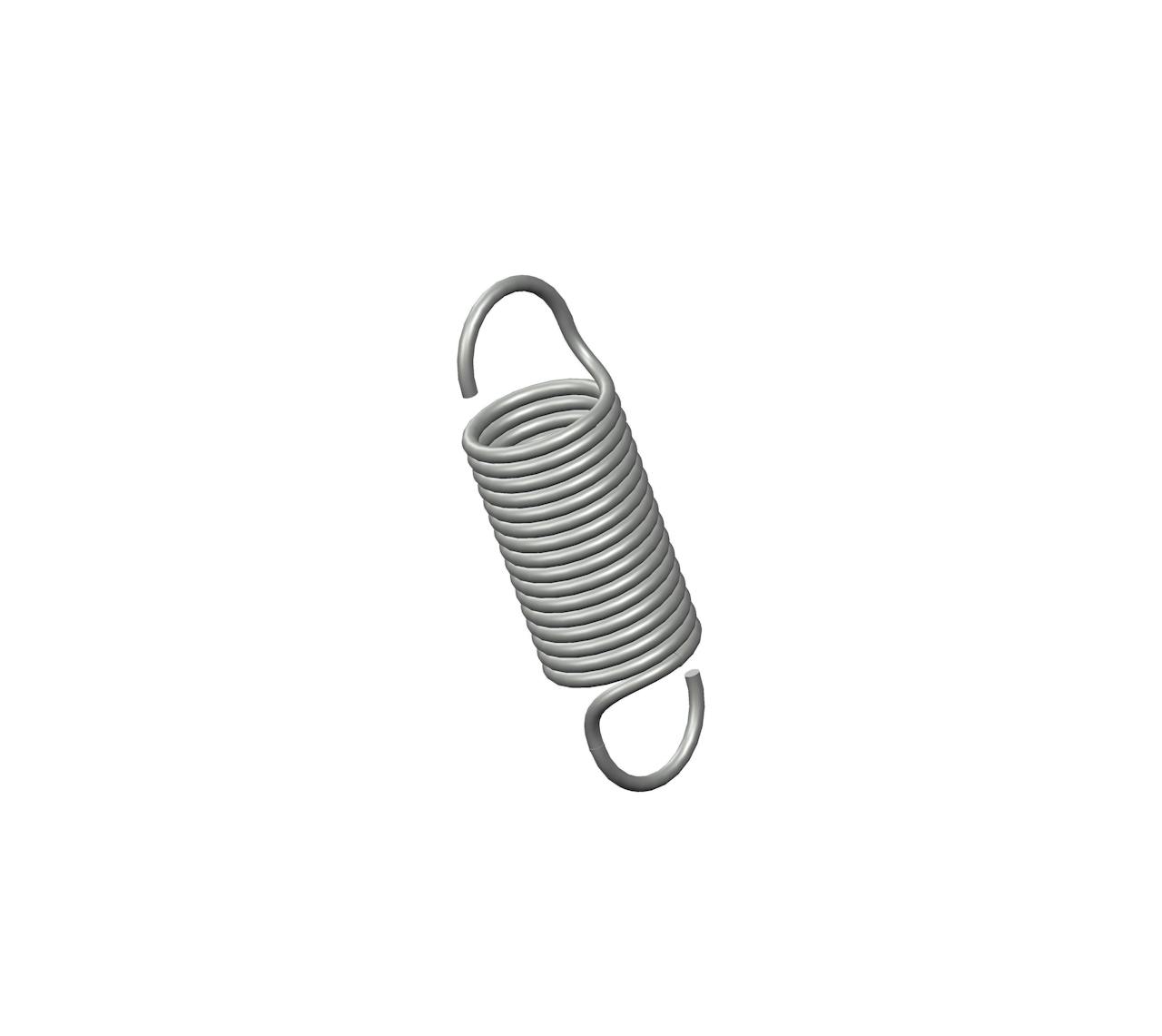

5529CS - 2.25 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.625 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5529
Ends Machine Hook
Finish Zinc
Initial Tension 2 lb
Length 2.25 in
Material Spring Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 6.4 lbs/in
SKU 5529CS
Sugg Max Deflection 1.8 in
Sugg Max Load 14 lbf
Wind Direction Left
Wire Diameter 0.064 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5529
Ends Machine Hook
Finish Zinc
Initial Tension 0.91 kg
Length 57.15 mm
Material Spring Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 1.12 N/mm
SKU 5529CS
Sugg Max Deflection 45.72 mm
Sugg Max Load 62.27 N
Wind Direction Left
Wire Diameter 1.63 mm
