Century Spring

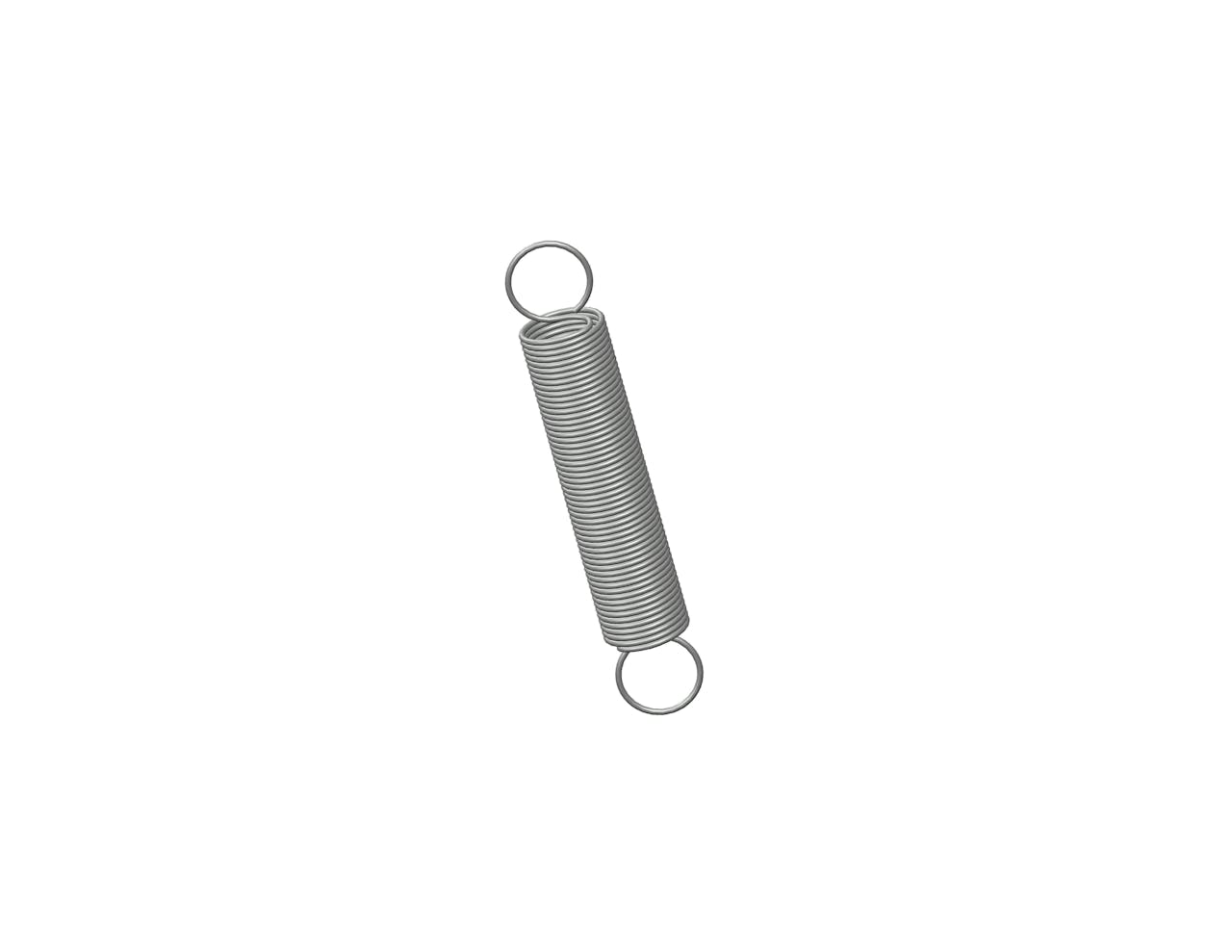

5485CS - 7.25 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 1.25 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5485
Ends Full Loop
Finish Zinc
Initial Tension 2 lb
Length 7.25 in
Material Spring Steel
Outside Diameter 1.25 in
Part Type Standard
Rate 1 lbs/in
SKU 5485CS
Sugg Max Deflection 15 in
Sugg Max Load 17 lbf
Wind Direction Left
Wire Diameter 0.09 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5485
Ends Full Loop
Finish Zinc
Initial Tension 0.91 kg
Length 184.15 mm
Material Spring Steel
Outside Diameter 31.75 mm
Part Type Standard
Rate 0.18 N/mm
SKU 5485CS
Sugg Max Deflection 381 mm
Sugg Max Load 75.62 N
Wind Direction Left
Wire Diameter 2.29 mm
