Century Spring

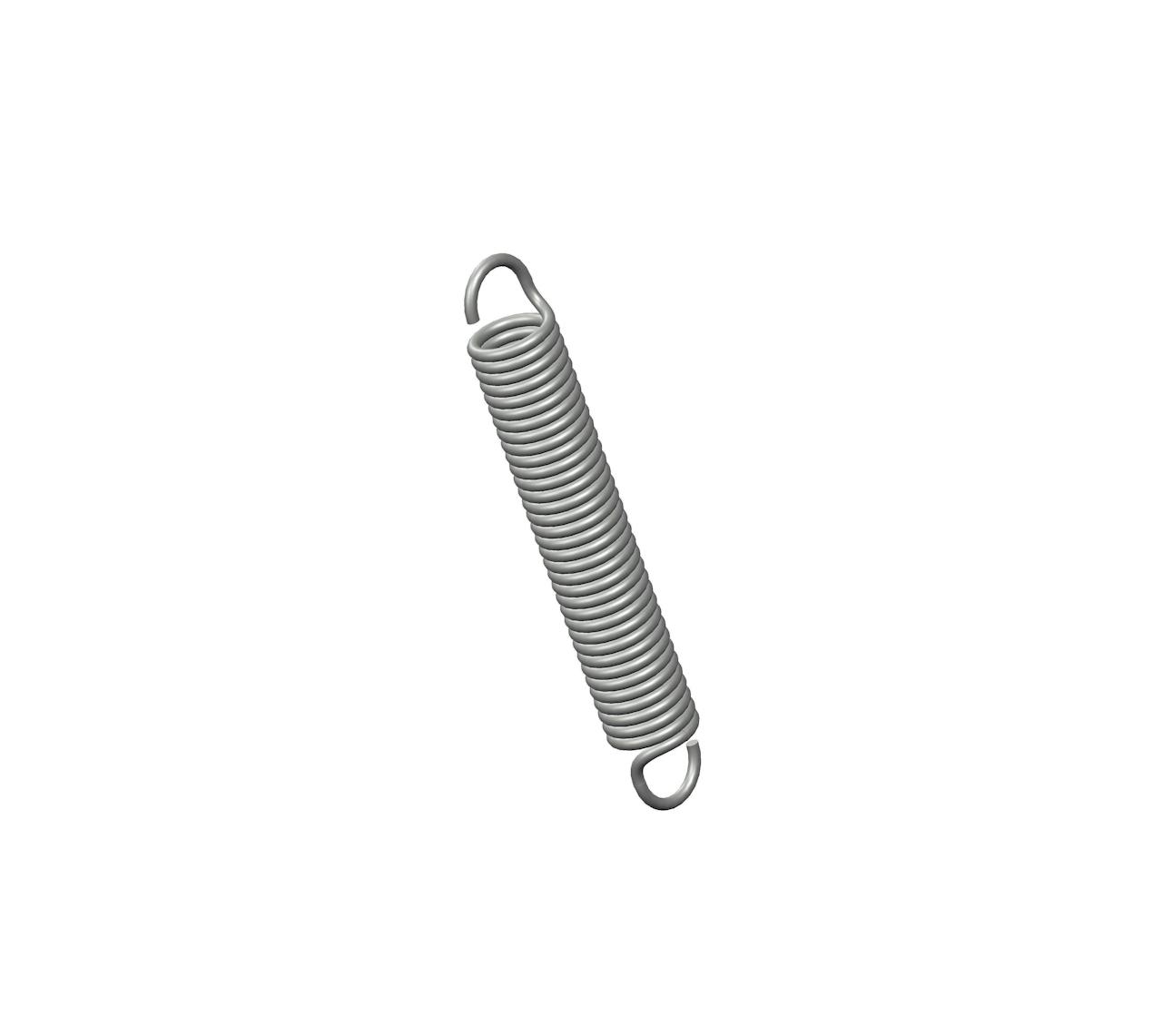

5476CS - 3.38 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5476
Ends Machine Hook
Finish Zinc
Initial Tension 6 lb
Length 3.38 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 14 lbs/in
SKU 5476CS
Sugg Max Deflection 1.3 in
Sugg Max Load 25 lbf
Wind Direction Left
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5476
Ends Machine Hook
Finish Zinc
Initial Tension 2.72 kg
Length 85.85 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 2.45 N/mm
SKU 5476CS
Sugg Max Deflection 33.02 mm
Sugg Max Load 111.2 N
Wind Direction Left
Wire Diameter 1.83 mm
