Century Spring

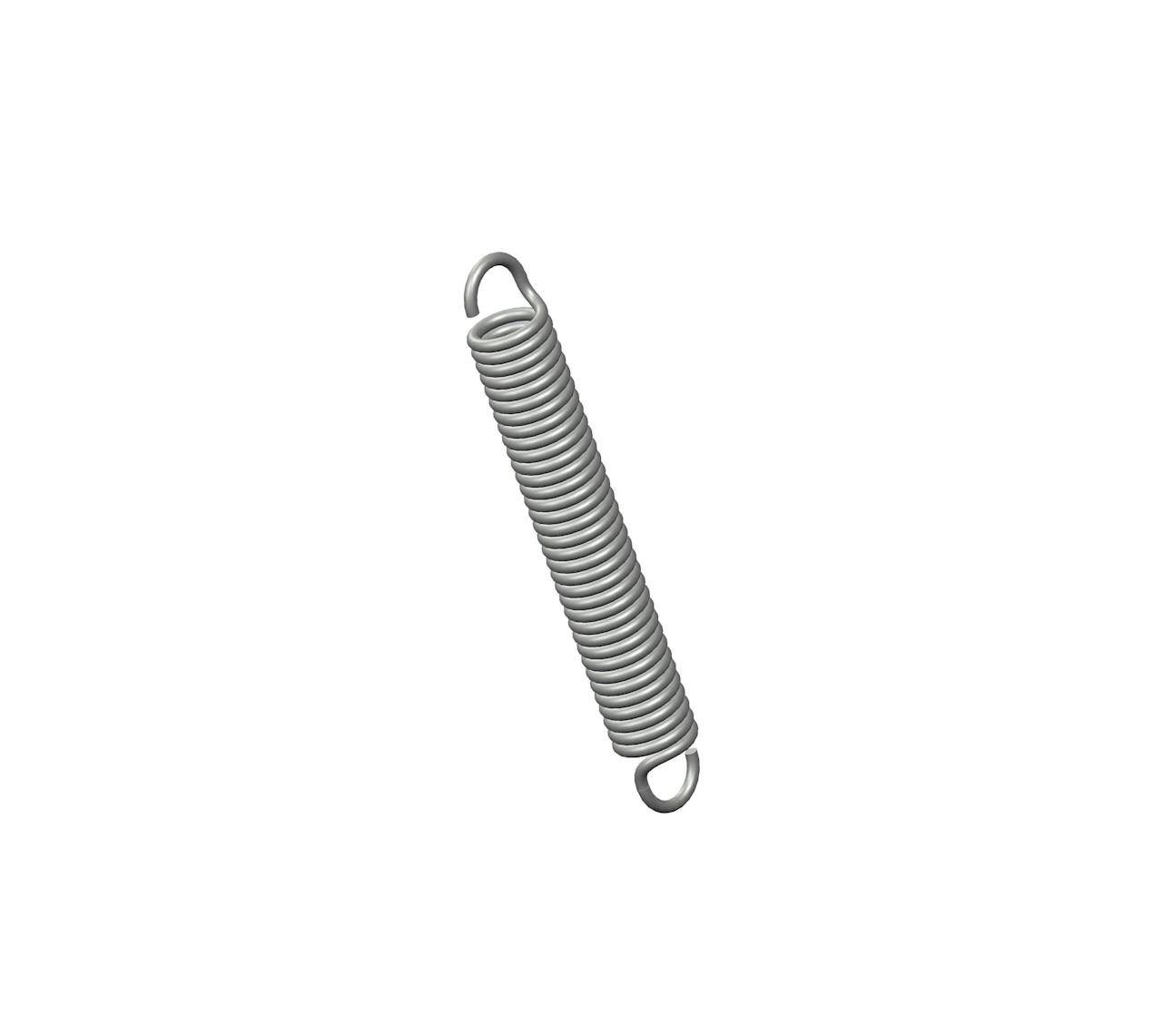

5475CS - 2.88 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.39 Inch and an initial tension of 5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5475
Ends Machine Hook
Finish Zinc
Initial Tension 5 lb
Length 2.88 in
Material Spring Steel
Outside Diameter 0.39 in
Part Type Standard
Rate 17 lbs/in
SKU 5475CS
Sugg Max Deflection 0.97 in
Sugg Max Load 22 lbf
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5475
Ends Machine Hook
Finish Zinc
Initial Tension 2.27 kg
Length 73.15 mm
Material Spring Steel
Outside Diameter 9.91 mm
Part Type Standard
Rate 2.98 N/mm
SKU 5475CS
Sugg Max Deflection 24.64 mm
Sugg Max Load 97.86 N
Wind Direction Left
Wire Diameter 1.59 mm
