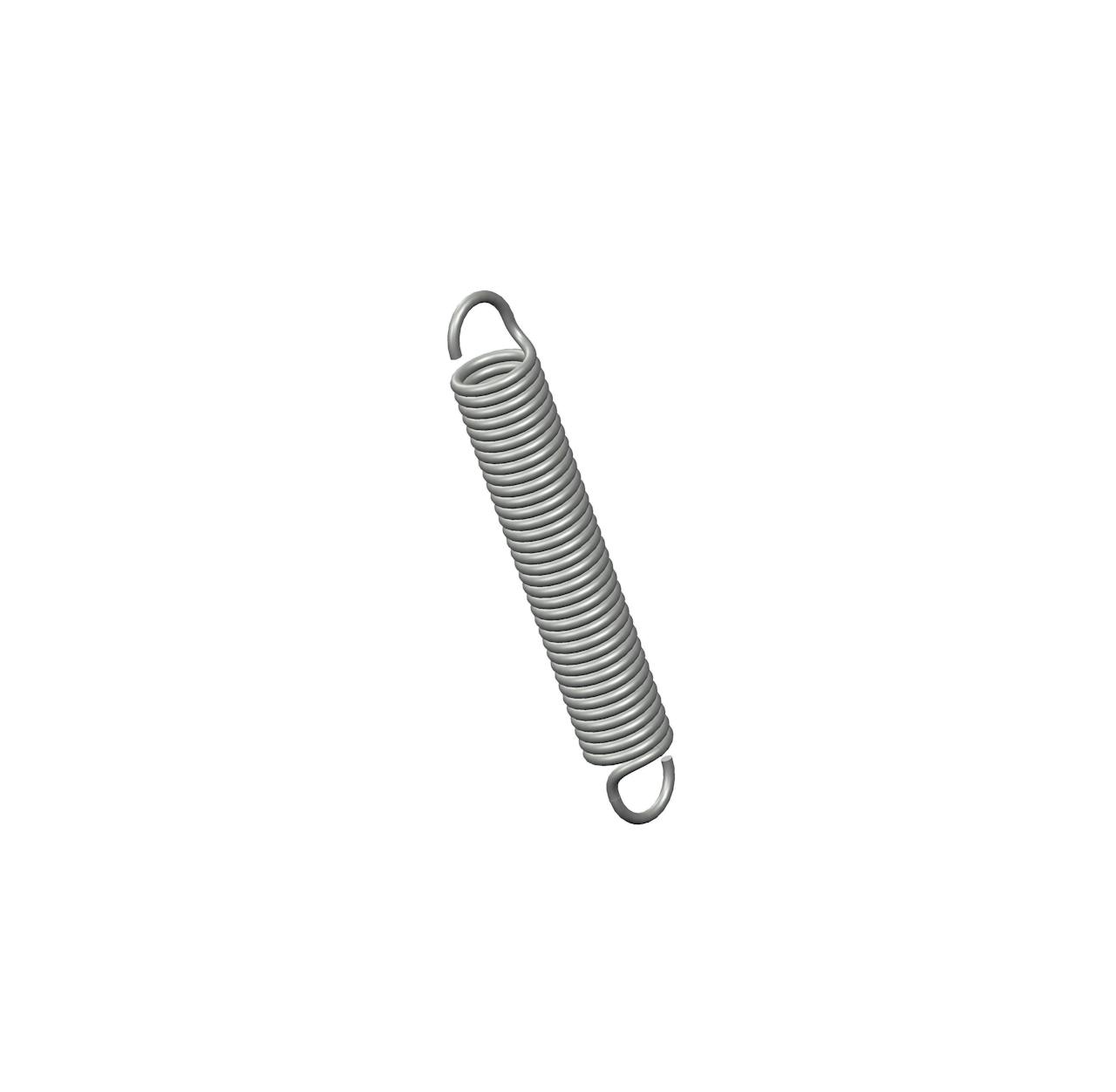

5459CS - 5.81 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.875 Inch and an initial tension of 14 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5459
Ends Machine Hook
Finish Zinc
Initial Tension 14 lb
Length 5.81 in
Material Spring Steel
Outside Diameter 0.875 in
Part Type Standard
Rate 18 lbs/in
SKU 5459CS
Sugg Max Deflection 2.6 in
Sugg Max Load 62 lbf
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5459
Ends Machine Hook
Finish Zinc
Initial Tension 6.35 kg
Length 147.57 mm
Material Spring Steel
Outside Diameter 22.23 mm
Part Type Standard
Rate 3.15 N/mm
SKU 5459CS
Sugg Max Deflection 66.04 mm
Sugg Max Load 275.78 N
Wire Diameter 3.05 mm
