Century Spring

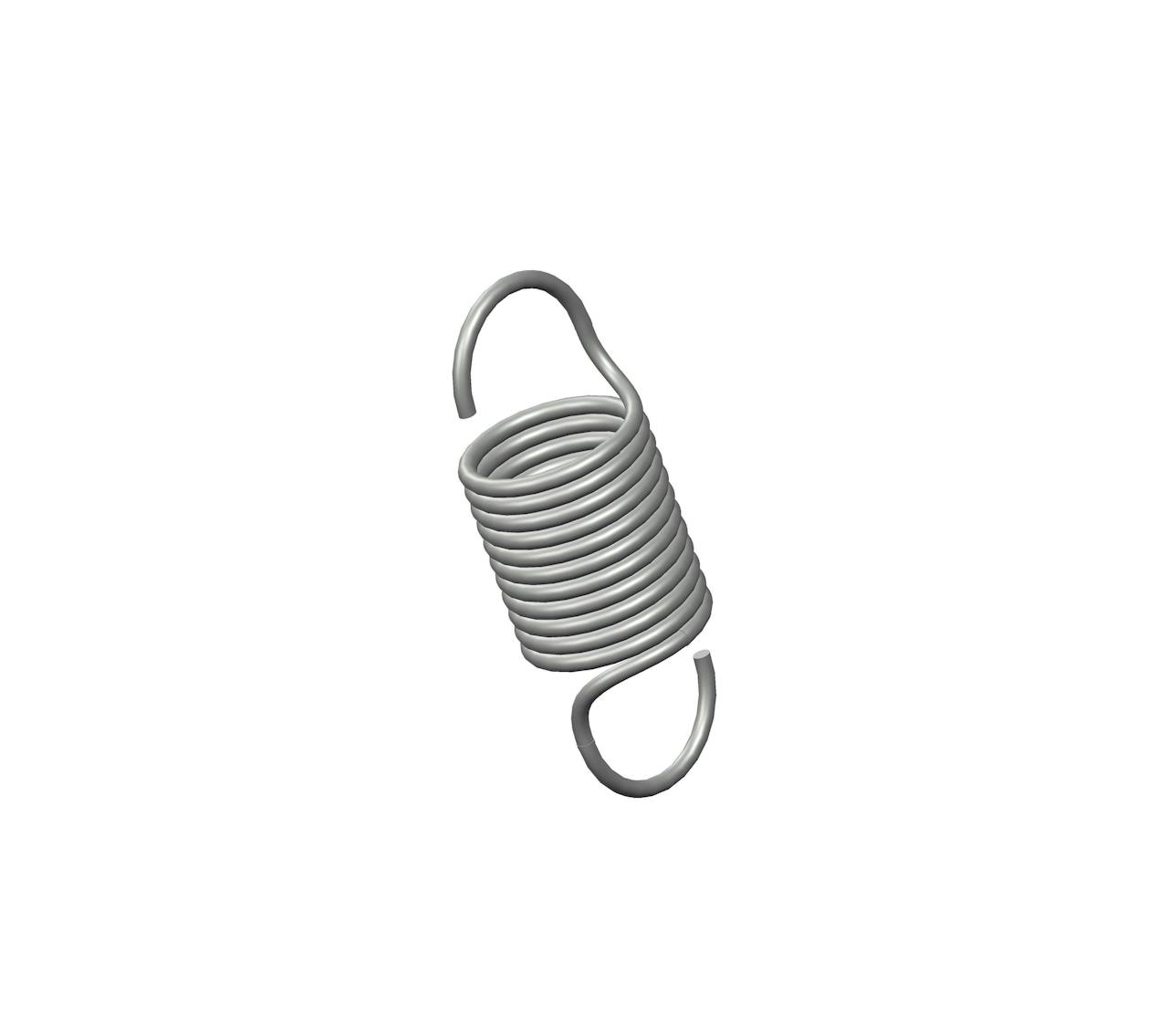

5457CS - 2.28 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5457
Ends Machine Hook
Finish Zinc
Initial Tension 2 lb
Length 2.28 in
Material Spring Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 9.2 lbs/in
SKU 5457CS
Sugg Max Deflection 1.4 in
Sugg Max Load 16 lbf
Wind Direction Left
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5457
Ends Machine Hook
Finish Zinc
Initial Tension 0.91 kg
Length 57.91 mm
Material Spring Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 1.61 N/mm
SKU 5457CS
Sugg Max Deflection 35.56 mm
Sugg Max Load 71.17 N
Wind Direction Left
Wire Diameter 1.83 mm
