Century Spring

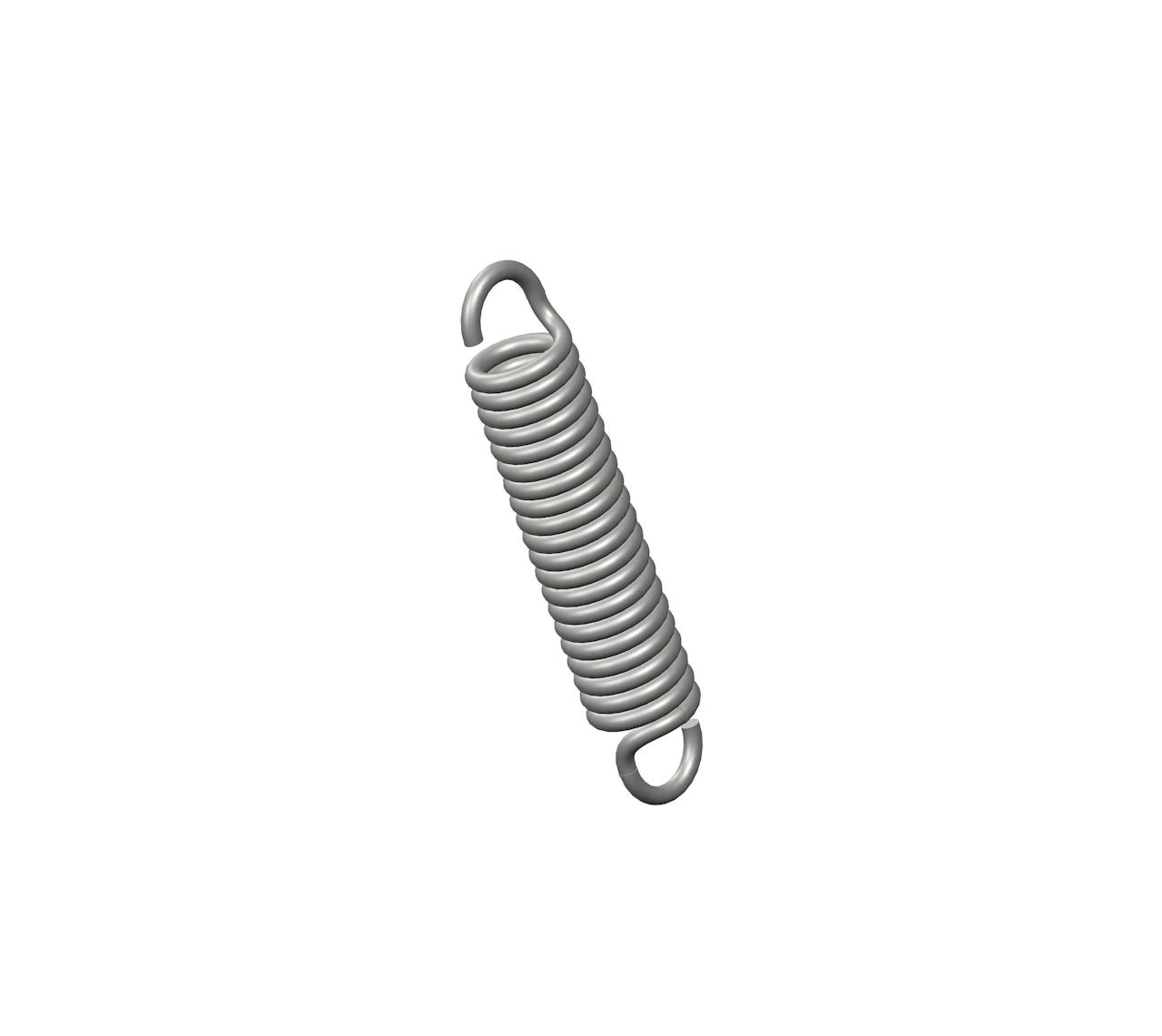

5441CS - 2.78 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.515 Inch and an initial tension of 15 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5441
Ends Machine Hook
Finish Zinc
Initial Tension 15 lb
Length 2.78 in
Material Spring Steel
Outside Diameter 0.515 in
Part Type Standard
Rate 54 lbs/in
SKU 5441CS
Sugg Max Deflection 0.64 in
Sugg Max Load 49 lbf
Wind Direction Left
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5441
Ends Machine Hook
Finish Zinc
Initial Tension 6.8 kg
Length 70.61 mm
Material Spring Steel
Outside Diameter 13.08 mm
Part Type Standard
Rate 9.46 N/mm
SKU 5441CS
Sugg Max Deflection 16.26 mm
Sugg Max Load 217.95 N
Wind Direction Left
Wire Diameter 2.31 mm
