Century Spring

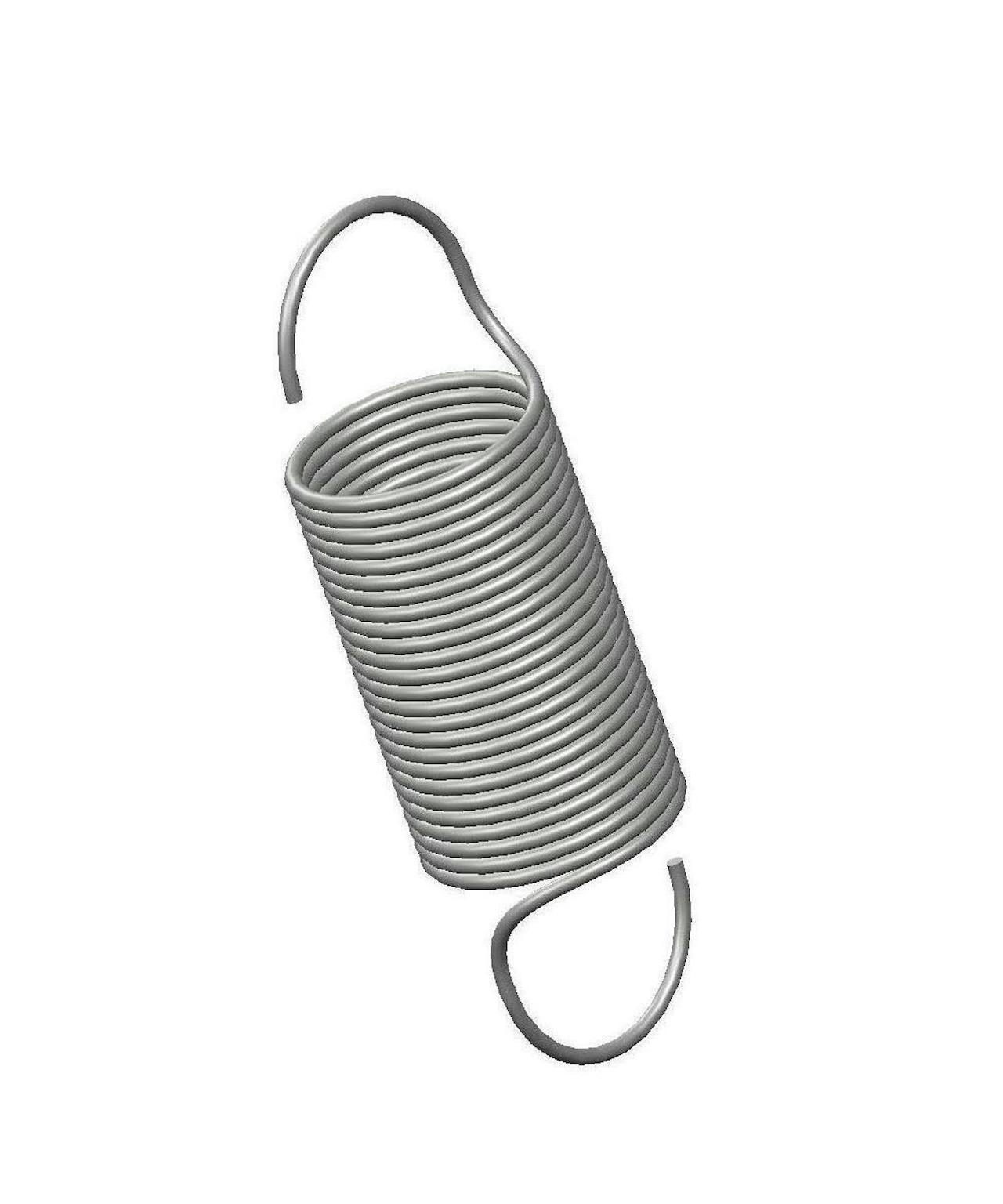

5415CS - 0.56 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.156 Inch and an initial tension of 0.02 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5415
Ends Full Loop
Finish Gold Iridite
Initial Tension 0.02 lb
Length 0.56 in
Material Music Wire
Outside Diameter 0.156 in
Part Type Standard
Rate 0.19 lbs/in
SKU 5415CS
Sugg Max Deflection 1.9 in
Sugg Max Load 0.37 lbf
Wind Direction Left
Wire Diameter 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5415
Ends Full Loop
Finish Gold Iridite
Initial Tension 0.01 kg
Length 14.22 mm
Material Music Wire
Outside Diameter 3.96 mm
Part Type Standard
Rate 0.03 N/mm
SKU 5415CS
Sugg Max Deflection 48.26 mm
Sugg Max Load 1.65 N
Wind Direction Left
Wire Diameter 0.25 mm
