Century Spring

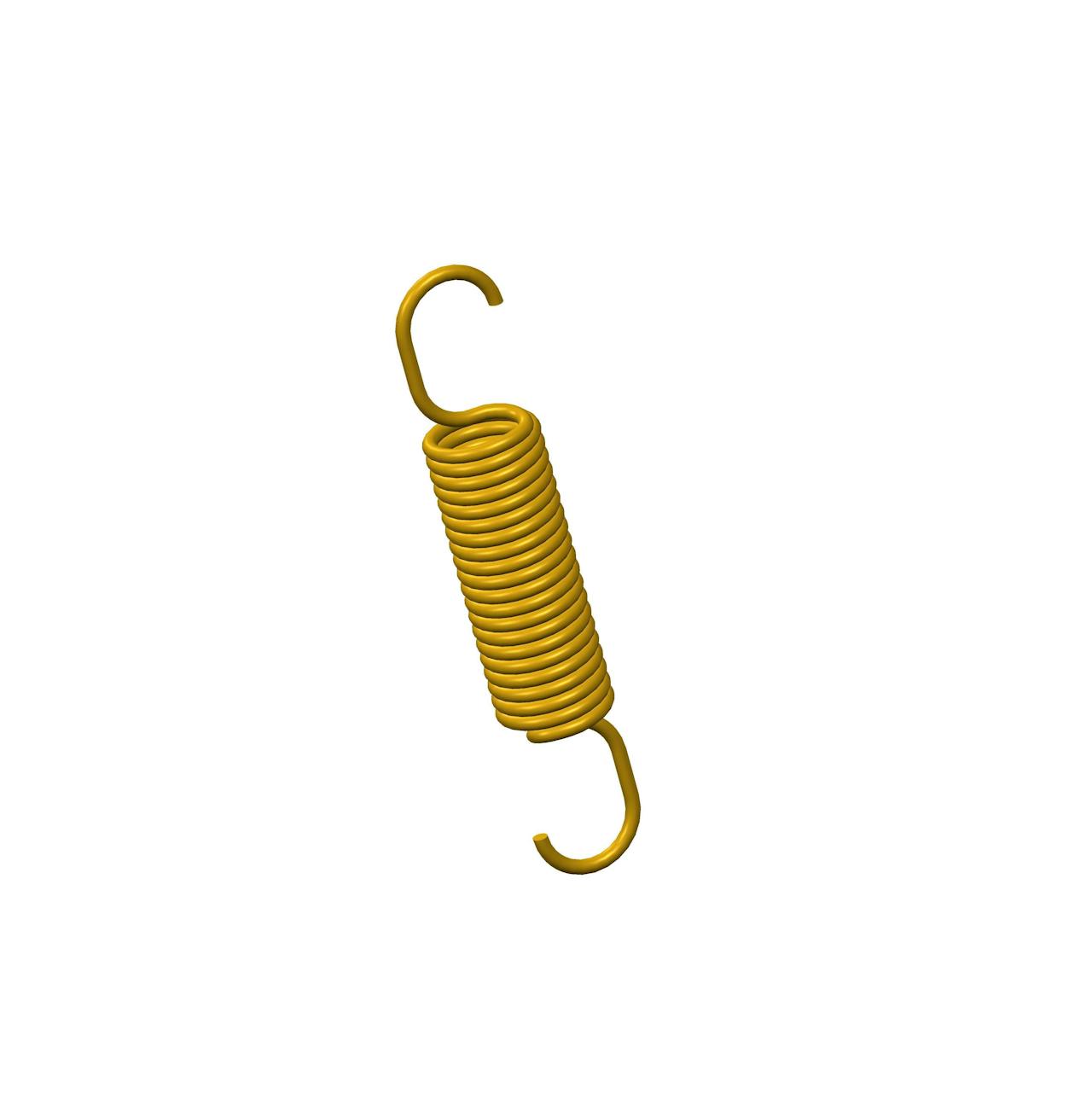

5399CS - 1.13 Inch Phosphor Bronze Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Phosphor Bronze. This spring features an O.D. of 0.25 Inch and an initial tension of 0.5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5399
Ends Extended Hook
Finish None
Initial Tension 0.5 lb
Length 1.13 in
Material Phosphor Bronze
Outside Diameter 0.25 in
Part Type Standard
Rate 4.7 lbs/in
SKU 5399CS
Sugg Max Deflection 0.87 in
Sugg Max Load 4.6 lbf
Wind Direction Left
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5399
Ends Extended Hook
Finish None
Initial Tension 0.23 kg
Length 28.7 mm
Material Phosphor Bronze
Outside Diameter 6.35 mm
Part Type Standard
Rate 0.82 N/mm
SKU 5399CS
Sugg Max Deflection 22.1 mm
Sugg Max Load 20.46 N
Wind Direction Left
Wire Diameter 0.81 mm
