Century Spring

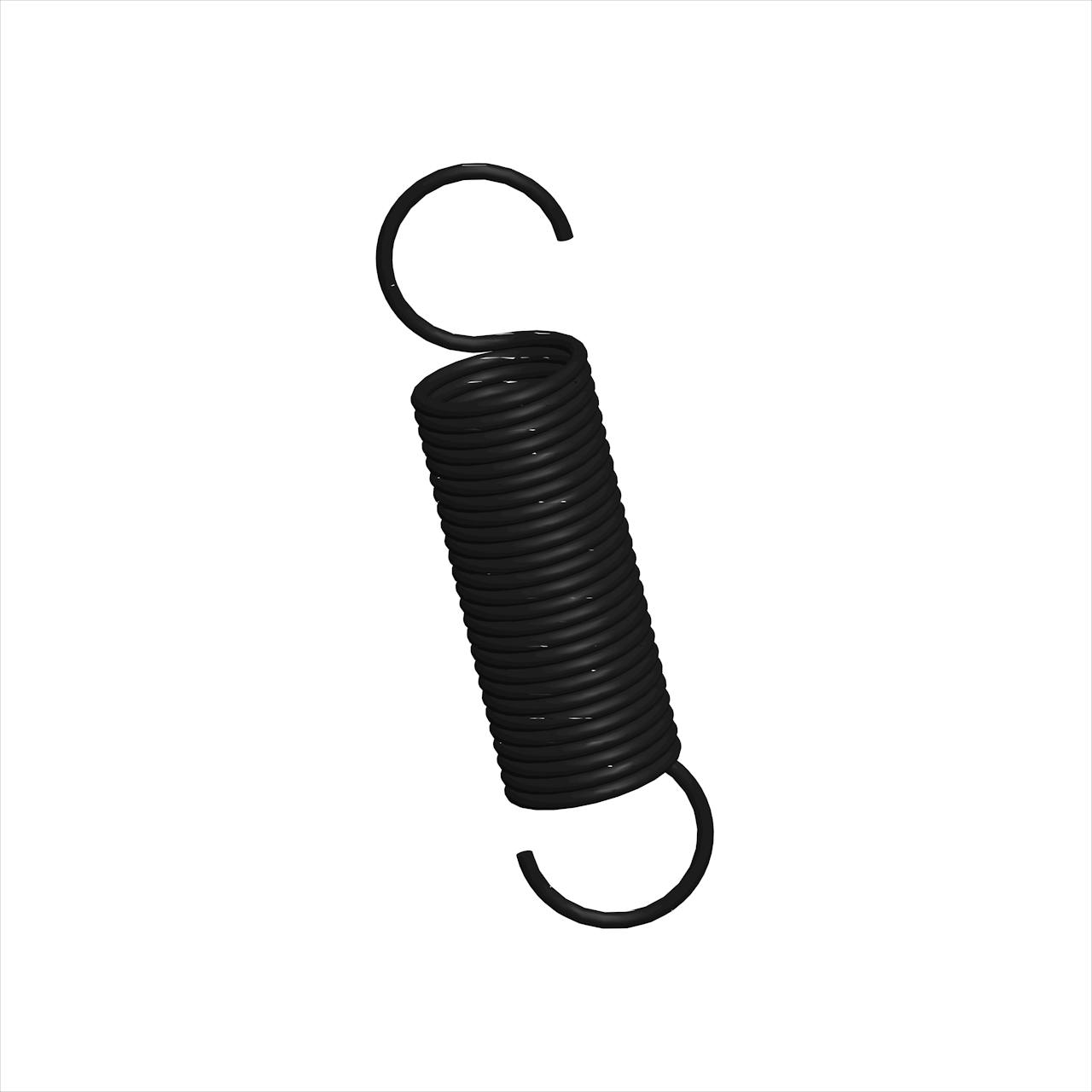

5376CS - 0.47 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.109 Inch and an initial tension of 0.04 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5376
Ends Side Hook
Finish Zinc
Initial Tension 0.04 lb
Length 0.47 in
Material Music Wire
Outside Diameter 0.109 in
Part Type Standard
Rate 0.62 lbs/in
SKU 5376CS
Sugg Max Deflection 0.79 in
Sugg Max Load 0.53 lbf
Wind Direction Left
Wire Diameter 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5376
Ends Side Hook
Finish Zinc
Initial Tension 0.02 kg
Length 11.94 mm
Material Music Wire
Outside Diameter 2.77 mm
Part Type Standard
Rate 0.11 N/mm
SKU 5376CS
Sugg Max Deflection 20.07 mm
Sugg Max Load 2.36 N
Wind Direction Left
Wire Diameter 0.25 mm
