Century Spring

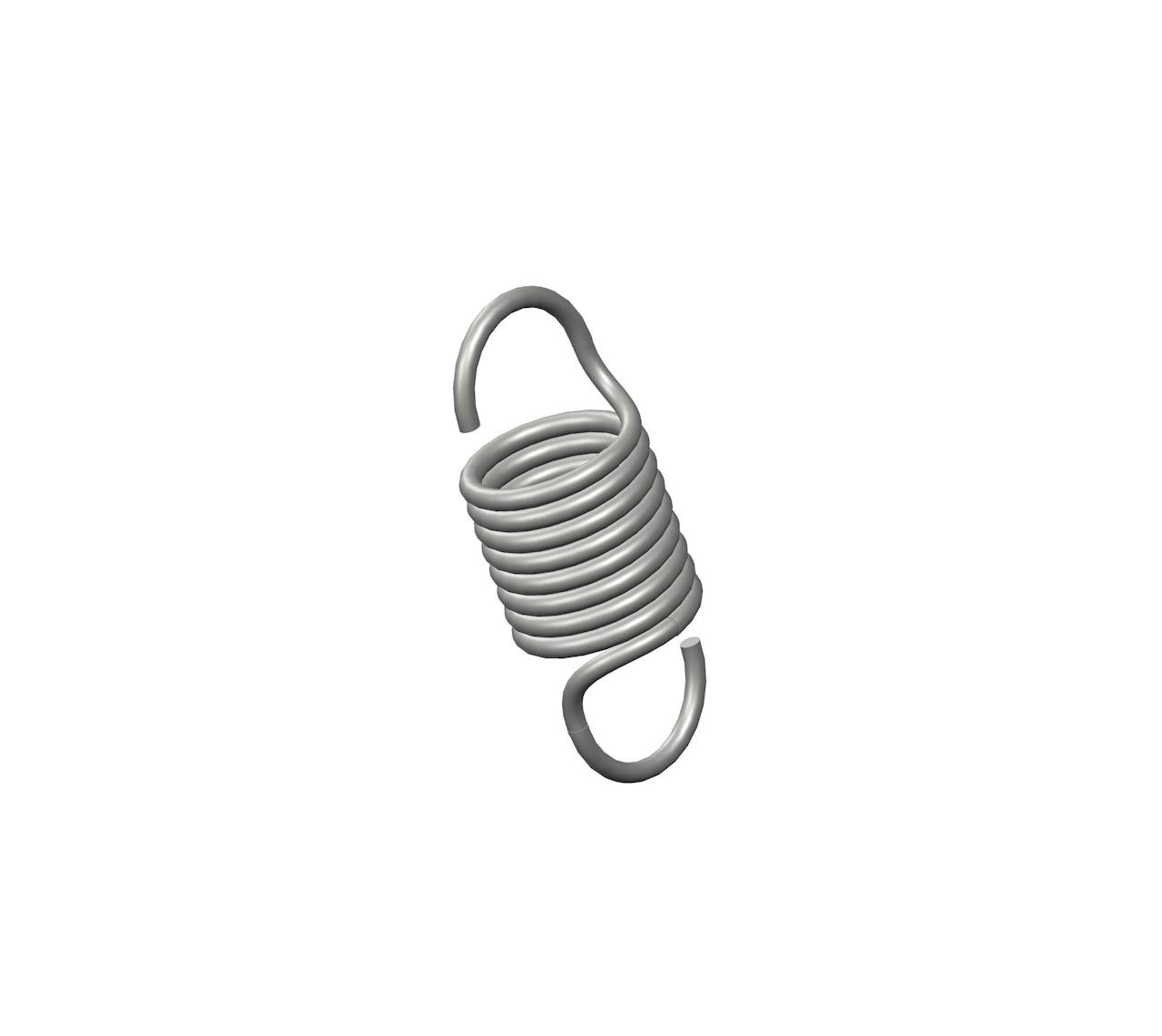

5369CS - 1.81 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.625 Inch and an initial tension of 3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5369
Ends Machine Hook
Finish Zinc
Initial Tension 3 lb
Length 1.81 in
Material Spring Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 22 lbs/in
SKU 5369CS
Sugg Max Deflection 0.72 in
Sugg Max Load 19 lbf
Wind Direction Left
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5369
Ends Machine Hook
Finish Zinc
Initial Tension 1.36 kg
Length 45.97 mm
Material Spring Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 3.85 N/mm
SKU 5369CS
Sugg Max Deflection 18.29 mm
Sugg Max Load 84.51 N
Wind Direction Left
Wire Diameter 1.83 mm
