Century Spring

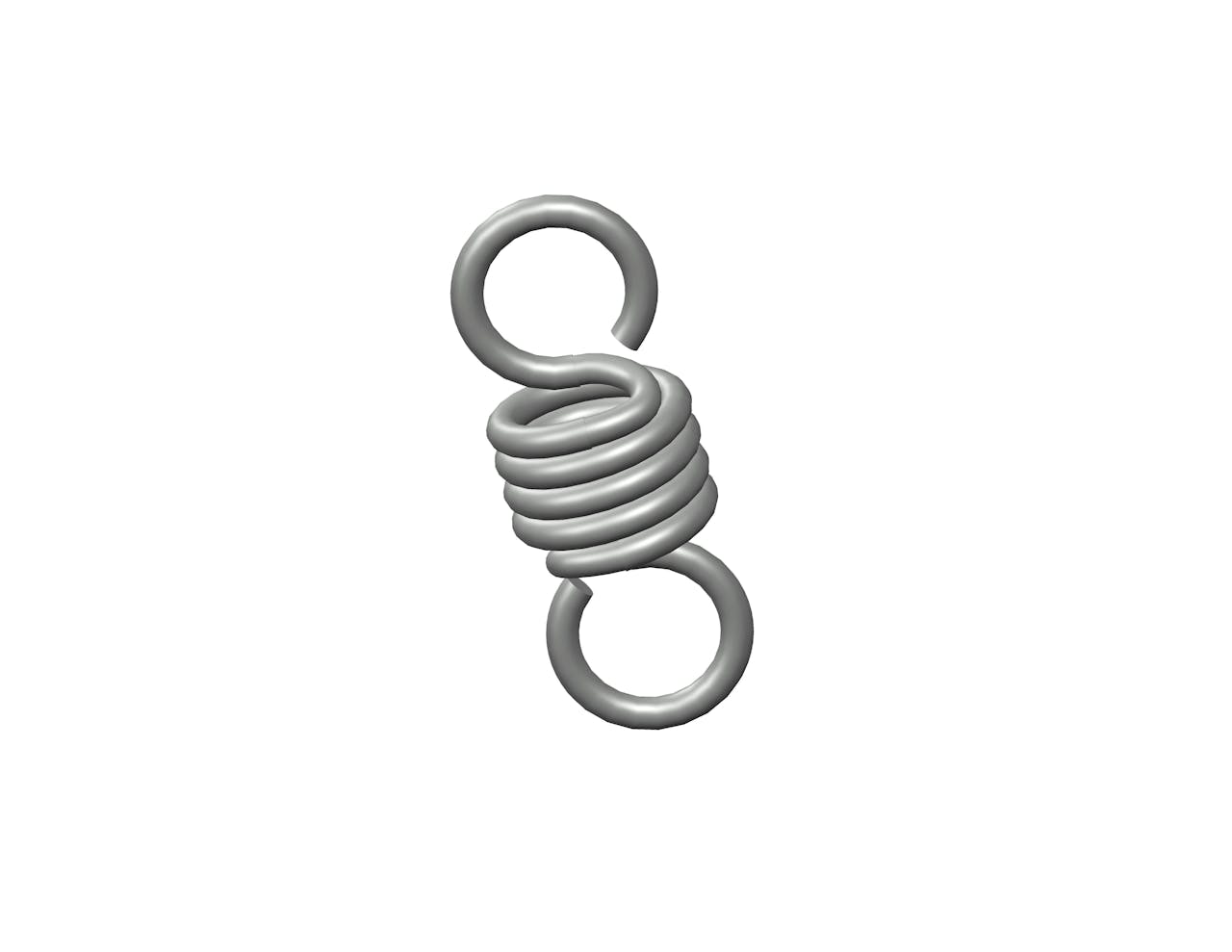

5367CS - 1.25 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5367
Ends Full Loop
Finish Zinc
Initial Tension 9 lb
Length 1.25 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 99 lbs/in
SKU 5367CS
Sugg Max Deflection 0.26 in
Sugg Max Load 35 lbf
Wind Direction Left
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5367
Ends Full Loop
Finish Zinc
Initial Tension 4.08 kg
Length 31.75 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 17.33 N/mm
SKU 5367CS
Sugg Max Deflection 6.6 mm
Sugg Max Load 155.68 N
Wind Direction Left
Wire Diameter 2.03 mm
