Century Spring

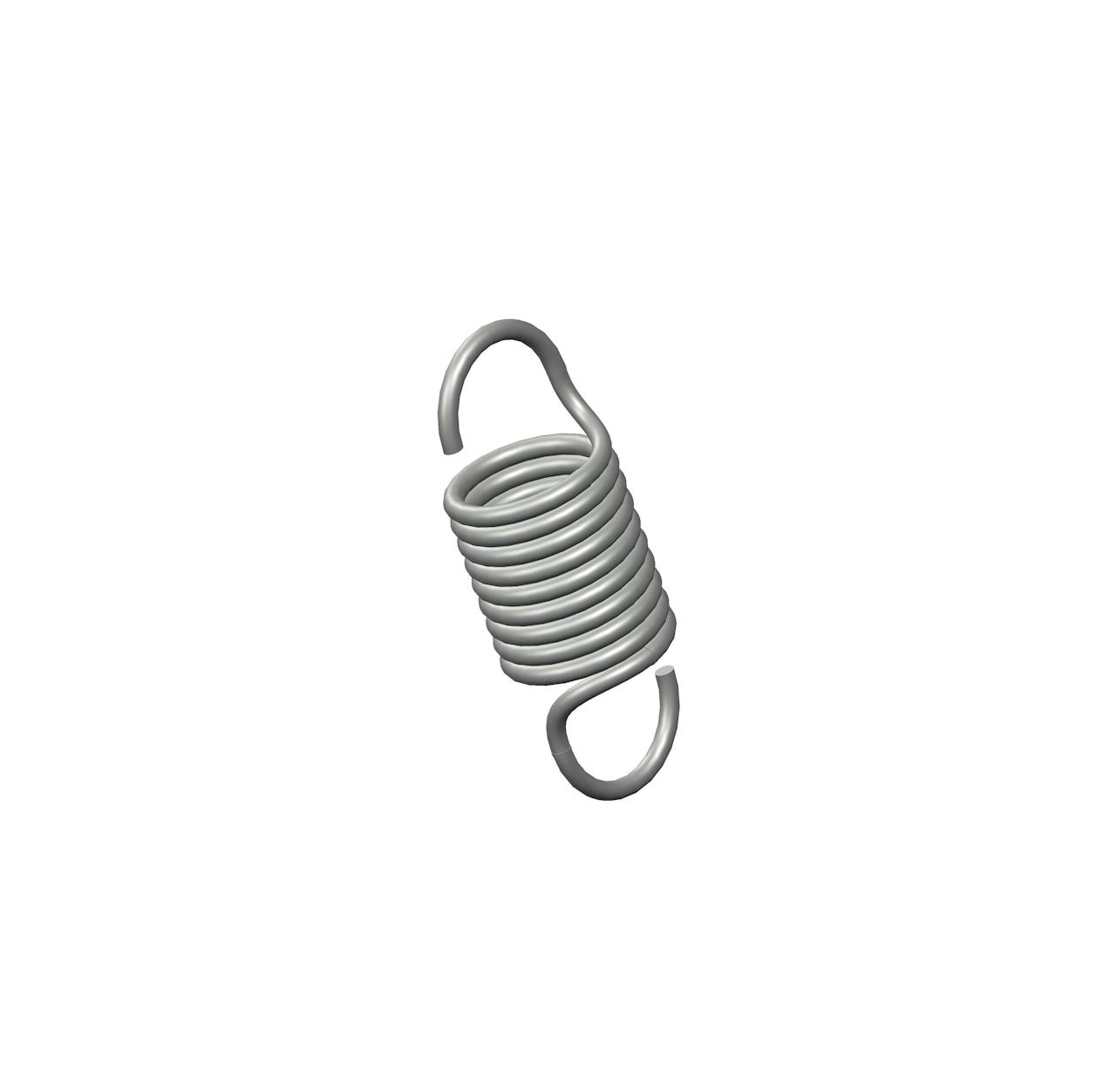

5358CS - 2.56 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.843 Inch and an initial tension of 7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5358
Ends Machine Hook
Finish Zinc
Initial Tension 7 lb
Length 2.56 in
Material Spring Steel
Outside Diameter 0.843 in
Part Type Standard
Rate 29 lbs/in
SKU 5358CS
Sugg Max Deflection 1 in
Sugg Max Load 37 lbf
Wind Direction Left
Wire Diameter 0.1 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5358
Ends Machine Hook
Finish Zinc
Initial Tension 3.17 kg
Length 65.02 mm
Material Spring Steel
Outside Diameter 21.41 mm
Part Type Standard
Rate 5.08 N/mm
SKU 5358CS
Sugg Max Deflection 25.4 mm
Sugg Max Load 164.58 N
Wind Direction Left
Wire Diameter 2.54 mm
