Century Spring

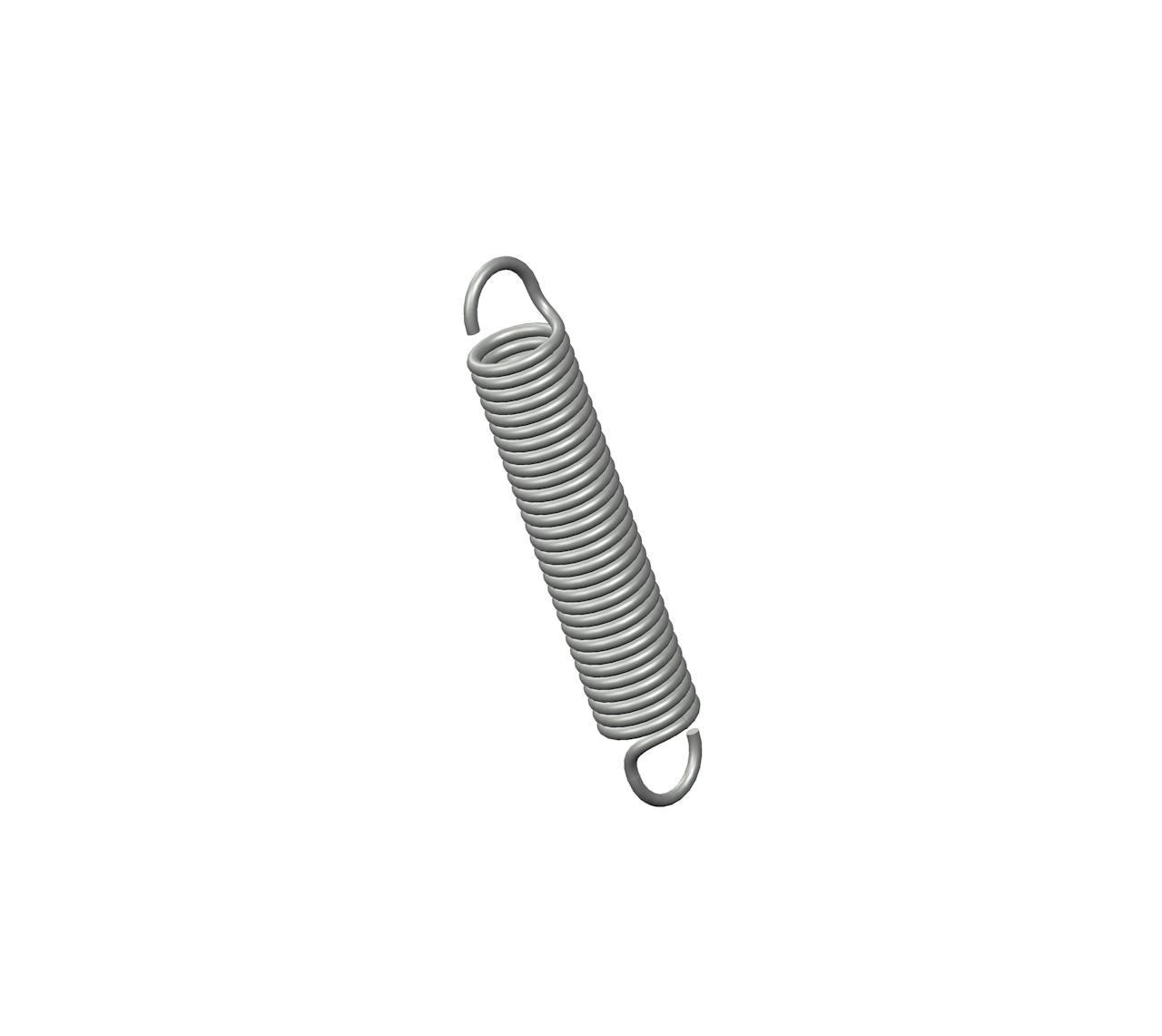

5324CS - 3.56 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.593 Inch and an initial tension of 6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5324
Ends Machine Hook
Finish Zinc
Initial Tension 6 lb
Length 3.56 in
Material Spring Steel
Outside Diameter 0.593 in
Part Type Standard
Rate 12 lbs/in
SKU 5324CS
Sugg Max Deflection 1.9 in
Sugg Max Load 29 lbf
Wind Direction Left
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5324
Ends Machine Hook
Finish Zinc
Initial Tension 2.72 kg
Length 90.42 mm
Material Spring Steel
Outside Diameter 15.06 mm
Part Type Standard
Rate 2.1 N/mm
SKU 5324CS
Sugg Max Deflection 48.26 mm
Sugg Max Load 128.99 N
Wind Direction Left
Wire Diameter 2.03 mm
