Century Spring

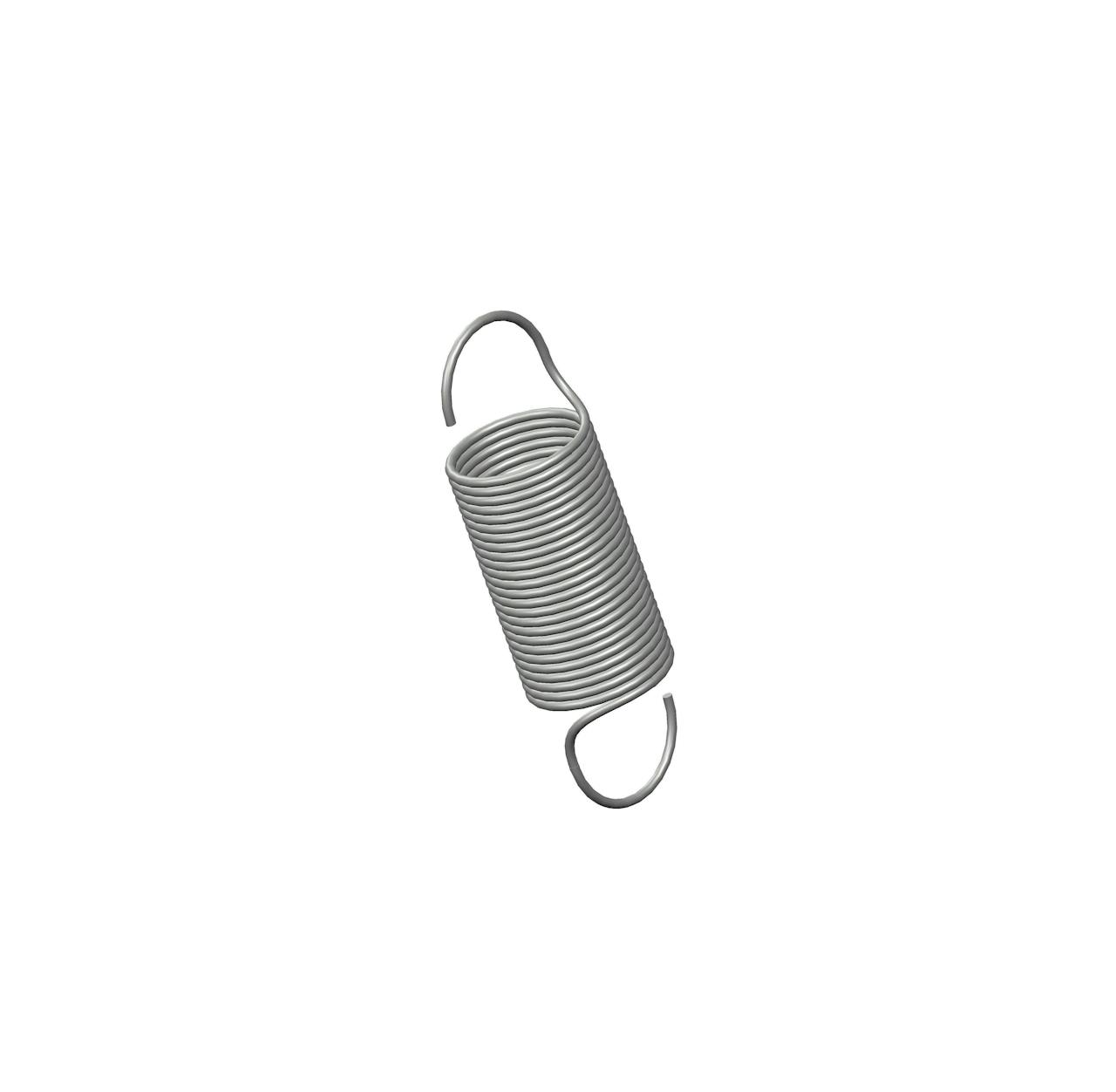

5307CS - 2.88 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.781 Inch and an initial tension of 0.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5307
Ends Extended Hook
Finish None
Initial Tension 0.6 lb
Length 2.88 in
Material Spring Steel
Outside Diameter 0.781 in
Part Type Standard
Rate 1.6 lbs/in
SKU 5307CS
Sugg Max Deflection 3.7 in
Sugg Max Load 6.5 lbf
Wind Direction Left
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5307
Ends Extended Hook
Finish None
Initial Tension 0.27 kg
Length 73.15 mm
Material Spring Steel
Outside Diameter 19.84 mm
Part Type Standard
Rate 0.28 N/mm
SKU 5307CS
Sugg Max Deflection 93.98 mm
Sugg Max Load 28.91 N
Wind Direction Left
Wire Diameter 1.37 mm
