Century Spring

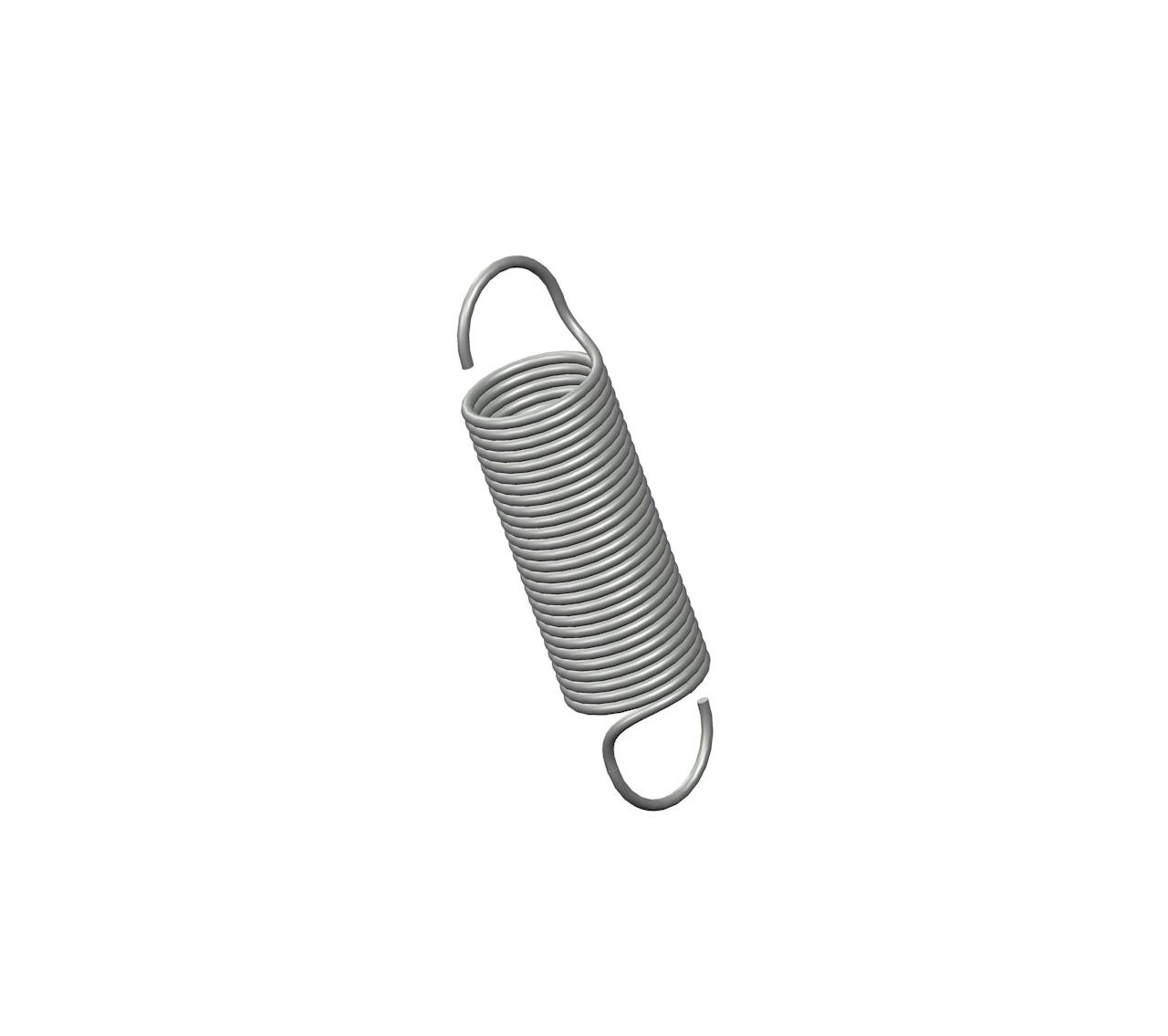

5296CS - 2.75 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.656 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5296
Ends Machine Hook
Finish Zinc
Initial Tension 1 lb
Length 2.75 in
Material Spring Steel
Outside Diameter 0.656 in
Part Type Standard
Rate 2.1 lbs/in
SKU 5296CS
Sugg Max Deflection 3.6 in
Sugg Max Load 8.3 lbf
Wind Direction Left
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5296
Ends Machine Hook
Finish Zinc
Initial Tension 0.45 kg
Length 69.85 mm
Material Spring Steel
Outside Diameter 16.66 mm
Part Type Standard
Rate 0.37 N/mm
SKU 5296CS
Sugg Max Deflection 91.44 mm
Sugg Max Load 36.92 N
Wind Direction Left
Wire Diameter 1.4 mm
