Century Spring

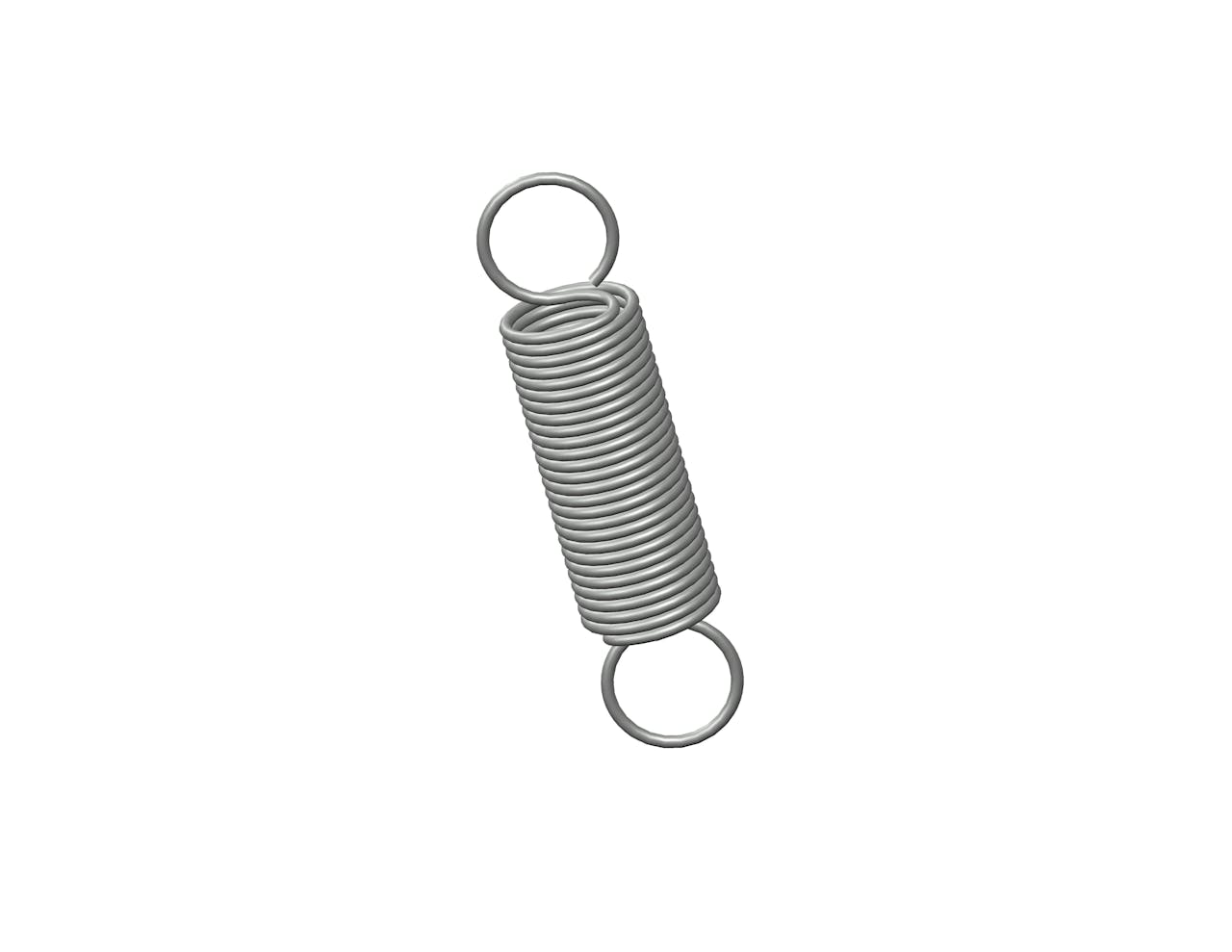

5288CS - 2.13 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 0.9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5288
Ends Machine Hook
Finish Gold Iridite
Initial Tension 0.9 lb
Length 2.13 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 2.2 lbs/in
SKU 5288CS
Sugg Max Deflection 2.5 in
Sugg Max Load 6.4 lbf
Wind Direction Left
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5288
Ends Machine Hook
Finish Gold Iridite
Initial Tension 0.41 kg
Length 54.1 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.39 N/mm
SKU 5288CS
Sugg Max Deflection 63.5 mm
Sugg Max Load 28.47 N
Wind Direction Left
Wire Diameter 1.14 mm
