Shop Online > Springs > Extension > Regular

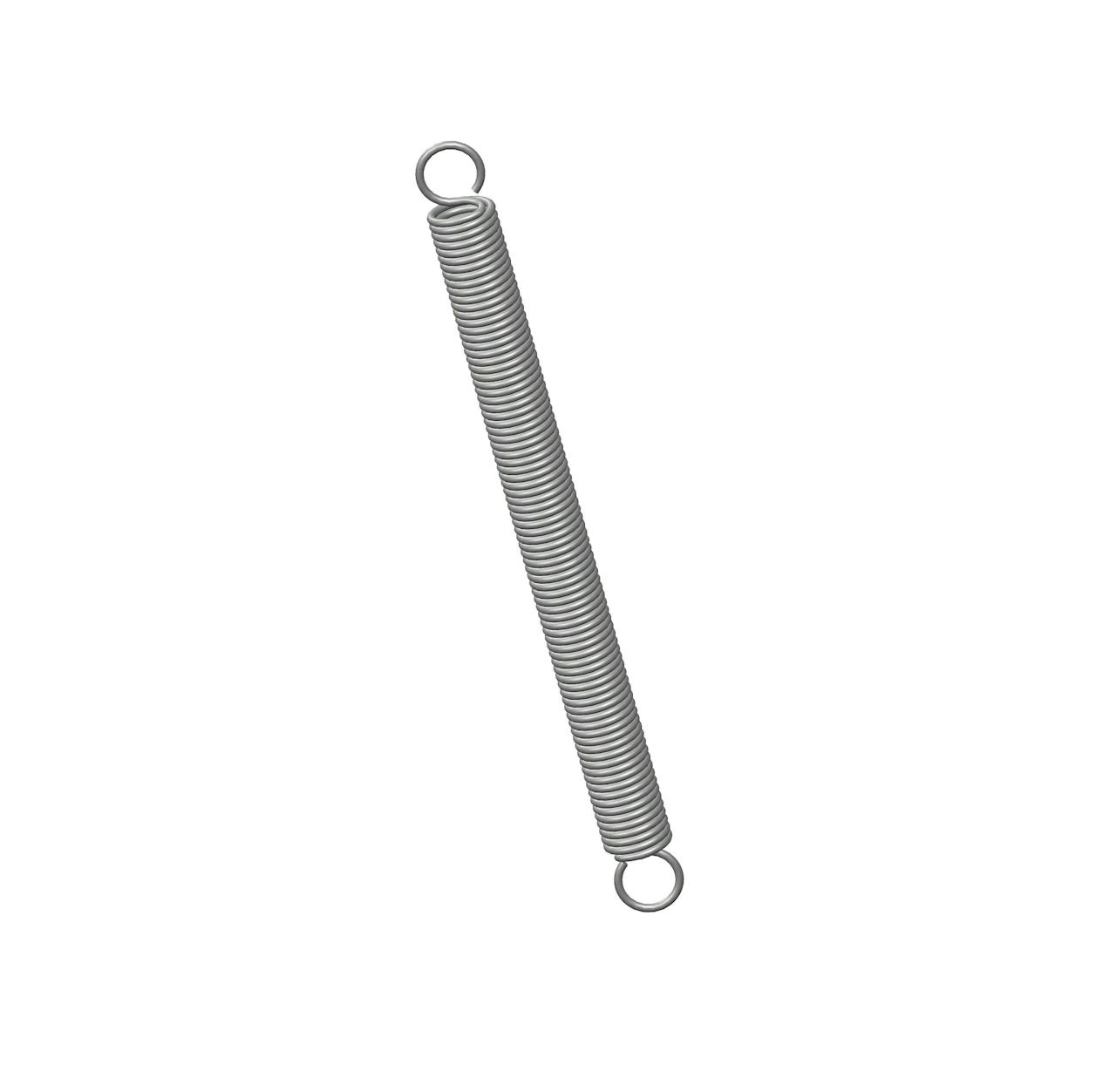

5256CS - 2.25 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 0.188 Inch and an initial tension of 0.4 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 5256 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 0.4 lb |
| Length | 2.25 in |
| Material | Music Wire |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 1.1 lbs/in |
| SKU | 5256CS |
| Sugg Max Deflection | 2.8 in |
| Sugg Max Load | 3.5 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.023 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 5256 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 0.18 kg |
| Length | 57.15 mm |
| Material | Music Wire |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 0.19 N/mm |
| SKU | 5256CS |
| Sugg Max Deflection | 71.12 mm |
| Sugg Max Load | 15.57 N |
| Wind Direction | Left |
| Wire Diameter | 0.58 mm |
