Century Spring

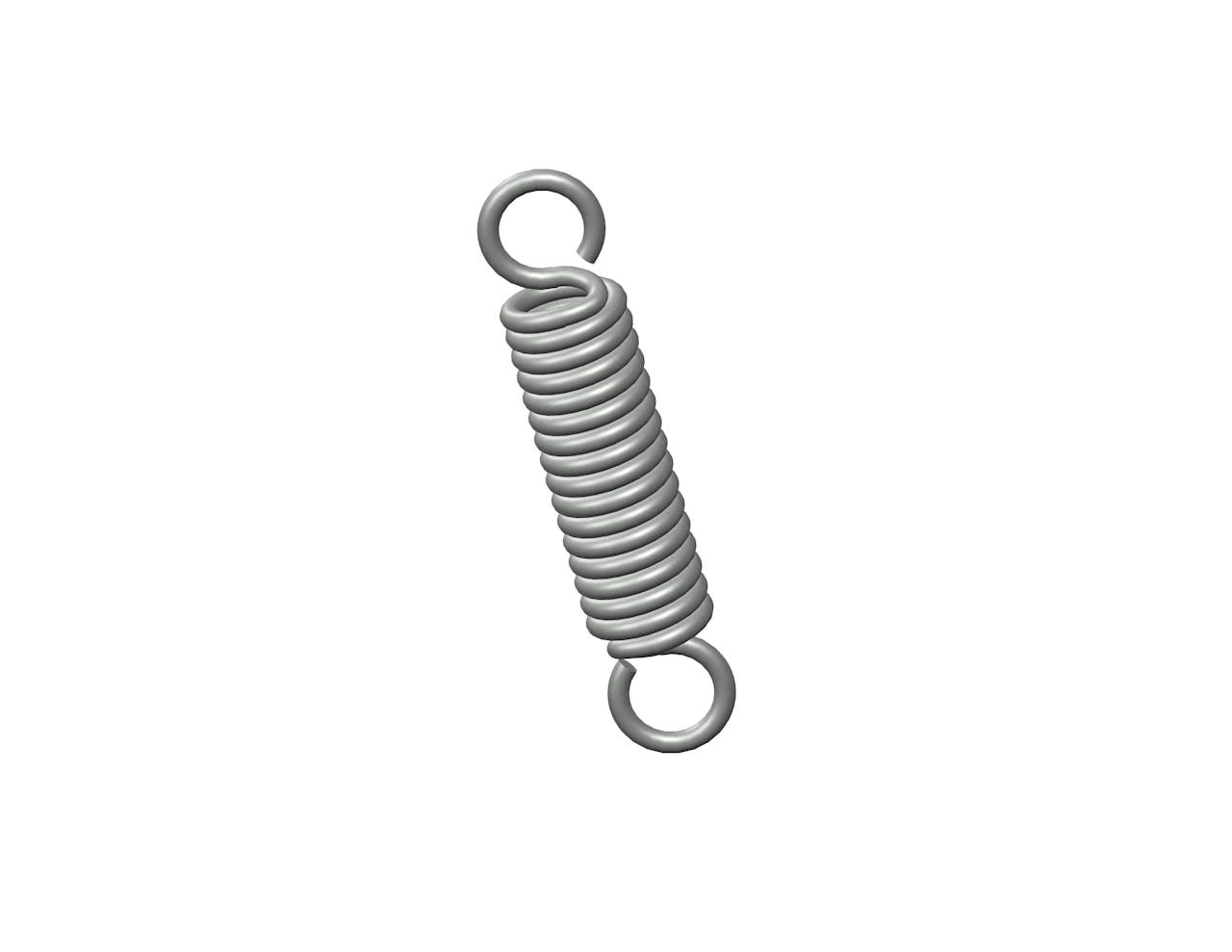

5240CS - 1.75 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.375 Inch and an initial tension of 7 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5240
Ends Machine Hook
Finish Zinc
Initial Tension 7 lb
Length 1.75 in
Material Spring Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 42 lbs/in
SKU 5240CS
Sugg Max Deflection 0.44 in
Sugg Max Load 25 lbf
Wind Direction Left
Wire Diameter 0.064 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5240
Ends Machine Hook
Finish Zinc
Initial Tension 3.17 kg
Length 44.45 mm
Material Spring Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 7.35 N/mm
SKU 5240CS
Sugg Max Deflection 11.18 mm
Sugg Max Load 111.2 N
Wind Direction Left
Wire Diameter 1.63 mm
