Century Spring

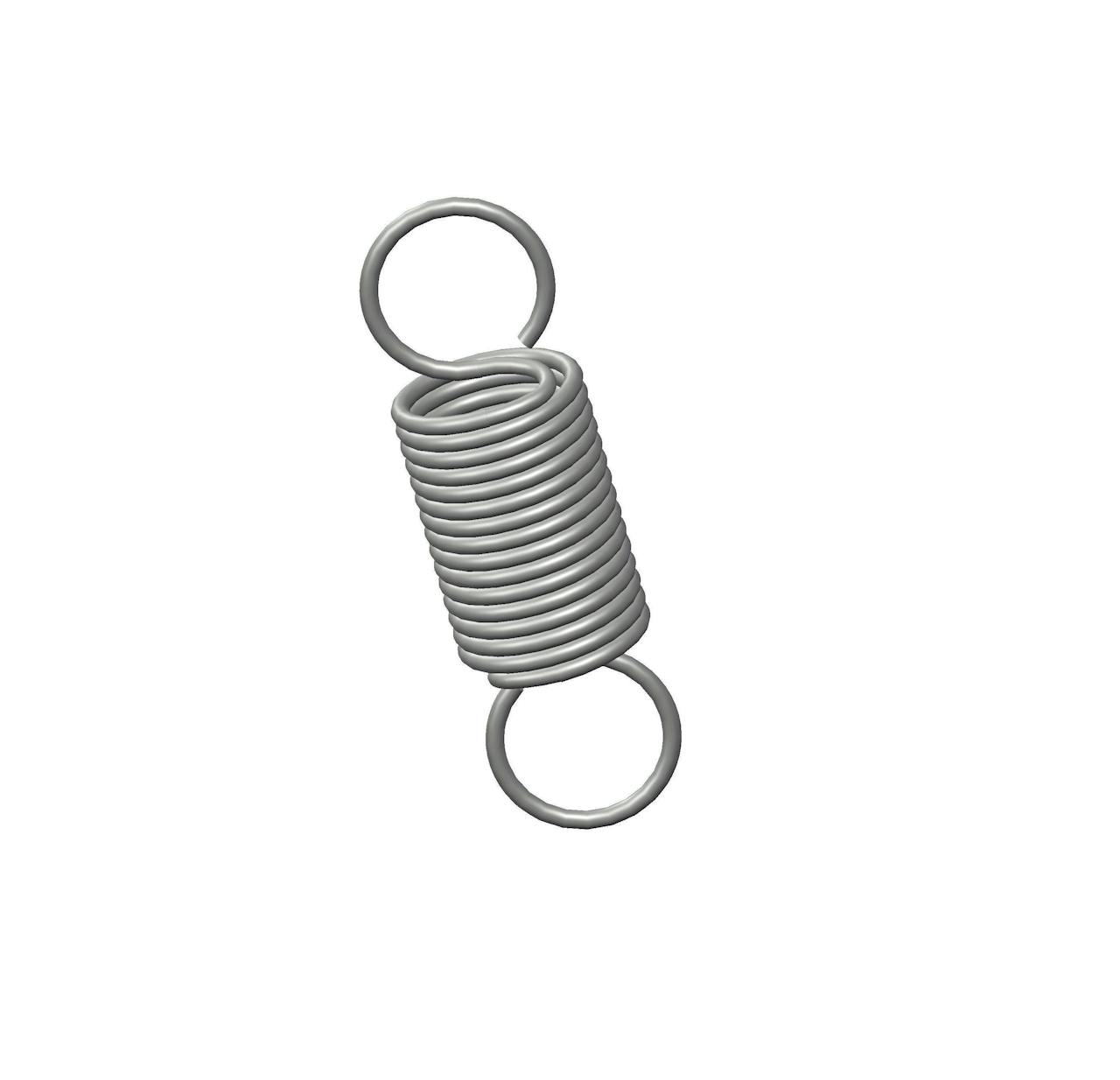

5179CS - 0.63 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.188 Inch and an initial tension of 0.1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5179
Ends Machine Hook
Finish Zinc
Initial Tension 0.1 lb
Length 0.63 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 1.7 lbs/in
SKU 5179CS
Sugg Max Deflection 0.89 in
Sugg Max Load 1.6 lbf
Wind Direction Left
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5179
Ends Machine Hook
Finish Zinc
Initial Tension 0.05 kg
Length 16 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.3 N/mm
SKU 5179CS
Sugg Max Deflection 22.61 mm
Sugg Max Load 7.12 N
Wind Direction Left
Wire Diameter 0.46 mm
